Custom Vacuum Lifter for Safe and Efficient Sheet Metal Handling
When a manufacturing customer in the marine industry approached Packline looking for a reliable vacuum lifting solution for handling large sheet metal components, the requirement was clear: improve safety, increase efficiency, and provide maximum flexibility when lifting both full sheets and partially laser-cut materials.
Packline designed and supplied a fully bespoke vacuum lifter tailored precisely to the customer’s operational needs, integrating seamlessly with their existing swing crane system while delivering enhanced ergonomics, operator safety, and productivity.
The Customer Requirement
The customer required a vacuum lifting system capable of handling:
The customer also requested guidance on whether a battery-powered vacuum lifting system could eliminate the need for retrofitted power cables to the crane infrastructure.
The Packline Solution
Packline supplied a bespoke battery-powered vacuum lifting system specifically engineered for sheet metal handling applications.

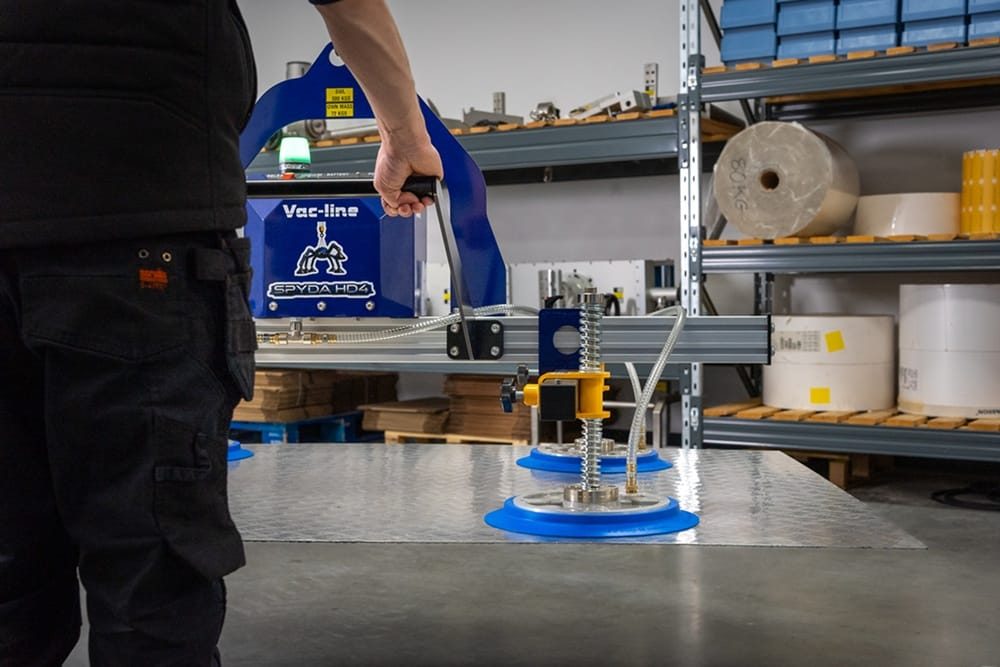

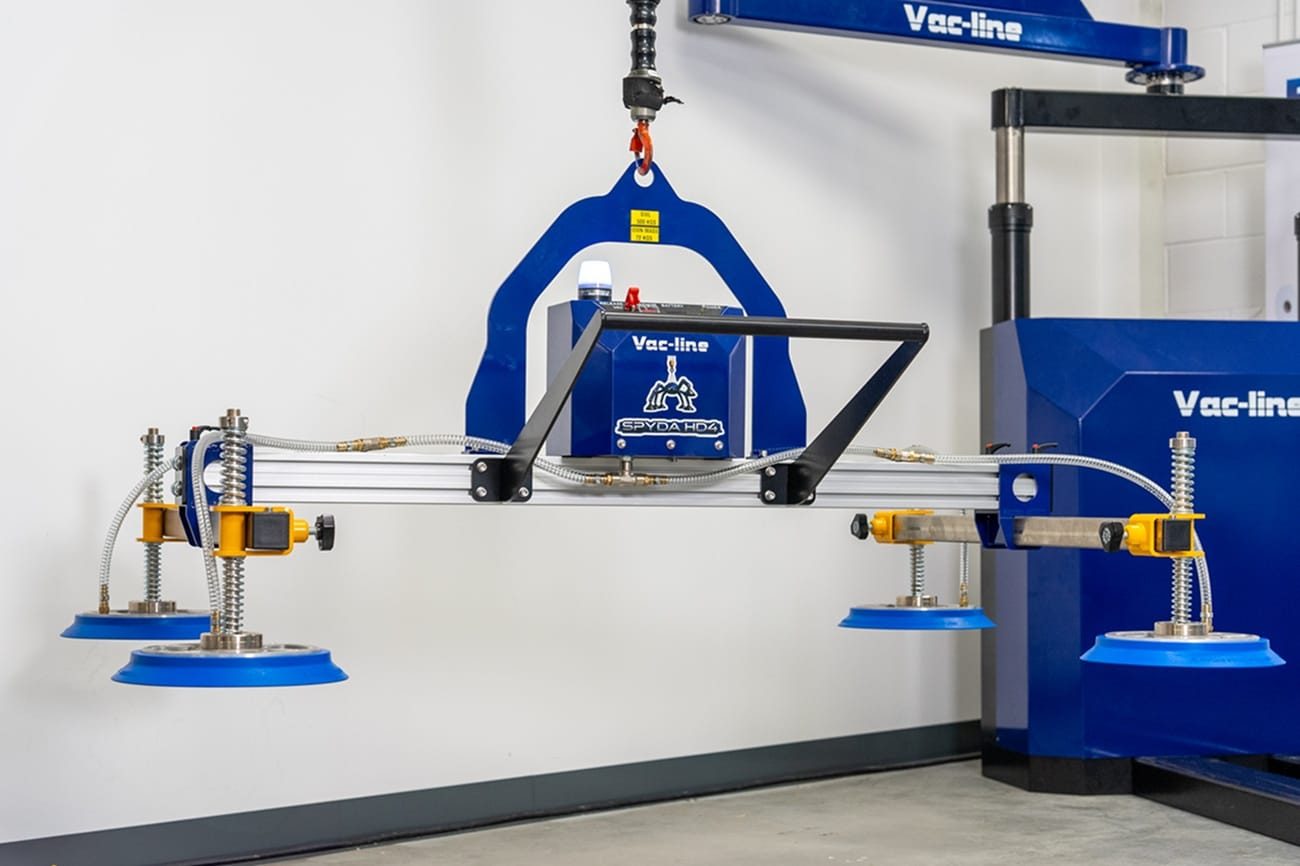

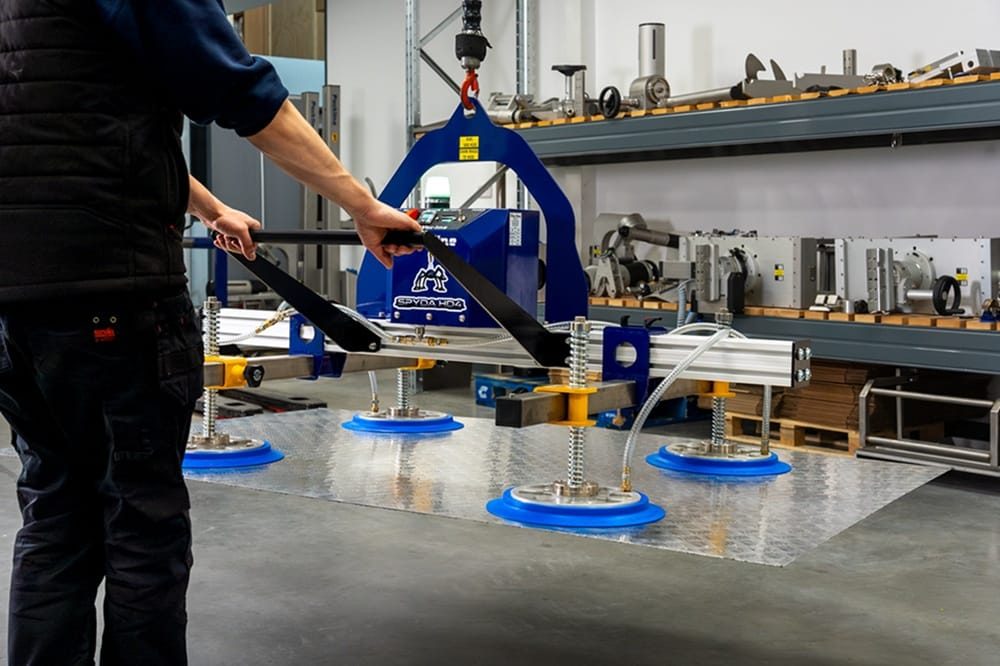

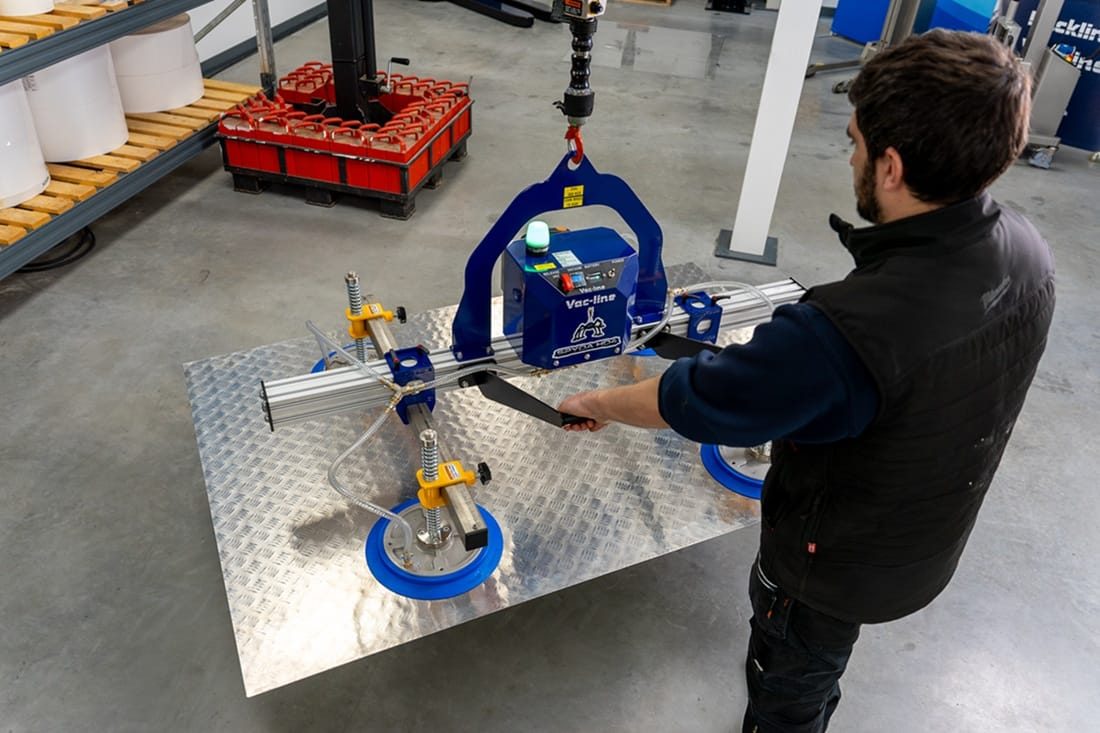

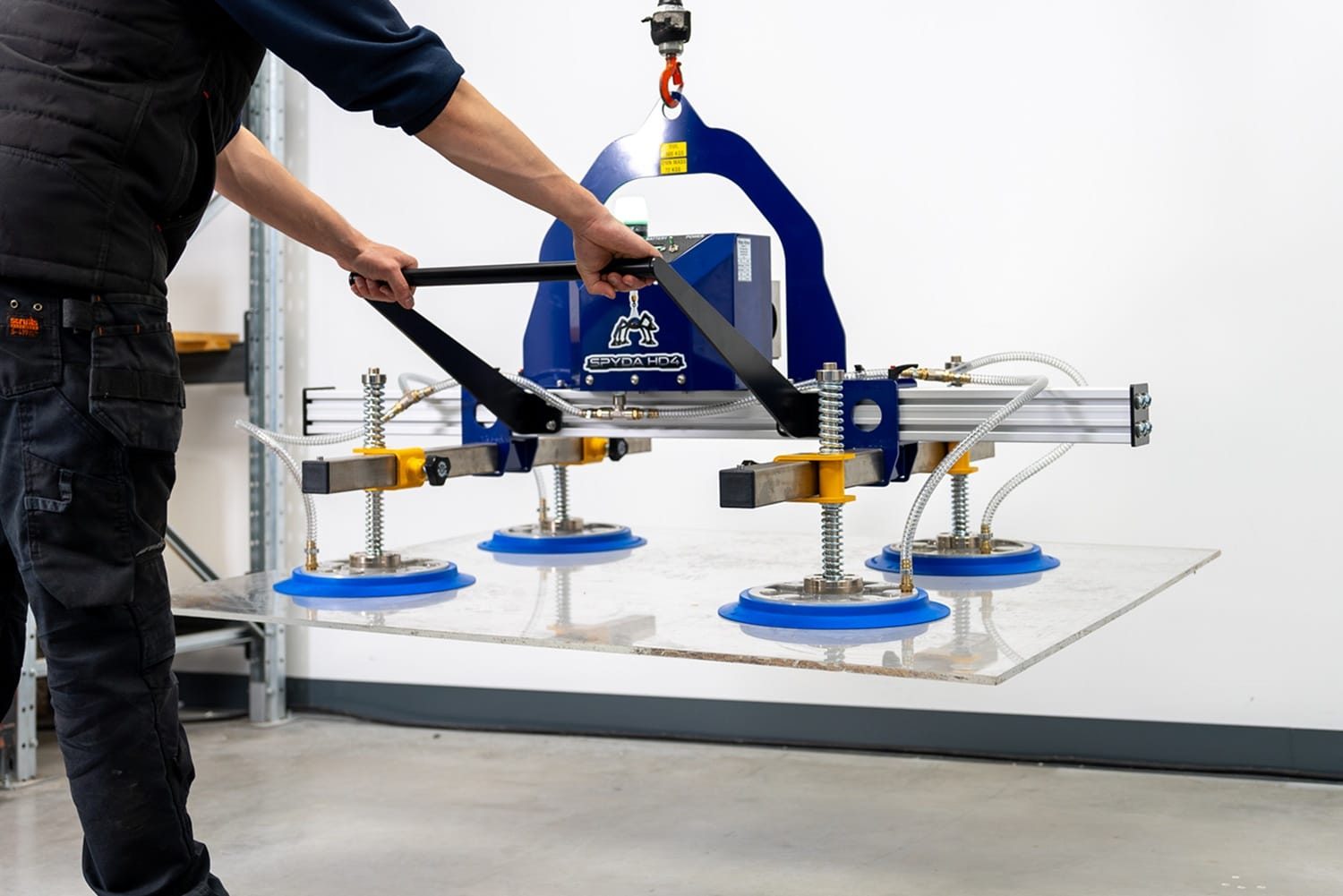

The solution incorporated a highly flexible adjustable frame design, allowing operators to reposition suction pads quickly and easily depending on the size, shape, and integrity of the metal sheet being lifted.
This provided the ideal solution for handling both complete sheets and partially processed laser-cut materials safely and securely.
Key Features of the Packline Vacuum Lifter
Battery-Powered Flexibility
To address the customer’s concern regarding crane-mounted power supplies, Packline recommended a fully battery-powered solution.
The inclusion of dual quick-change battery packs enabled continuous operation without requiring fixed electrical connections to the crane system. This eliminated the need for expensive crane retrofitting while providing greater operational flexibility across the production environment.
Improved Safety and Operator Confidence
Handling thin sheet metal manually presents significant safety risks, particularly when lifting large or partially cut components with unstable load profiles.
Packline’s vacuum lifting solution dramatically improved workplace safety by:

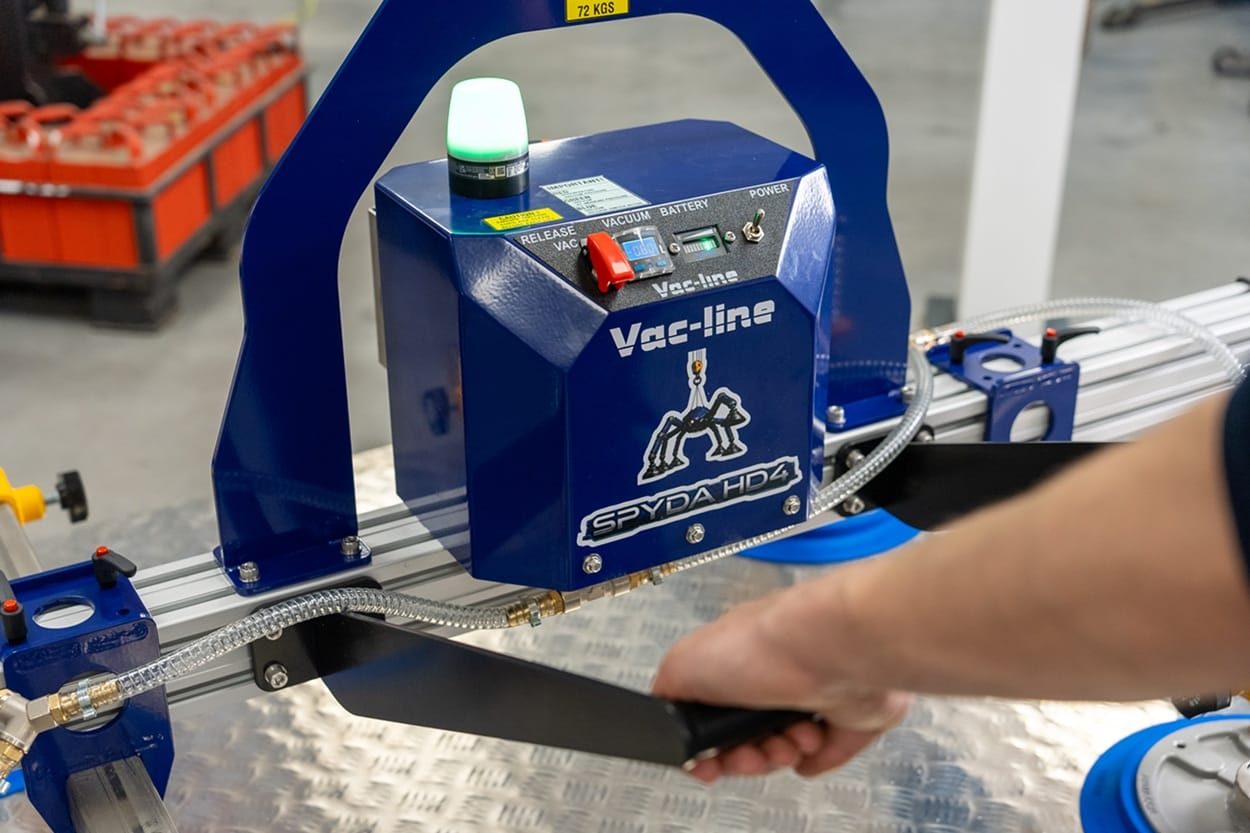

The integrated digital vacuum monitoring system and multi-coloured beacon sounder ensured operators always had clear visibility of vacuum status during operation.
Bespoke Design for Complex Material Handling
One of the key project challenges was handling laser-cut sheets where sections of material had already been removed.

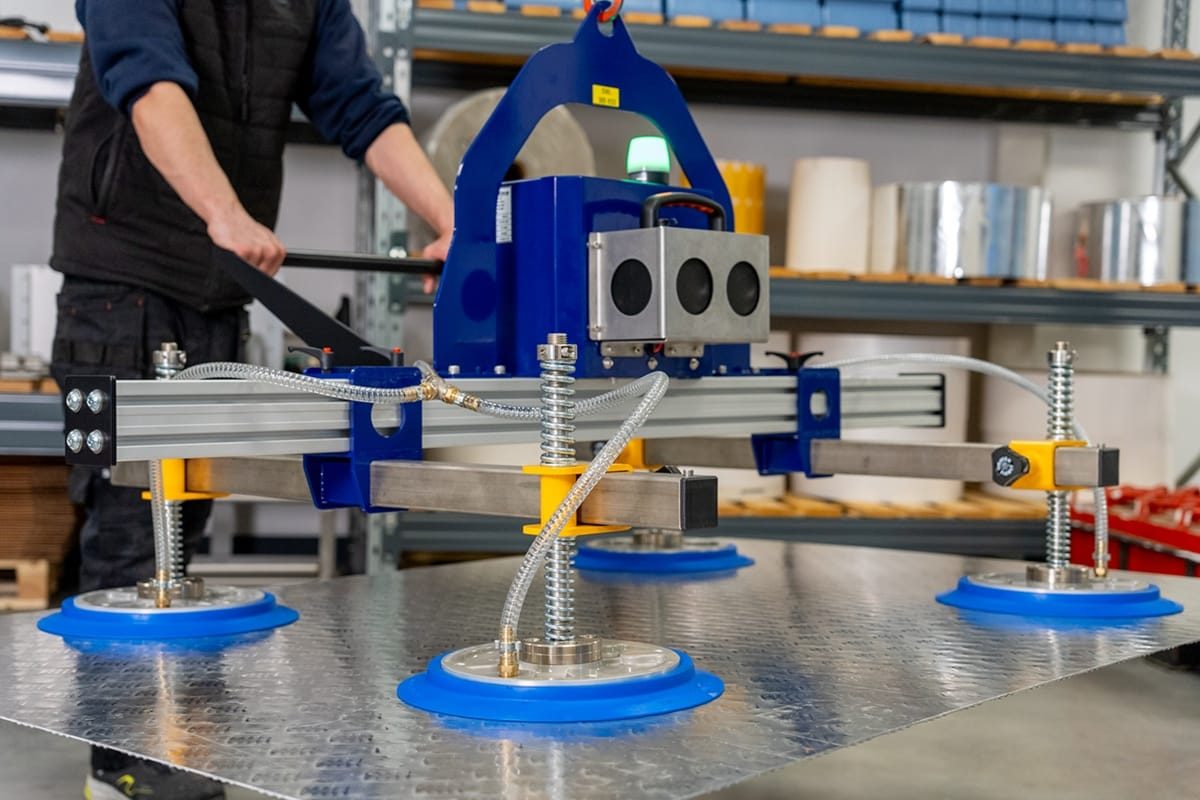

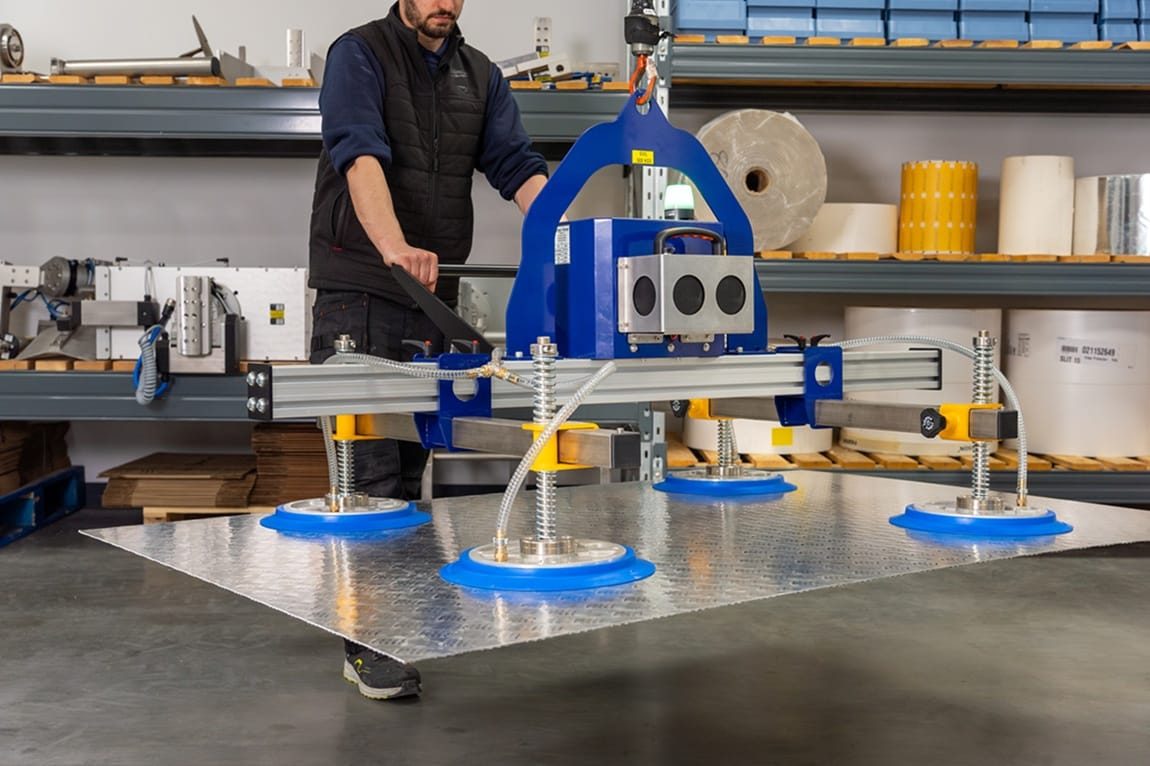

Packline engineered an adjustable suction foot arrangement that allowed vacuum pads to be repositioned quickly depending on the remaining material layout. This bespoke configuration ensured reliable vacuum performance across varying sheet profiles and maximised lifting safety.
Why Choose Packline for Vacuum Lifting Solutions?
Packline specialises in designing and manufacturing bespoke vacuum lifting equipment for industrial applications across manufacturing, engineering, logistics, and materials handling sectors.
Every vacuum handling solution is engineered around the customer’s exact requirements, delivering:
With extensive experience in sheet metal handling equipment, Packline provides tailored lifting solutions for even the most challenging applications.
Looking for a Vacuum Lifting Solution for Sheet Metal?
If your business requires a bespoke vacuum lifting system for handling sheet metal, laser-cut components, or other industrial materials, Packline can help.
Learn more about our vacuum lifting solutions or contact our team to discuss your application requirements.
