Platform Attachment with ‘AnyLevel’ Feature

Manufactured to Customer Specifications
'Any Level' Self-Levelling mechanism for loading/unloading at a constant level
Lift and position loads such as reels, drums, components, boxes, tooling, sacks
Applications include work positioning on assembly lines and work areas
Stainless Steel Construction 304, 316/316L, Polished Finish options
UK Design and Manufacture

Request a quote or connect with one of our technical engineers for more details

Get in touch

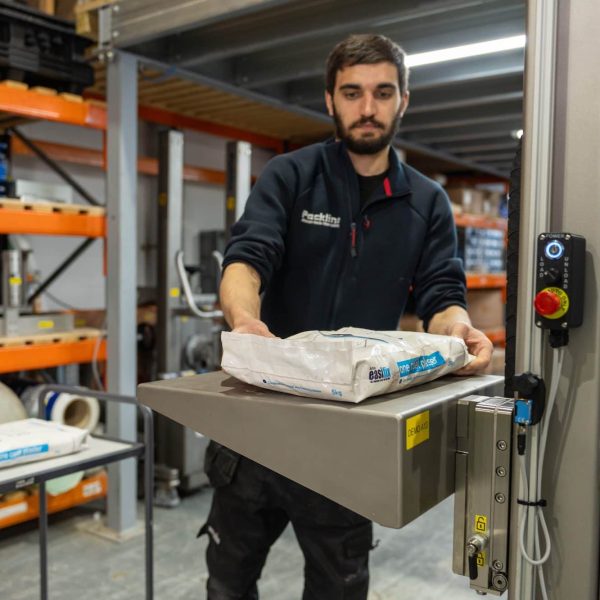

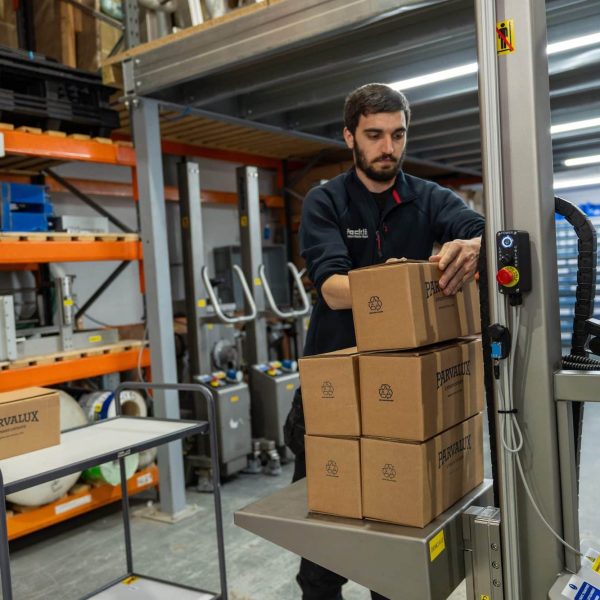

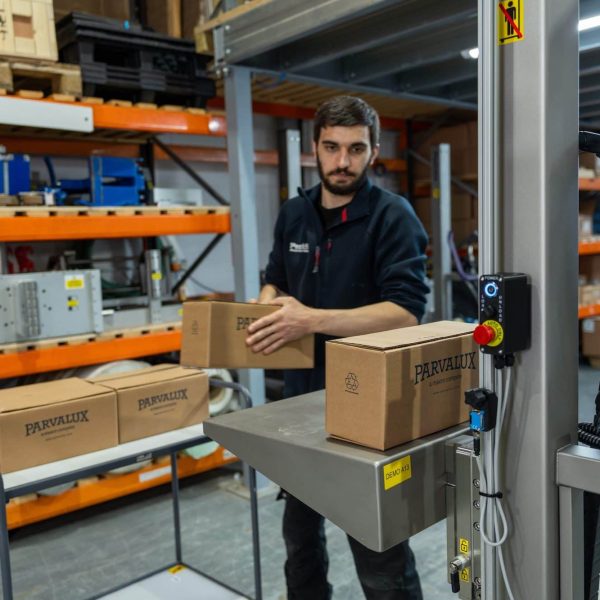

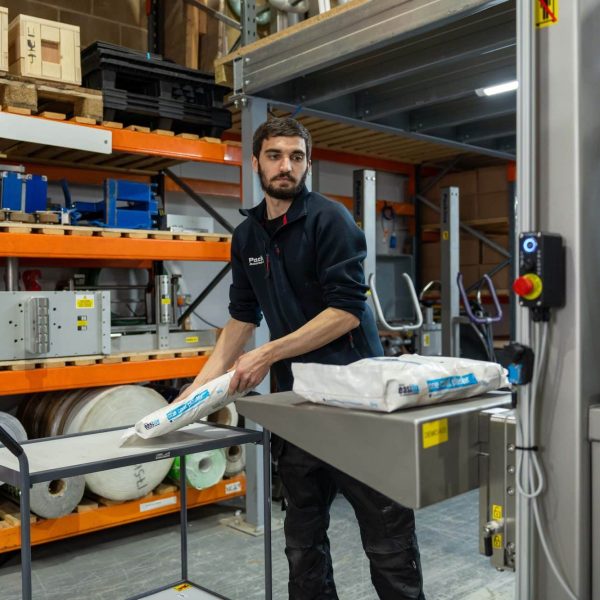

See the Platform Attachment with ‘AnyLevel’ Feature in use

Features and Options

Full Bespoke Design Service to suit your specific requirements
Lift Capacity up to 300kg
Lift Height up to 1850mm (bespoke options up to 3000mm)
IP Rating IP30C or IP65
Standard or Wide Straddle Legs
Wheels - Non-marking anti-static
Front Wheels - Stainless Steel 50mm / 85mm pallet wheels (rocking pallet or swivel castor options)
Rear Wheels - Stainless Steel 125mm Swivel castors with safety foot guard and brake system 'stop-fix'
Interchangeable attachments
Easy to manoeuvre with Small Footprint for narrow spaces
Automatic height adjustment for safer, easier load transfers.
Maintains a constant working height, reducing strain.
Enhances ergonomics and efficiency in operations.
Improves workplace safety by minimising manual handling efforts.
Prevents excessive bending and lifting, reducing the risk of strain injuries.
Suitable for various environments, including warehousing, manufacturing, food processing, and logistics.
CE and UKCA Compliant

Safety Features

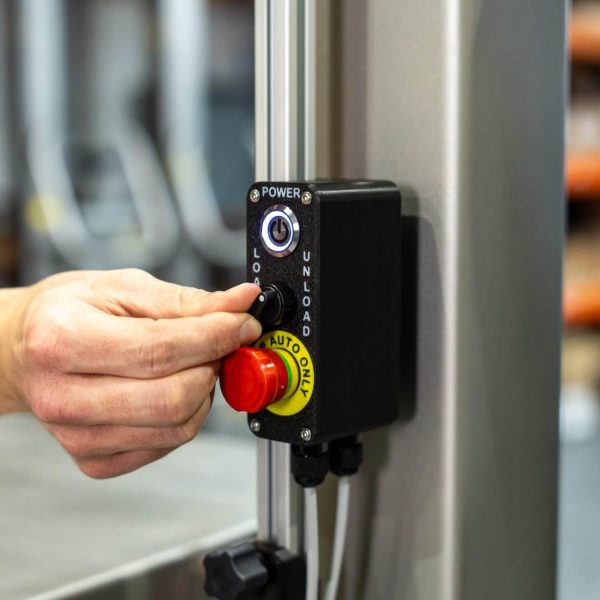

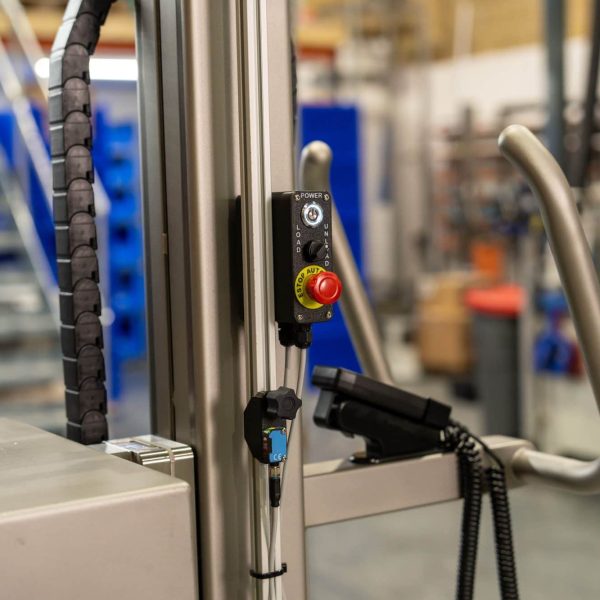

Emergency Stop Button
Overload limit - prevents exceeding SWL and accidental damage
Electro-mechanical brake holds load at required height in case of power failure
Rear swivel castors with safety foot guard and brake

Electrics

Mains Power Input for charging - 100-240VAC
Batteries - 24-volt 36 Amp AGM gel dual batteries
Battery Capacity - 400 Lift and Lower cycles (C150), 300 Lift and Lower cycles (C300)
Charging Cycle - 4-5 hours to full charge
Battery Charger - 5 Amp digital Intelligent Charger with advanced battery monitoring
Battery Meter - LED Visual Display showing charging status
Electrical Safety - Emergency E-stop button
Electrical overload protection - Immediate stop securely holding load in place
Electrics - 24v Programmable controllers

Datasheets

Self Levelling Auto Level Platform Attachment

Get in touch

Request an On-Site Demo Machine

Get in touch
Book a Demo
Features & Options
Safety Features
Electrics
Product Data Sheet

Platform Attachment with ‘AnyLevel’ Feature Overview

Platform Attachment with ‘Any-Level’ Feature – Effortless Lifting & Safe Handling

Automatic Height Adjustment for Safer, Easier Load Transfers.

The Platform Attachment with ‘Any-Level’ Technology is designed to maintain a constant working height, allowing operators to safely load and unload items onto storage racks or trolleys with minimal effort. This innovative feature enhances ergonomics and efficiency, reducing strain and improving workplace safety.

Enhanced Health & Safety Compliance

Prevents excessive bending and lifting, reducing the risk of strain injuries.
Ensures effortless load transfers at a comfortable height.
User-friendly design makes operation simple and intuitive.

Versatile Handling for Multiple Load Types

Ideal for lifting and handling various items, including:

Reels
Boxes & Crates
Sacks & Bags
Other bulky or heavy loads

Optimize Workflow & Productivity

By automatically adjusting to maintain a constant height, this attachment significantly improves efficiency in storage, packing, and assembly operations. Whether in warehousing, manufacturing, food processing, or logistics, it provides a flexible and reliable lifting solution.
