Roll Lifter with Powered Ejection

Manufactured to Customer Specifications
Fully Powered Rotation and Ejection of Reels
Lift capacity 200kg
Stainless Steel Construction 304, 316/316L, Polished Finish options
UK Design and Manufacture
A wide range of industries including Food, Pharmaceutical, Medical and FMCG

Request a quote or connect with one of our technical engineers for more details

Get in touch

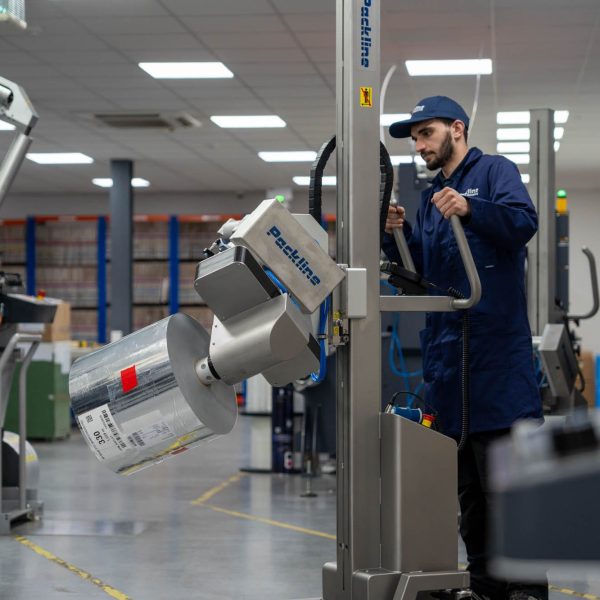

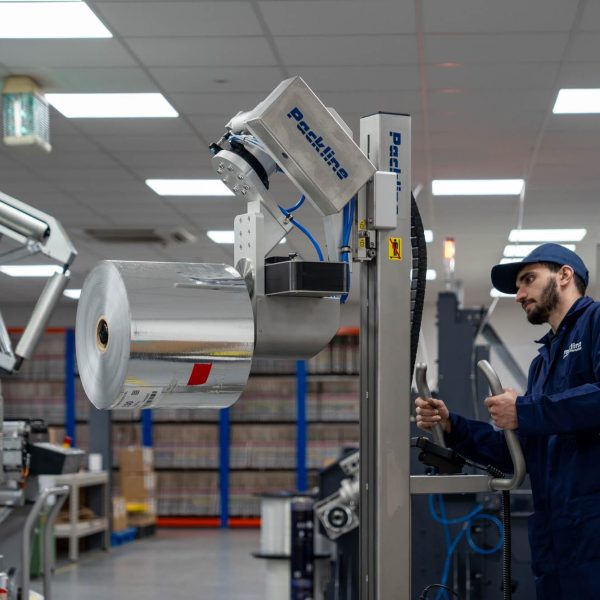

See the Roll Lifter with Powered Ejection in use

Features and Options

Full Bespoke Design Service to suit your specific requirements

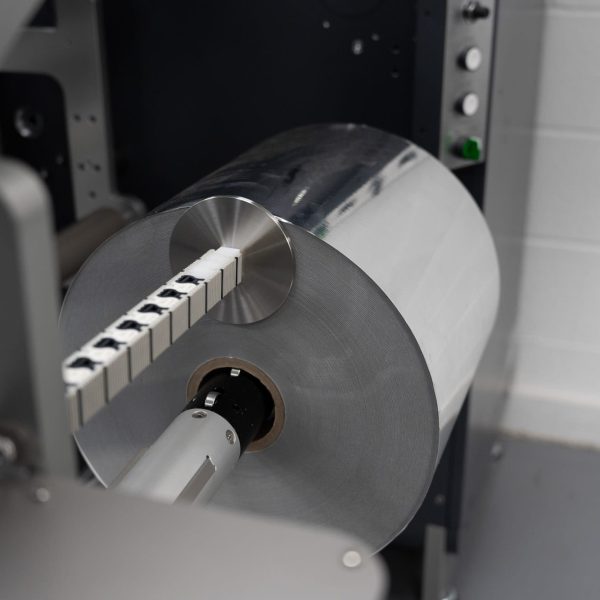

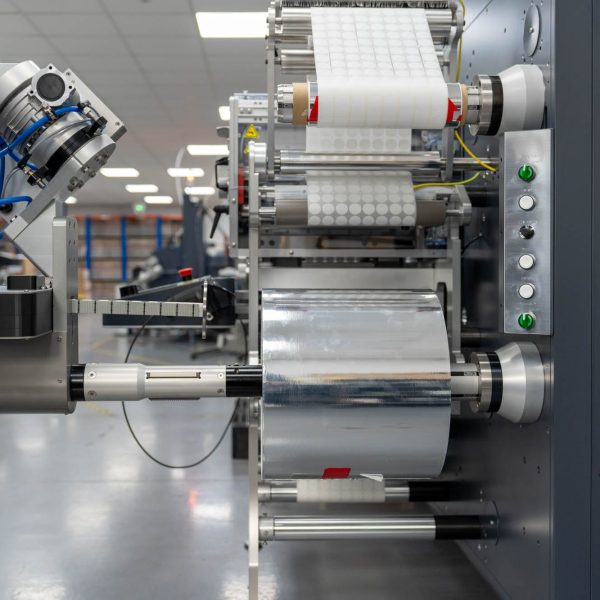

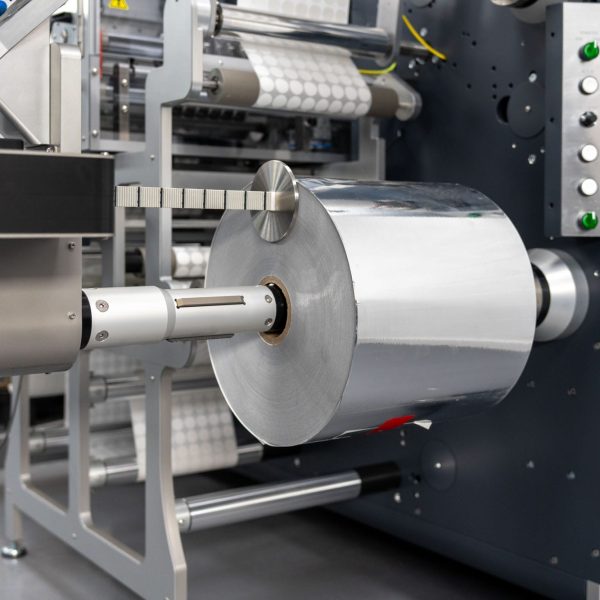

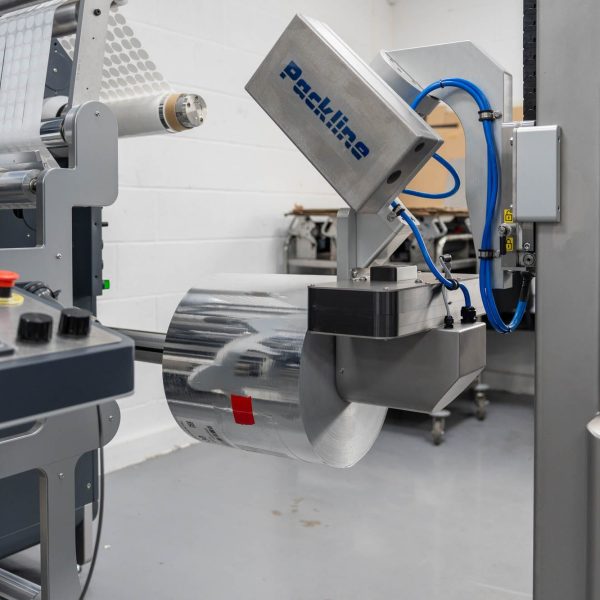

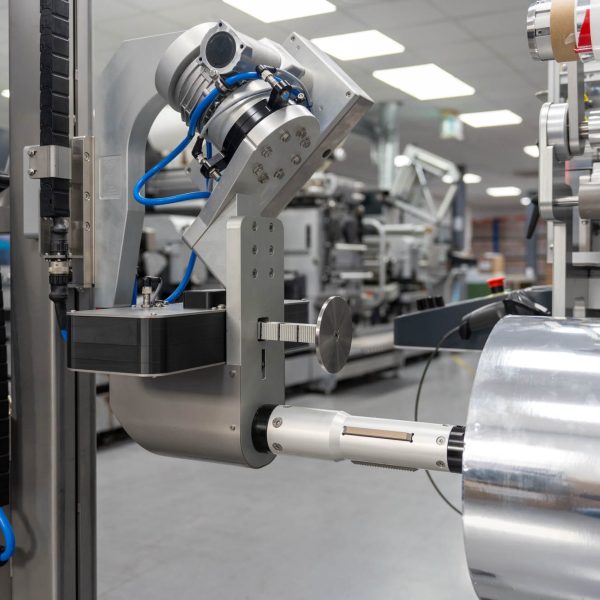

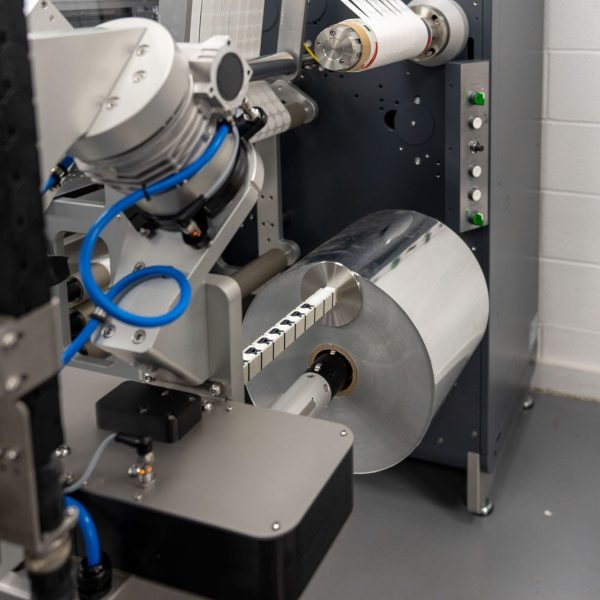

Fully motorised ejection of reels from vertical spindle attachment onto mandrel or storage
A joystick control facilitates easy transfer of the reels from the attachment, eliminating manual pushing.
360° Rotation of load (Motorised units can have rotation angles set to customer specifications)
Reel core sizes 3” (76mm) or 6” (152mm) other bespoke core sizes available upon request
Lift Capacity up to 200kg depending on requirements
Lift Height up to 1850mm (bespoke options up to 3000mm)
IP Rating IP30C or IP65
Standard or Wide Straddle Legs
Electric Lift with variable speed control option for precise movements
Optional adjustable height stop positions for repetitive lifting operations
Optional Position control
Optional Powered Locomotion
Wheels - Non-marking anti-static
Front Wheels - Stainless Steel 50mm / 85mm pallet wheels (rocking pallet or swivel castor options)
Rear Wheels - Stainless Steel 125mm Swivel castors with safety foot guard and brake system 'stop-fix'
Lift mechanism - ball screw with direct drive DC motor
Interchangeable attachments
Digital Controls and Display with Remote Control or Joystick options
Easy to manoeuvre with Small Footprint for narrow spaces
Ease of use, streamlined construction, and enhanced safety for end users
Flexible and Ergonomic design
CE and UKCA Compliant
Industries include Food, Drinks, Pharmaceutical, Medical, FMCG, Labelling & Printing, Automotive, Aerospace, Marine, Industrial & Warehouse

Safety Features

Safety two-button function prevents the operator from inadvertently dropping the load (powered rotation)
Emergency Stop Button
Overload limit - prevents exceeding SWL and accidental damage
Electro-mechanical brake holds load at required height in case of power failure
Rear swivel castors with safety foot guard and brake

Electrics

Mains Power Input for charging - 100-240VAC
Batteries - 24-volt 36 Amp AGM gel dual batteries
Battery Capacity - 400 Lift and Lower cycles (C150), 300 Lift and Lower cycles (C300)
Charging Cycle - 4-5 hours to full charge
Battery Charger - 5 Amp digital Intelligent Charger with advanced battery monitoring
Battery Meter - LED Visual Display showing charging status
Electrical Safety - Emergency E-stop button
Electrical overload protection - Immediate stop securely holding load in place
Electrics - 24v Programmable controllers

Datasheets

Reel Lifting Vertical Spindle Attachment Powered Ejection

Get in touch

Request an On-Site Demo Machine

Get in touch
Book a Demo
Features & Options
Safety Features
Electrics
Product Data Sheet

Roll Lifter with Powered Ejection Overview

The Vertical Spindle Attachment with Powered Ejector Mechanism is designed to enhance reel handling efficiency by minimising manual effort and optimising workflow.

This fully powered lifting solution enables seamless reel transfer from the lifter’s spindle onto a processing line mandrel or storage trolley, reducing operator strain and improving safety.

Key Features & Benefits:

Fully Powered Lift, Rotation, and Ejection – Effortlessly handles reels up to 200kg, reducing physical strain on operators.
Integrated Powered Ejection – A joystick control enables smooth and controlled reel transfer, eliminating the need for manual pushing.
Hygienic Stainless-Steel Construction – Ideal for cleanroom environments, including food and pharmaceutical industries, ensuring compliance with stringent hygiene standards.
Bespoke and Interchangeable Design – Custom-built to accommodate various reel sizes, with interchangeable attachments compatible with Packline’s ‘Compac’ lifting machines, featuring a quick-release system for flexibility and ease of use.

Applications:

Pharmaceutical and food processing – Ensures contamination-free material handling.
Packaging and manufacturing – Streamline reel handling operations, reducing downtime and increasing efficiency.
Warehousing and logistics – Enhance safety and ergonomics in reel transport and storage.

Packline’s Reel Lifter with Powered Ejection provides a safer, more efficient, and ergonomically optimised solution for reel handling. By integrating this technology, operators can significantly reduce manual handling risks, improve operational efficiency, and maintain compliance with industry hygiene standards.
