Lifting & Handling Solutions> Stainless Steel Reel Handling
Packline | Roll Handling – Twin Spindle Attachment 0

Roll Handling – Twin Spindle Attachment

Lifting & Handling Solutions> Stainless Steel Reel Handling
  • Manufactured to Customer Specifications
  • Stainless Steel Construction 304, 316/316L, Polished Finish options
  • Lift and Transport reels using the reel's external diameter
  • Lift Capacity up to 300kg
  • UK Design and Manufacture
  • A wide range of industries including Food, Pharmaceutical, Medical and FMCG
Request a quote or connect with one of our technical engineers for more details
Get in touch

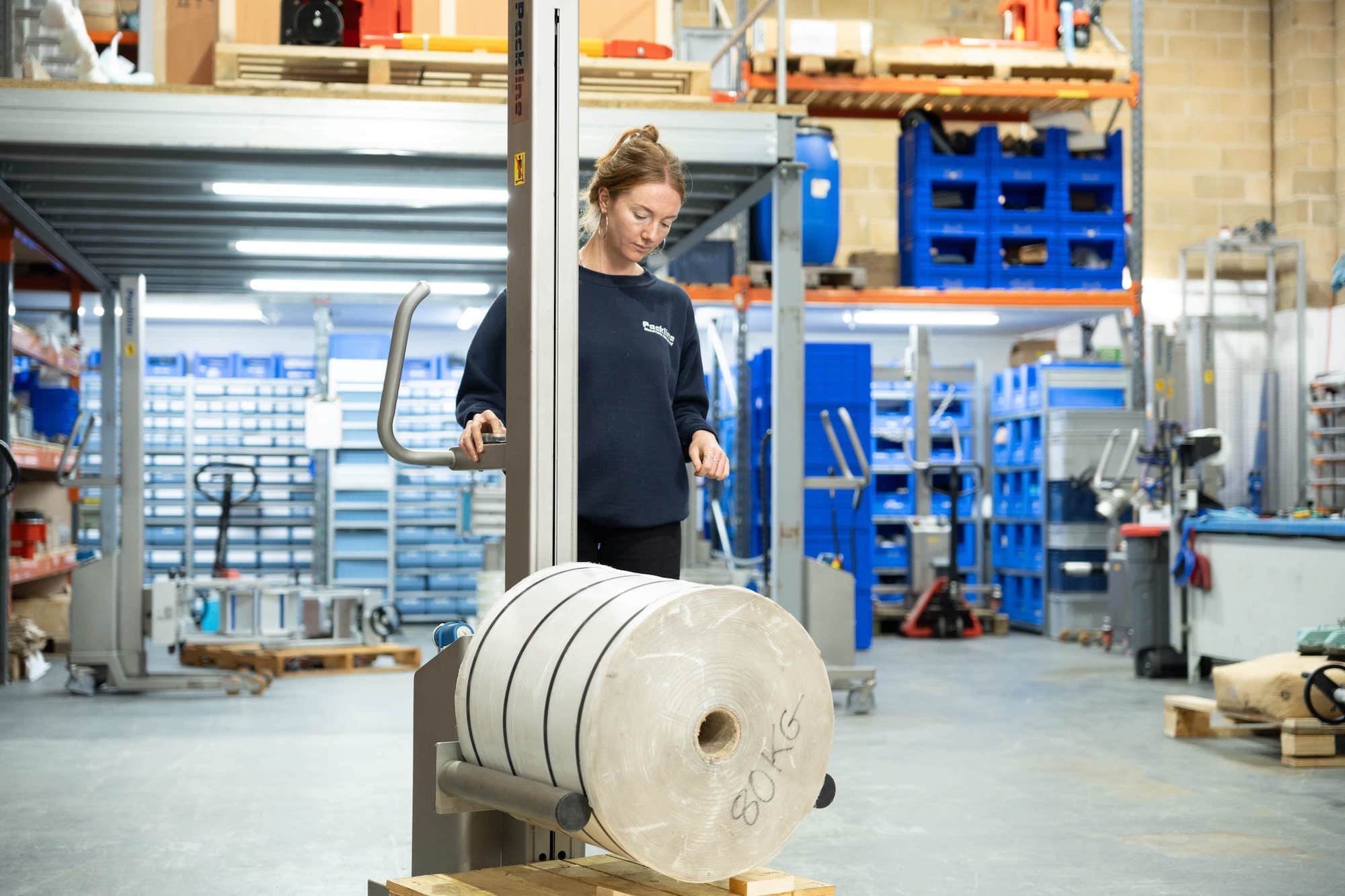

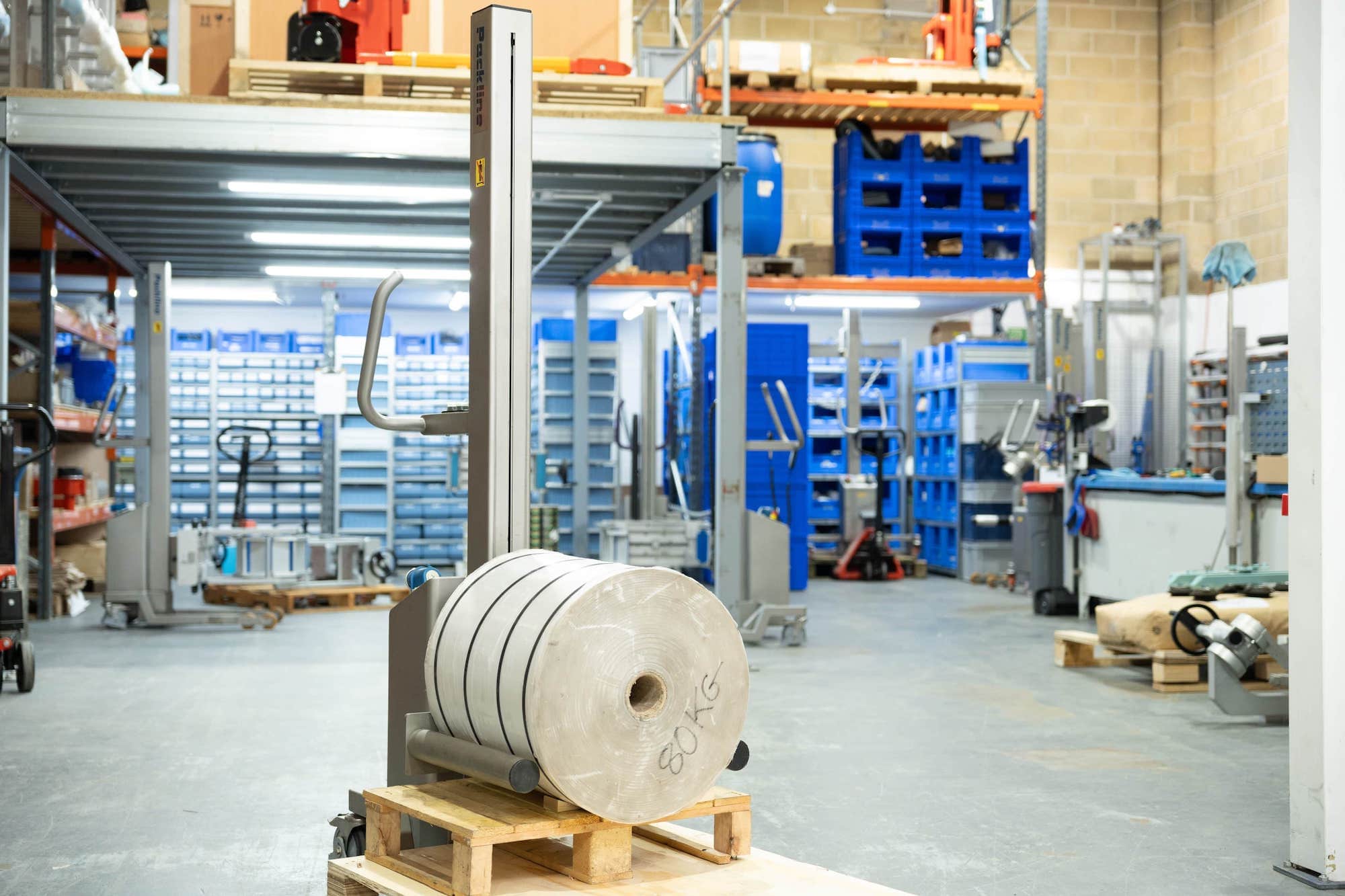

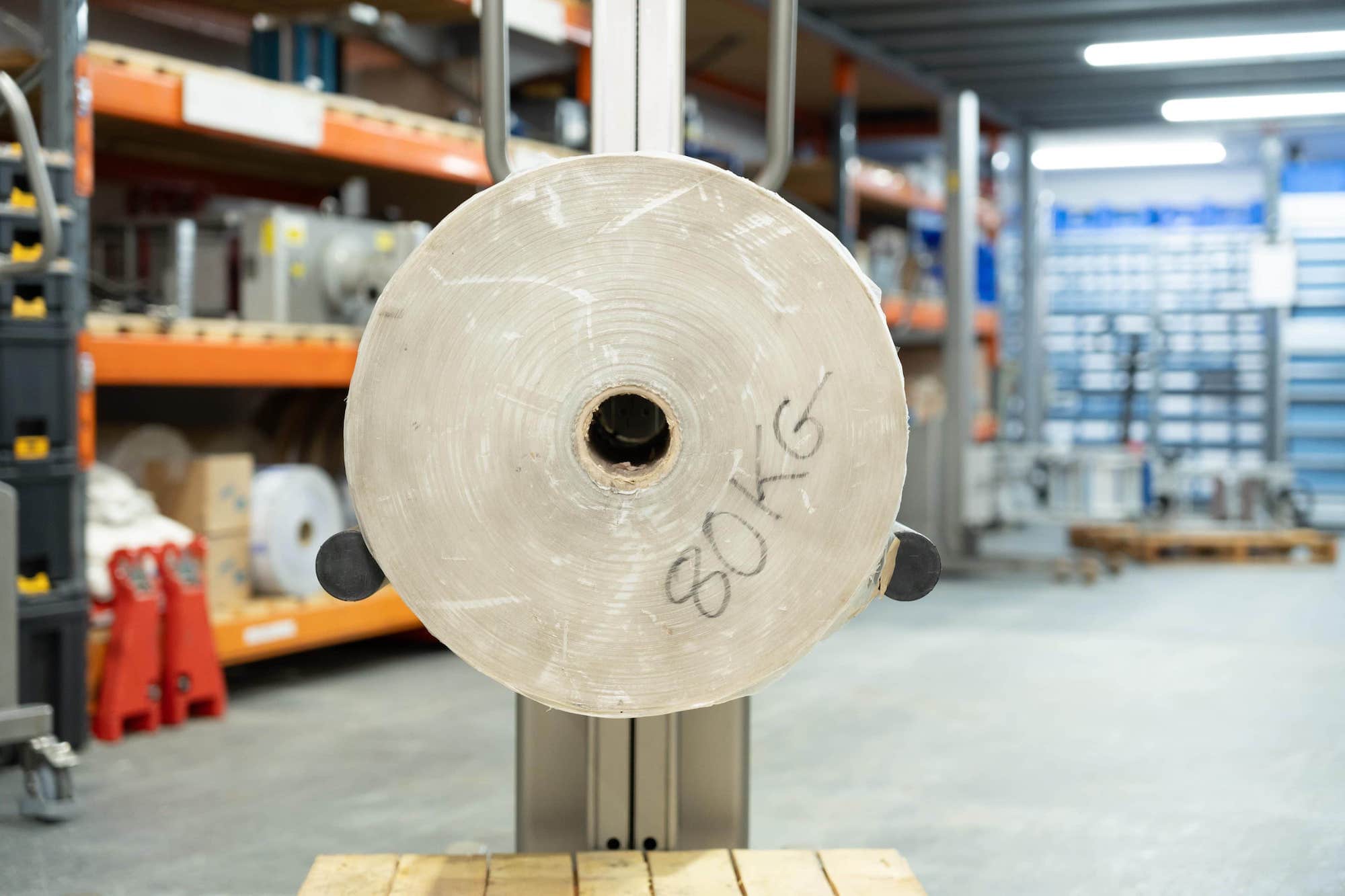

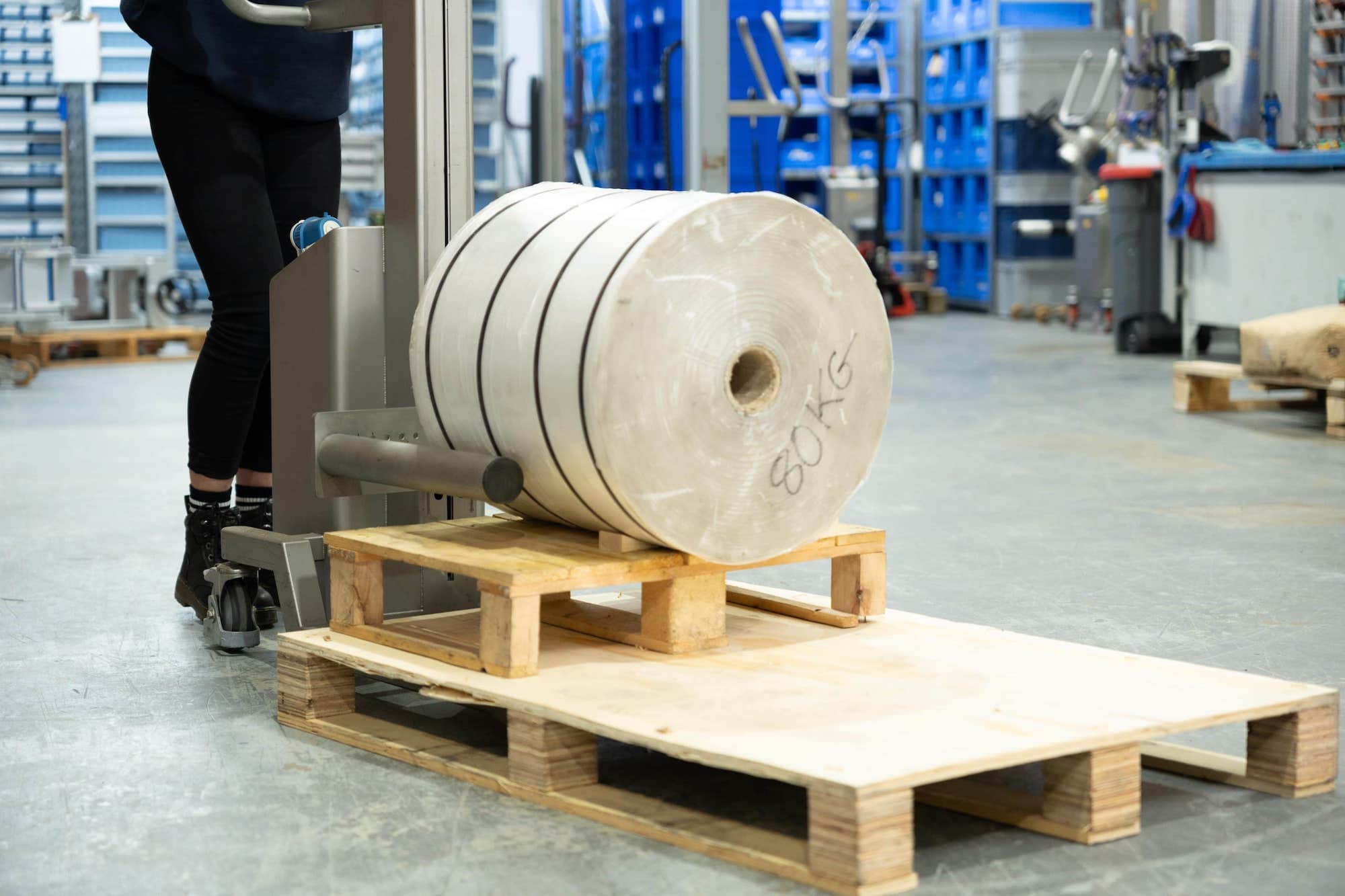

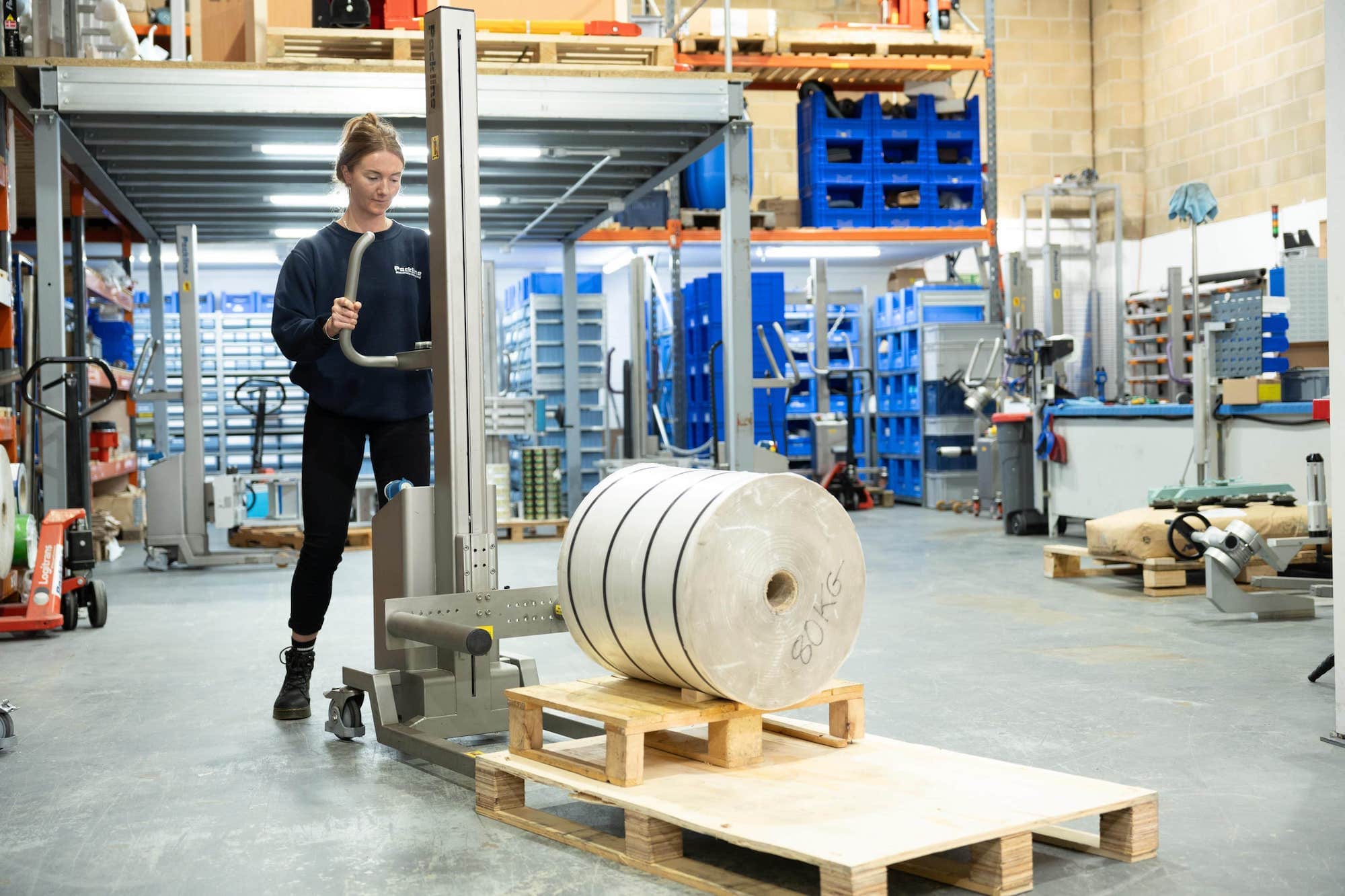

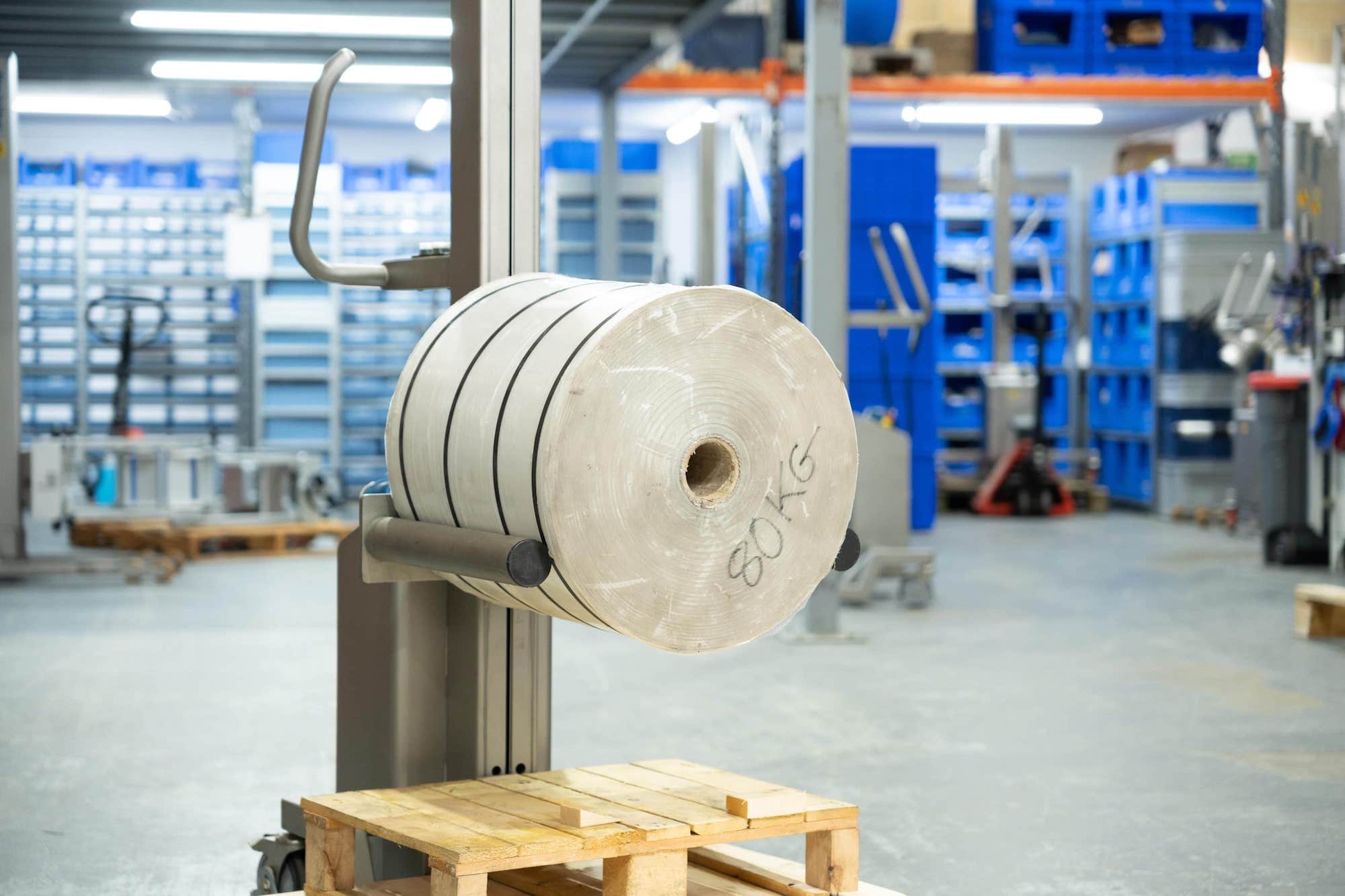

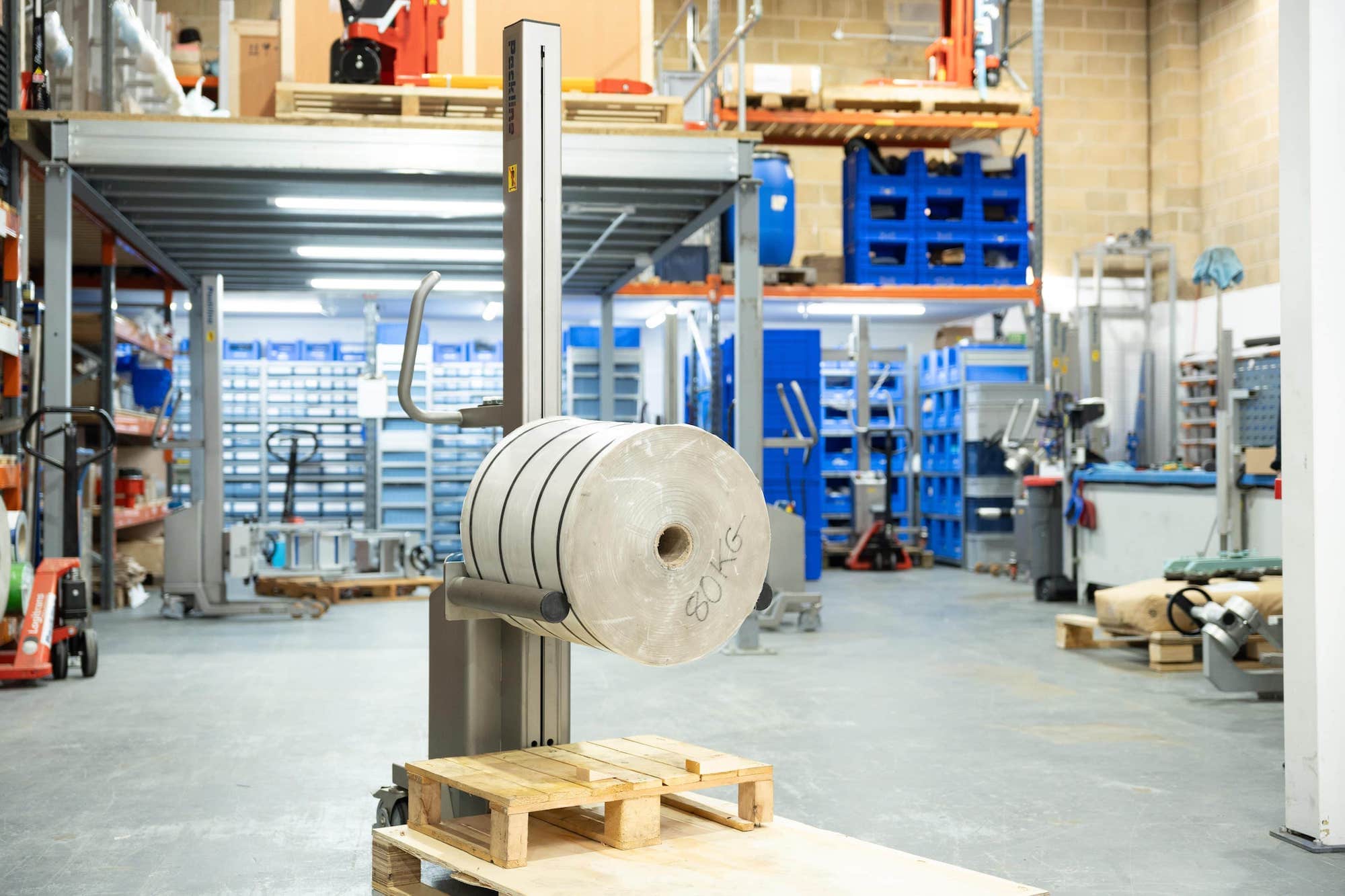

See the Roll Handling – Twin Spindle Attachment in use

Features and Options

  • Full Bespoke Design Service to suit your specific requirements
  • Reel core sizes 3” (76mm) or 6” (152mm) other bespoke core sizes available upon request
  • Adjustable attachment arms to accommodate different sized rolls option
  • Additional optional Die Block Attachment
  • Lift Height up to 1850mm (bespoke options up to 3000mm)
  • IP Rating IP30C or IP65
  • Standard or Wide Straddle Legs
  • Wheels - Non-marking anti-static
  • Front Wheels - Stainless Steel 50mm / 85mm pallet wheels (rocking pallet or swivel castor options)
  • Rear Wheels - Stainless Steel 125mm Swivel castors with safety foot guard and brake system 'stop-fix'
  • Lift mechanism - ball screw with direct drive DC motor
  • Interchangeable attachments
  • Easy to manoeuvre with Small Footprint for narrow spaces
  • Ease of use, streamlined construction, and enhanced safety for end users
  • Flexible and Ergonomic design
  • CE and UKCA Compliant
  • Industries include Food, Drinks, Pharmaceutical, Medical, FMCG, Labelling & Printing, Automotive, Aerospace, Marine, Industrial & Warehouse

Safety Features

  • Emergency Stop Button
  • Overload limit - prevents exceeding SWL and accidental damage
  • Electro-mechanical brake holds load at required height in case of power failure
  • Rear swivel castors with safety foot guard and brake

Electrics

  • Mains Power Input for charging - 100-240VAC
  • Batteries - 24-volt 36 Amp AGM gel dual batteries
  • Battery Capacity - 400 Lift and Lower cycles (C150), 300 Lift and Lower cycles (C300)
  • Charging Cycle - 4-5 hours to full charge
  • Battery Charger - 5 Amp digital Intelligent Charger with advanced battery monitoring
  • Battery Meter - LED Visual Display showing charging status
  • Electrical Safety - Emergency E-stop button
  • Electrical overload protection - Immediate stop securely holding load in place
  • Electrics - 24v Programmable controllers

Datasheets

Reel Lifting Twin Spindle

Get in touch

Sending...
Uploading Files
Field is required
Field is required
Invalid email

Request an On-Site Demo Machine

Sending...
Uploading Files
Field is required
Field is required
Invalid email
Field is required
Tell us about your lifting and handling challenge so we can recommend the right solution
  • Get in touch
  • Book a Demo
  • Features & Options
  • Safety Features
  • Electrics
  • Product Data Sheet
Packline | Roll Handling – Twin Spindle Attachment 1
Packline | Roll Handling – Twin Spindle Attachment 2
Packline | Roll Handling – Twin Spindle Attachment 3
Packline | Roll Handling – Twin Spindle Attachment 4
Packline | Roll Handling – Twin Spindle Attachment 5
Packline | Roll Handling – Twin Spindle Attachment 6
Packline | Roll Handling – Twin Spindle Attachment 7

Roll Handling – Twin Spindle Attachment Overview

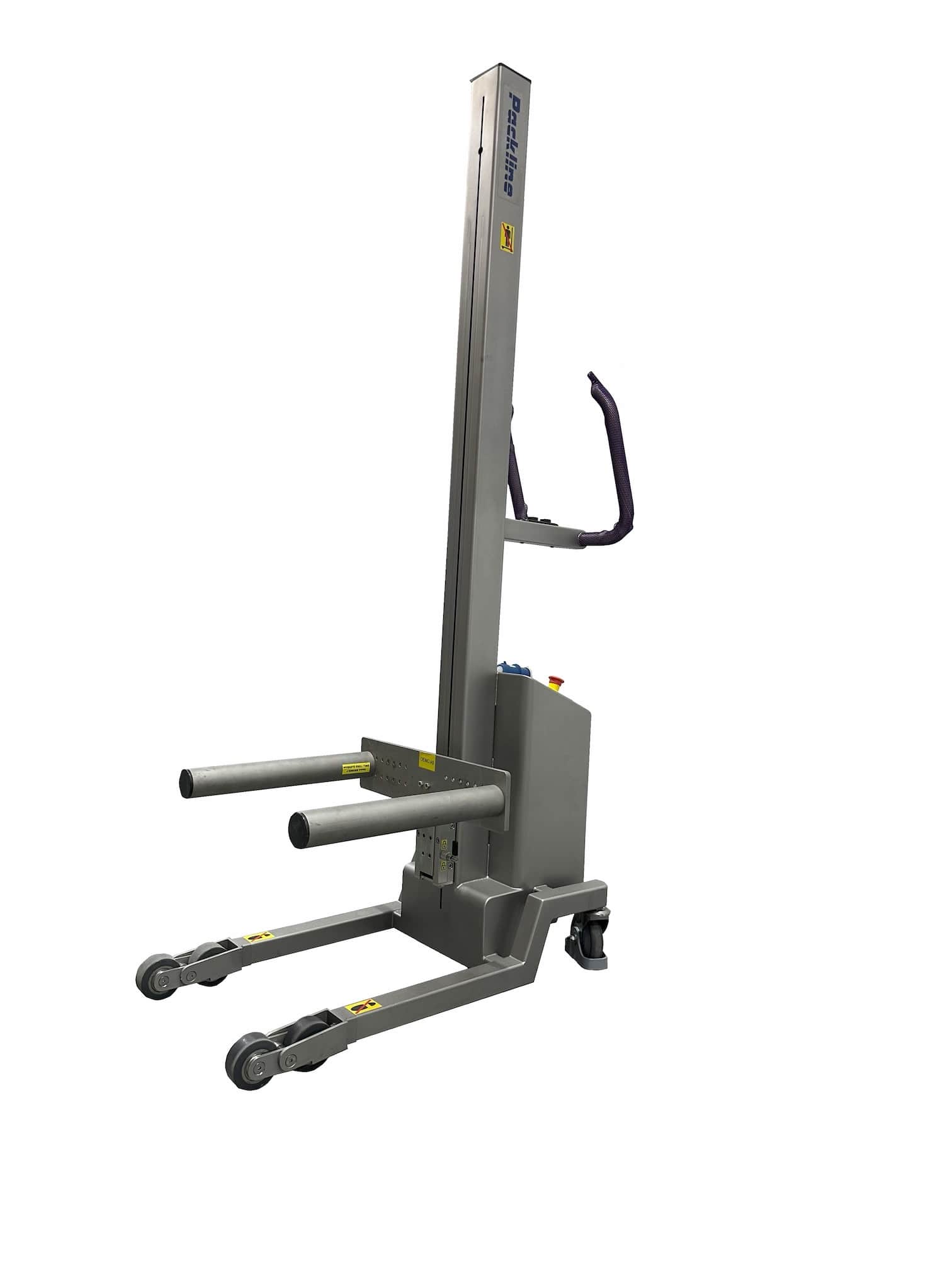

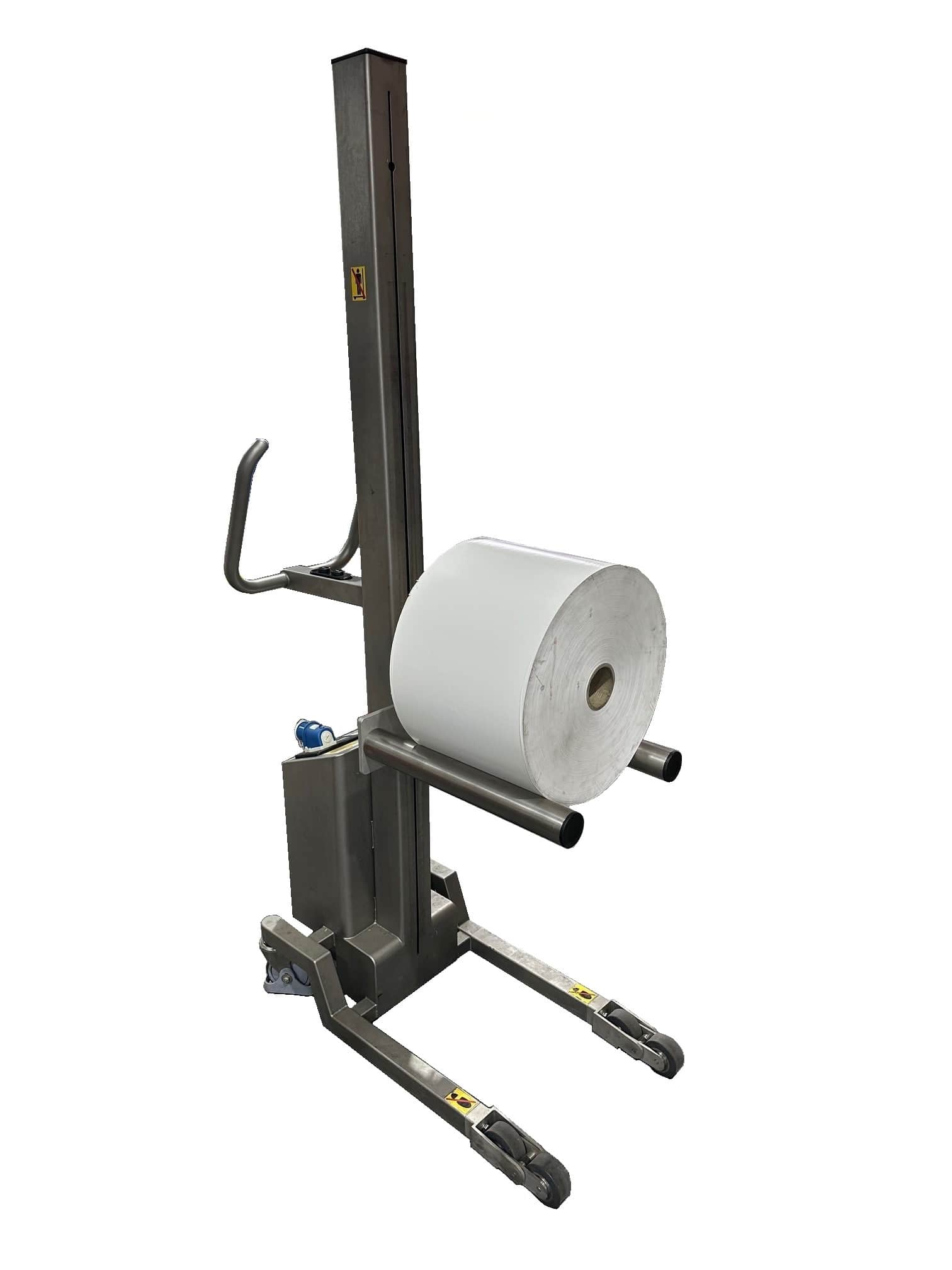

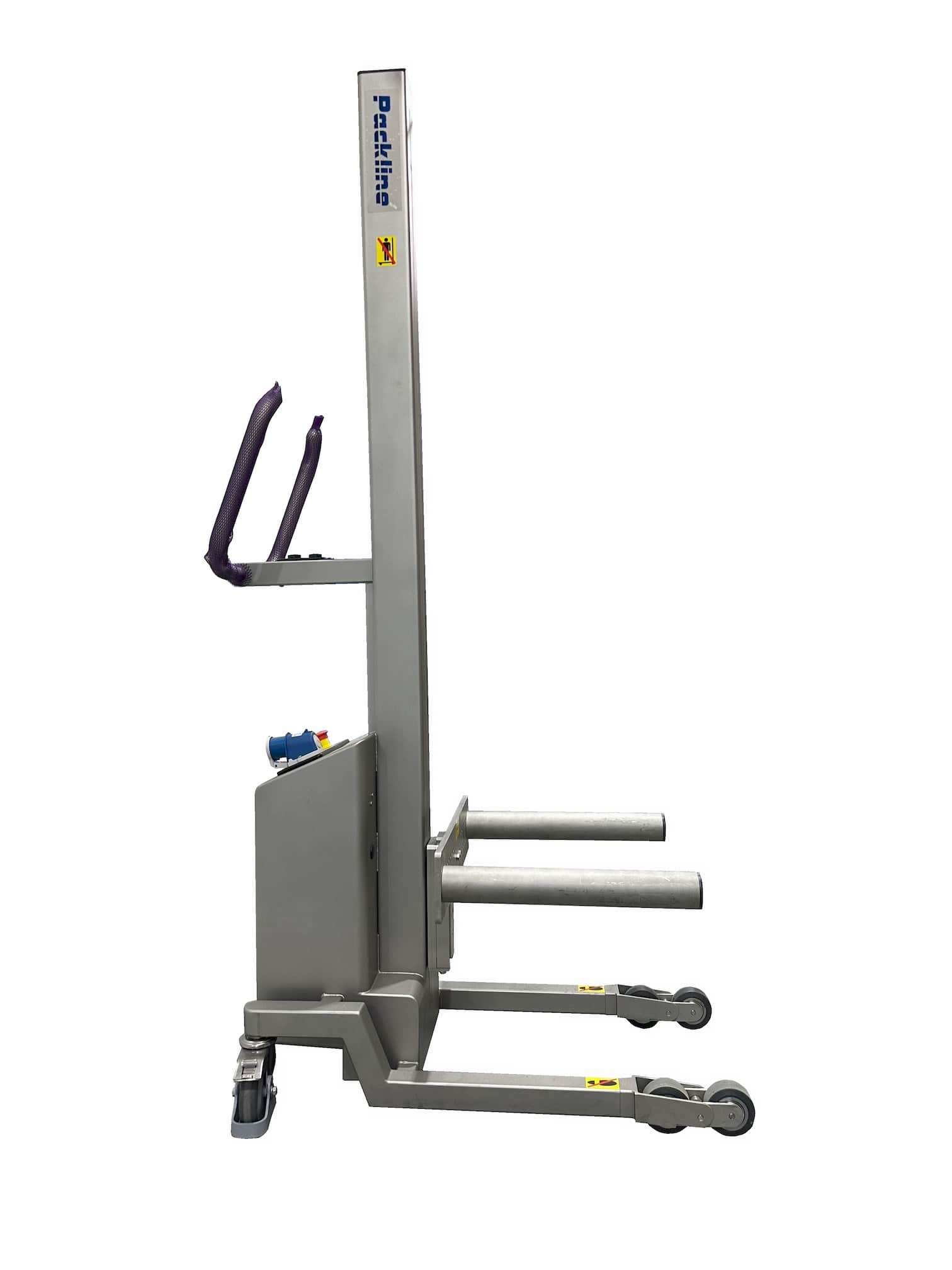

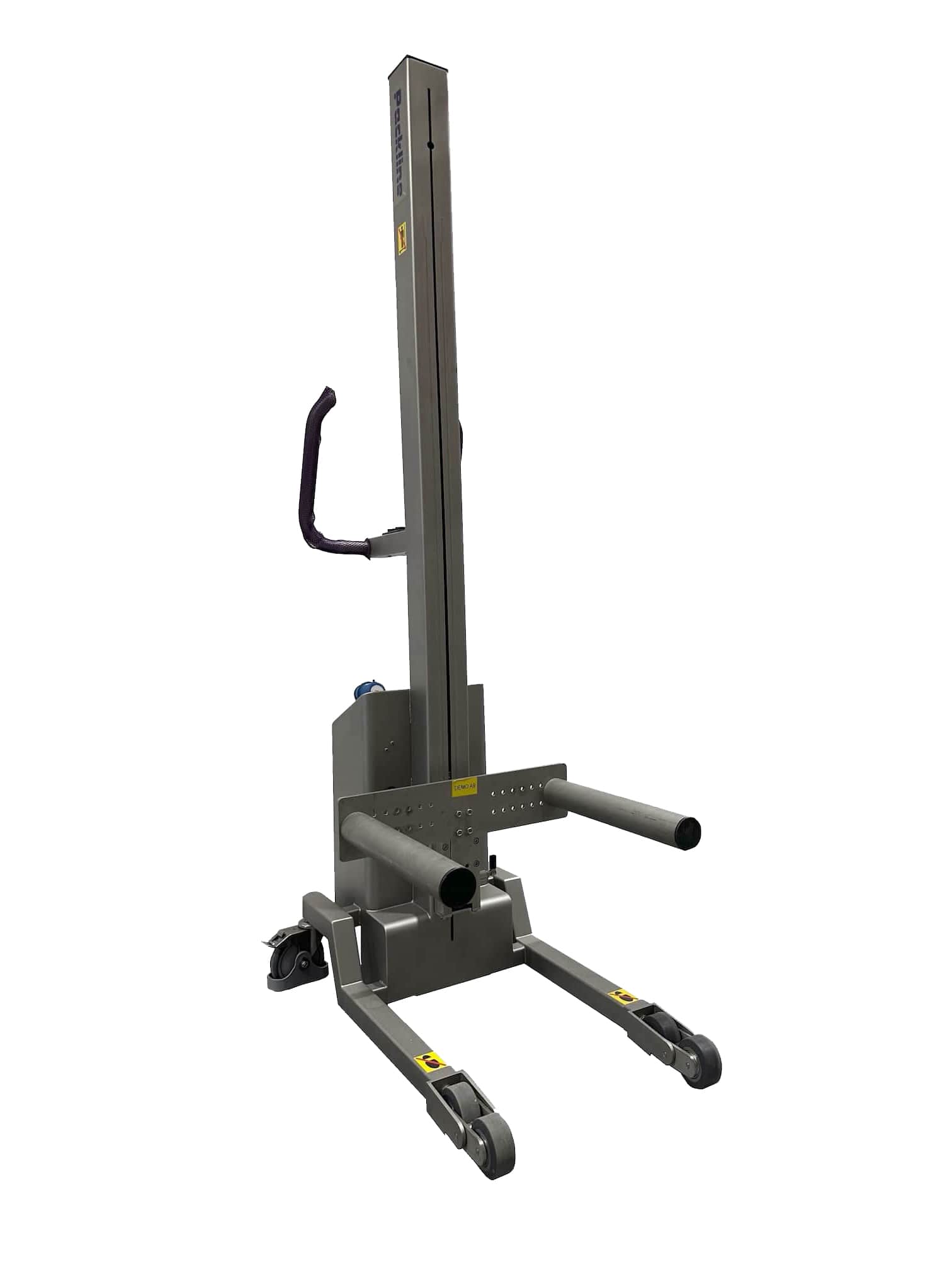

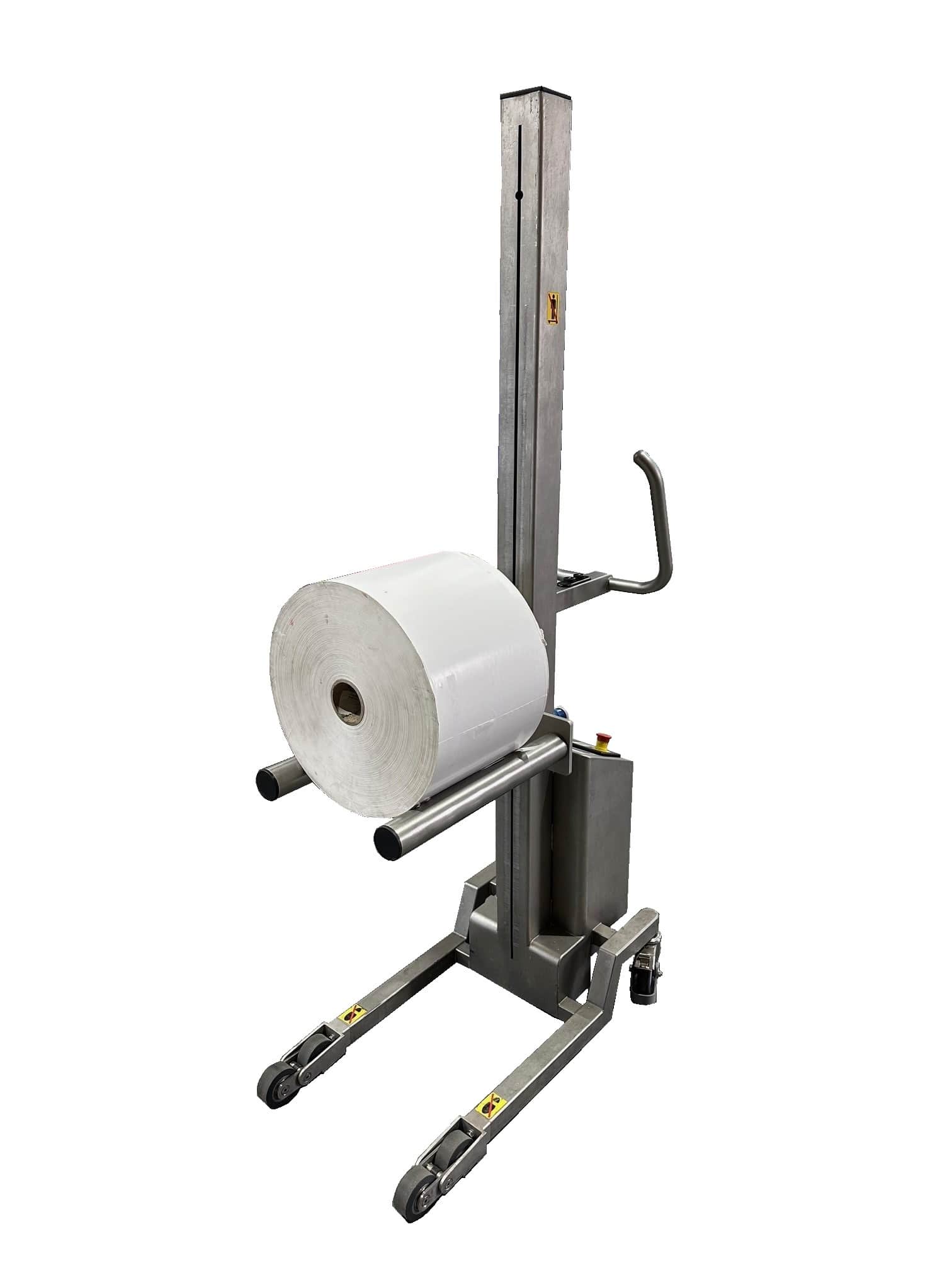

The Twin Spindle Attachments have been designed to provide a simple means of lifting and handling reels by their diameter.

Constructed from Stainless Steel the attachment is suitable for hygienic and clean room applications.

Comprehensive Range
Available in a wide range of lengths and diameters as standard coupled with the companies full bespoke design service enables the right solution to be provided for most applications.





Fully Interchangeable
Packline’s range of attachments are fully interchangeable and can be easily fixed or removed from any model of Compac Lifter fitted with the unique quick release system. This quick release system enables one Compac Lifter to be used with multiple attachments providing an economical solution to a range of applications.



CE/UKCA Marked and Fully Tested
Every design is fully tested, CE marked, supported by a detailed file meeting the latest legislation and Health and Safety directives.

Packline | Roll Handling – Twin Spindle Attachment 8
Packline | Roll Handling – Twin Spindle Attachment 9
Packline | Roll Handling – Twin Spindle Attachment 10
Packline | Roll Handling – Twin Spindle Attachment 11
Packline | Roll Handling – Twin Spindle Attachment 12
Packline | Roll Handling – Twin Spindle Attachment 13
Packline | Roll Handling – Twin Spindle Attachment 14
Packline | Roll Handling – Twin Spindle Attachment 15
Packline | Roll Handling – Twin Spindle Attachment 16

UK Manufacture & Design

Packline Materials Handling has been designing and manufacturing lifting and handling equipment in Poole, Dorset in the UK since 1993.
Packline | Roll Handling – Twin Spindle Attachment 17

Bespoke Design services

The company’s in-house design facility and workshop enables high quality and effective solutions to be realised within short lead times.
