Roll Handling Equipment – Hinged Vertical Spindle Attachment
The Hinged Vertical Spindle Attachment from Packline Materials Handling provides a safe, efficient, and space-saving solution for lifting and handling rolls of film and foil in cleanroom and food production environments.
Originally designed in response to a customer enquiry within the food industry, this bespoke attachment is ideal for applications where restricted access or confined spaces make traditional roll handling difficult.
Innovative Hinged Design for Confined Spaces

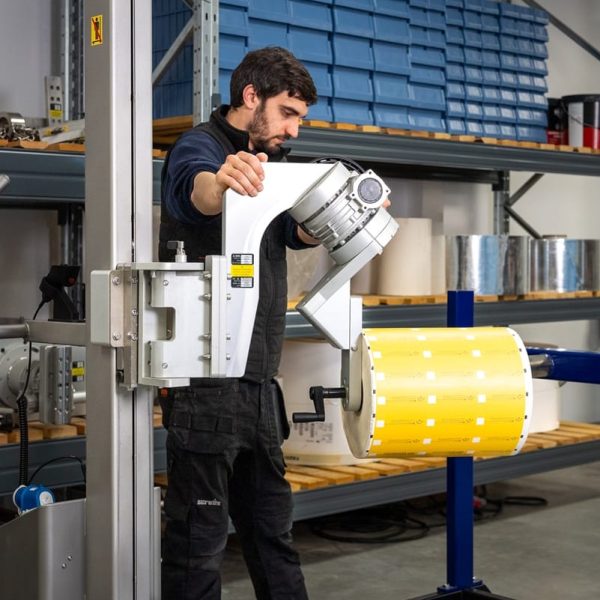

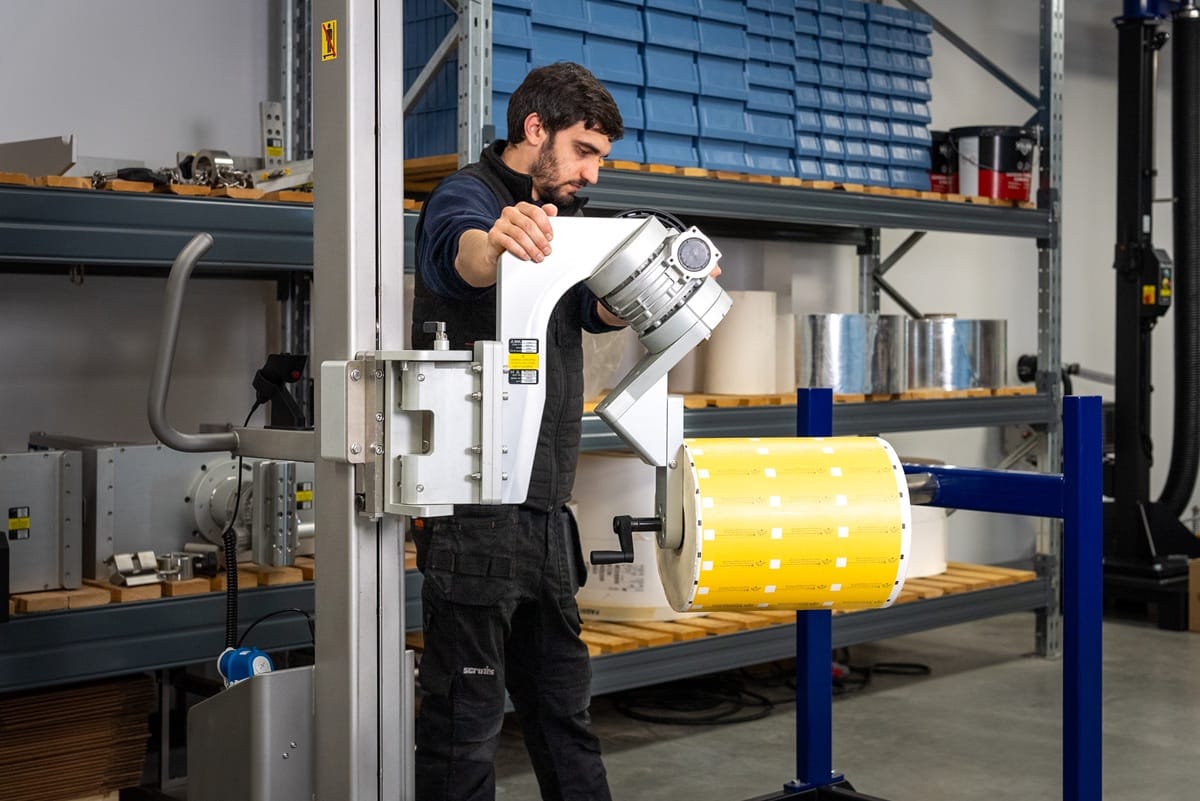

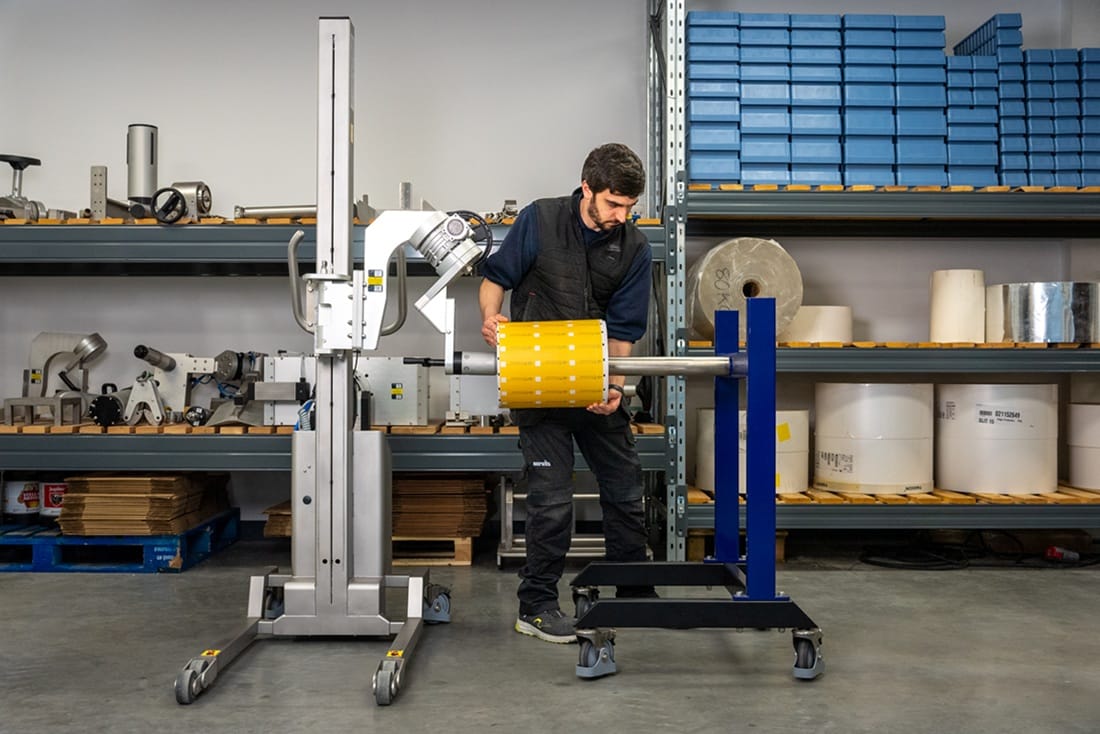

The unique hinged mechanism allows the vertical spindle to pivot left or right, enabling sideways loading onto packaging machinery where space is limited. Instead of repositioning the entire lifting machine, the operator can simply swing the spindle 90° to either side using the manual hinged indexing system. During transport, the spindle locks securely in the central position via a pin stop release mechanism, ensuring stability and safety.
Precise and Safe Manual Handling
This roll handling attachment features manual rotation and gripping with powered lift and lower functions for smooth and controlled operation.

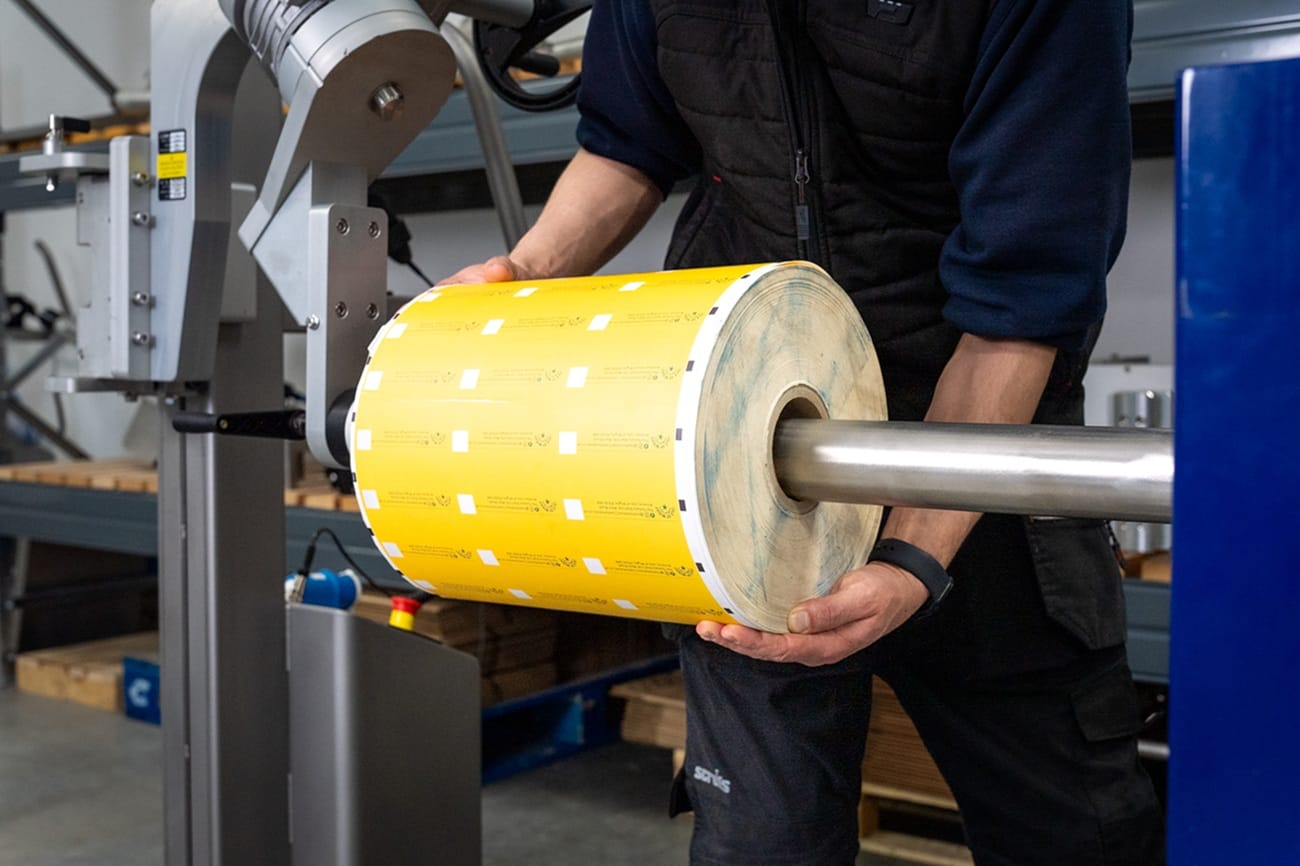

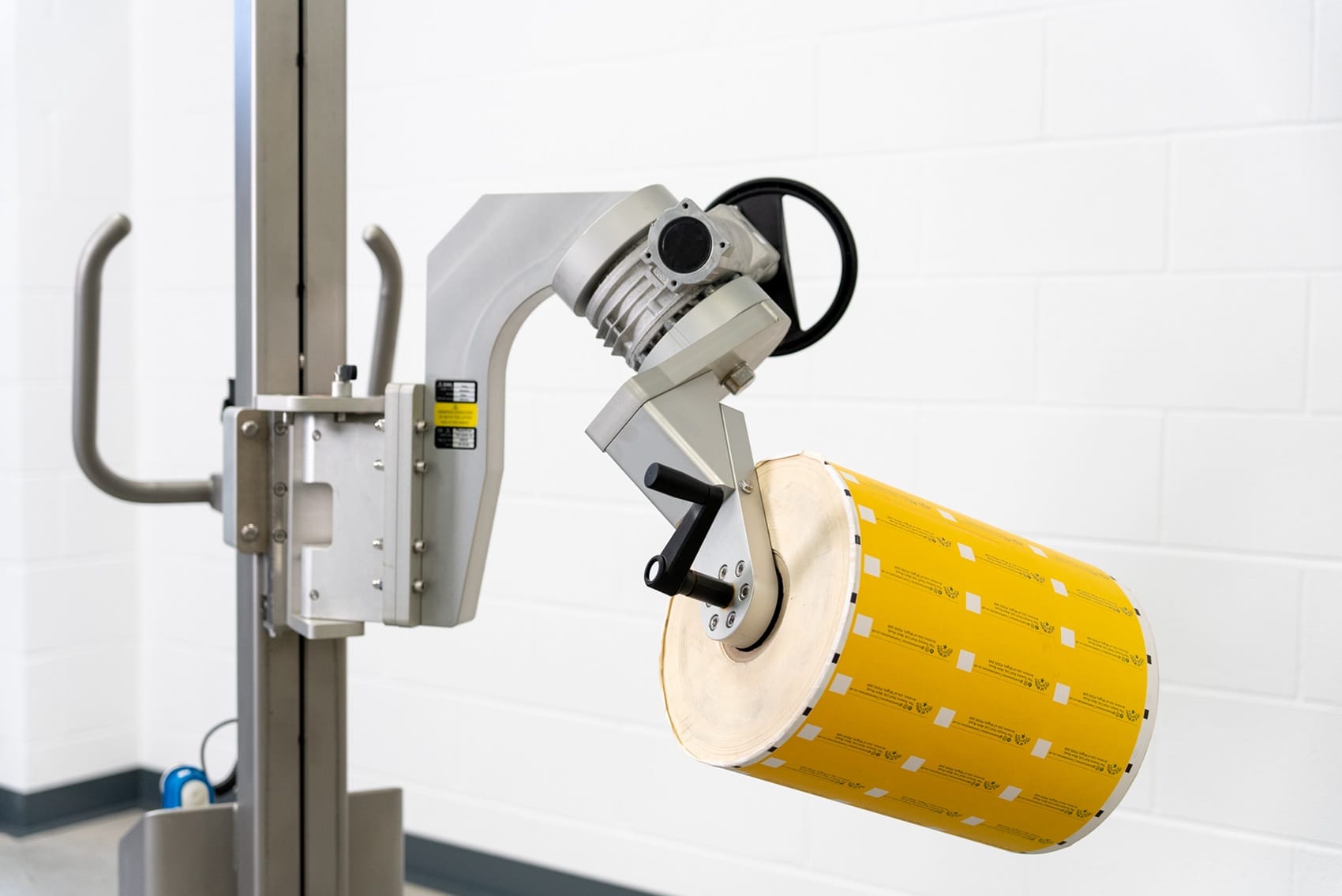

Ergonomically designed handles make it easy to rotate the roll between vertical and horizontal orientations, while a handwheel control provides safe and accurate gripping through the roll’s core. A built-in torque limiter prevents over- or under-tightening, protecting both the roll and the equipment and ensuring operator confidence during handling.
Hygienic and Durable Construction
Manufactured from high-grade stainless steel, the Hinged Vertical Spindle is perfectly suited for pharmaceutical, food, and other hygienic production environments, offering durability, corrosion resistance, and easy cleaning.
Customisable and Interchangeable
Packline provides a bespoke design service, allowing the hinged spindle attachment to be tailored for specific roll sizes, materials, and load requirements.
All Packline attachments are fully interchangeable and can be easily fitted or removed from any Compac Lifting Machine equipped with the quick-release system.
This attachment is also available with geared rotation for applications requiring additional precision.
Technical Specification
Packline’s Hinged Vertical Spindle Attachment offers an innovative, hygienic, and ergonomic solution for roll handling in restricted spaces — combining safety, precision, and ease of use for modern production facilities.
