Reel Lifting – Rotary Tray Attachment

Lifting & Handling Solutions> Stainless Steel Reel Handling
  • Manufactured to Customer Specifications
  • Support loads and allow them to rotate in the horizontal through 360°
  • Lift and position loads such as reels, drums, sacks, etc.
  • Stainless Steel Construction 304, 316/316L, Polished Finish options
  • Lift Capacity up to 300kg
  • UK Design and Manufacture
Request a quote or connect with one of our technical engineers for more details
Get in touch

See the Reel Lifting – Rotary Tray Attachment in use

Features and Options

  • Full Bespoke Design Service to suit your specific requirements
  • Lift Height up to 1850mm (bespoke options up to 3000mm)
  • IP Rating IP30C or IP65
  • Standard or Wide Straddle Legs
  • Electric Lift with variable speed control option for precise movements
  • Optional adjustable height stop positions for repetitive lifting operations
  • Optional Position control
  • Optional Powered Locomotion
  • Wheels - Non-marking anti-static
  • Front Wheels - Stainless Steel 50mm / 85mm pallet wheels (rocking pallet or swivel castor options)
  • Rear Wheels - Stainless Steel 125mm Swivel castors with safety foot guard and brake system 'stop-fix'
  • Lift mechanism - ball screw with direct drive DC m
  • Interchangeable attachments
  • Digital Controls and Display with Remote Control or Joystick
  • Easy to manoeuvre with Small Footprint for narrow spaces
  • Ease of use, streamlined construction, and enhanced safety for end users
  • Flexible and Ergonomic design
  • Food, Pharma, Medical and FMCG Industries
  • CE and UKCA Compliant
  • Industries include Food, Drinks, Pharmaceutical, Medical, FMCG, Labelling & Printing, Automotive, Aerospace, Marine, Industrial & Warehouse

Safety Features

  • Emergency Stop Button
  • Overload limit - prevents exceeding SWL and accidental damage
  • Electro-mechanical brake holds load at required height in case of power failure
  • Rear swivel castors with safety foot guard and brake

Electrics

  • Mains Power Input for charging - 100-240VAC
  • Batteries - 24-volt 36 Amp AGM gel dual batteries
  • Battery Capacity - 400 Lift and Lower cycles (C150), 300 Lift and Lower cycles (C300)
  • Charging Cycle - 4-5 hours to full charge
  • Battery Charger - 5 Amp digital Intelligent Charger with advanced battery monitoring
  • Battery Meter - LED Visual Display showing charging status
  • Electrical Safety - Emergency E-stop button
  • Electrical overload protection - Immediate stop securely holding load in place
  • Electrics - 24v Programmable controllers

Datasheets

Reel Lifting Rotary Spindle Heavy Duty Rotating Tray Reel Lifting Rotary Spindle Rotary Tray with HD Option

Get in touch

Sending...
Uploading Files
Field is required
Field is required
Invalid email
  • Features & Options
  • Safety Features
  • Electrics
  • Product Data Sheets
  • Get in touch
Packline | Reel Lifting – Rotary Tray Attachment 1
Packline | Reel Lifting – Rotary Tray Attachment 2
Packline | Reel Lifting – Rotary Tray Attachment 3
Packline | Reel Lifting – Rotary Tray Attachment 4
Packline | Reel Lifting – Rotary Tray Attachment 5

Reel Lifting – Rotary Tray Attachment Overview

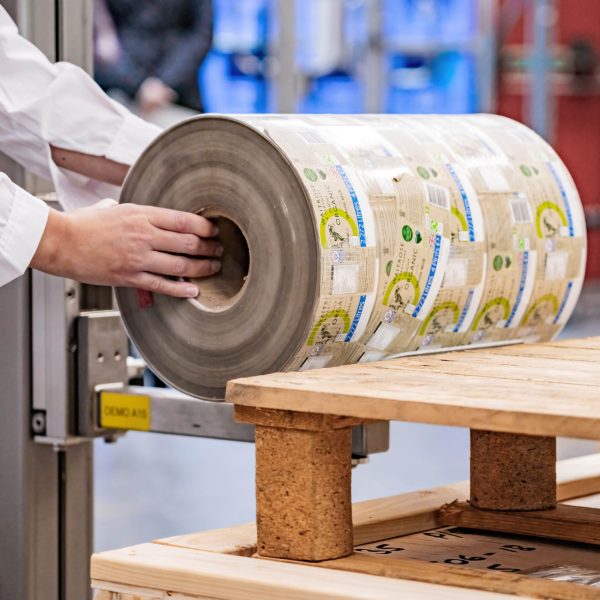

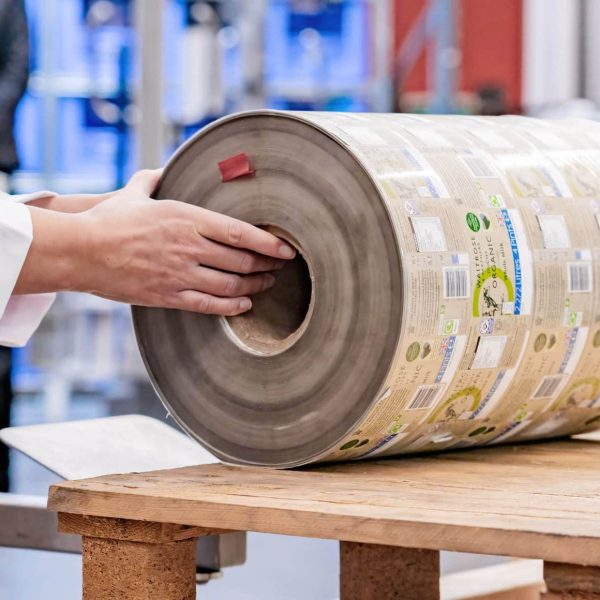

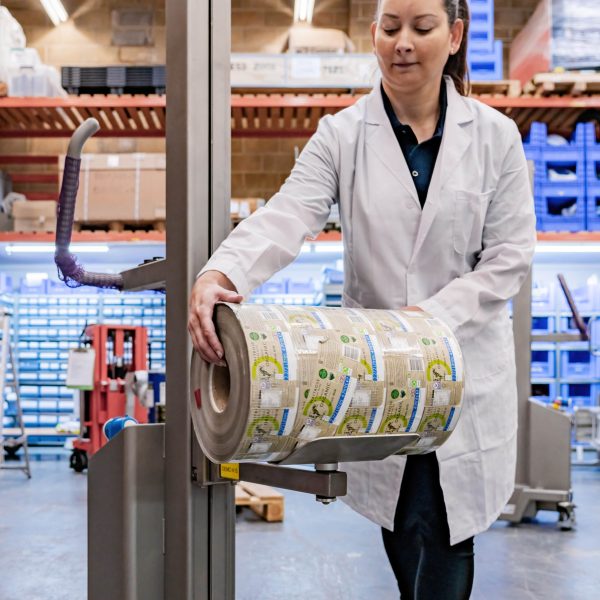

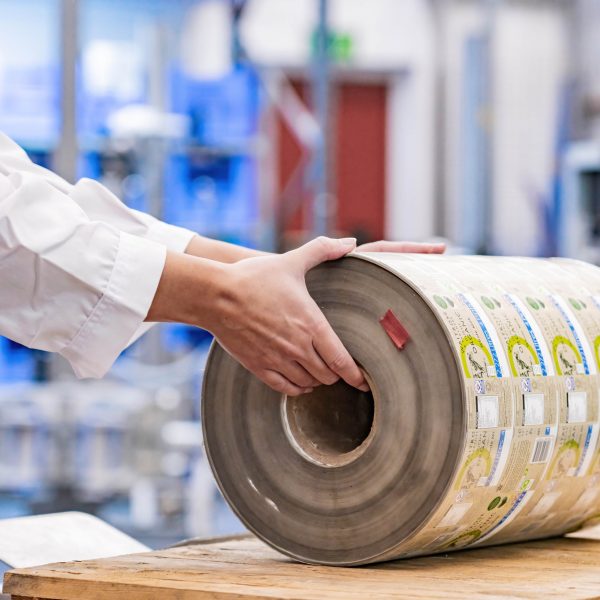

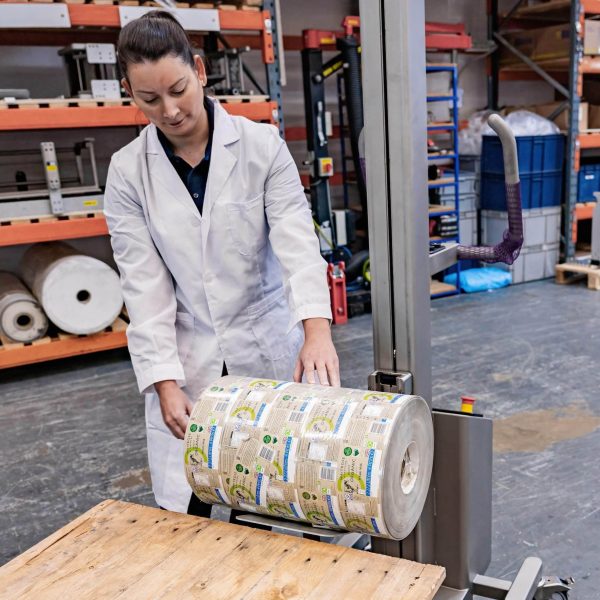

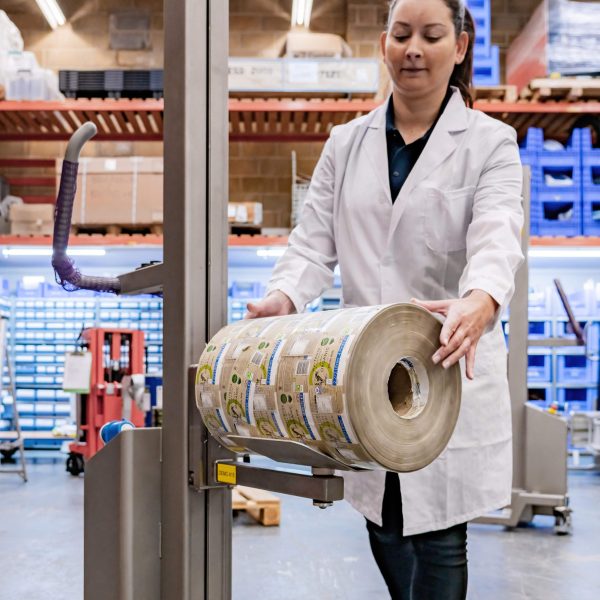

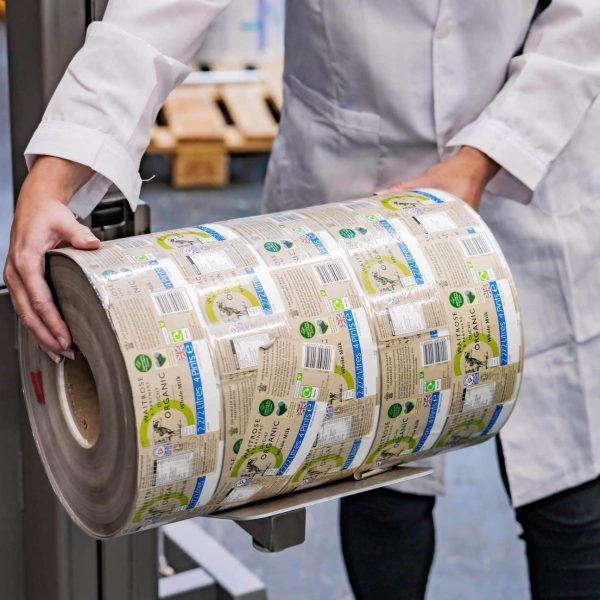

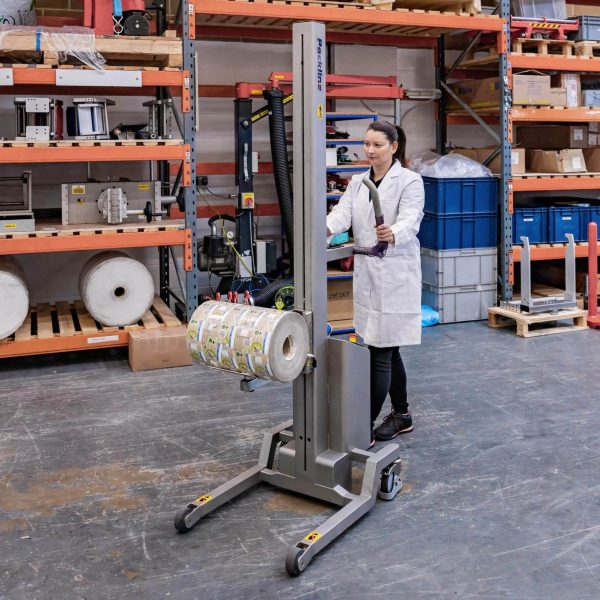

The Rotary Tray Attachment has been designed to support loads and allow them to rotate in the horizontal plane through 360°, suitable for lifting and positioning loads such as reels, rolls, drums, sacks, etc. Constructed from Stainless Steel the attachment is suitable for hygienic and clean room application.

Comprehensive Range

Available in a wide range of sizes as standard and backed up by a full bespoke design service ensuring the right solution can be provided for most applications.

Fully Interchangeable

Packline’s range of attachments are fully interchangeable and can be easily fixed or removed from any model of Compac Lifting Machine fitted with the unique quick release system. This quick release system enables one Compac Lifter to be used with multiple attachments providing an economical solution to a range of applications.

Packline | Reel Lifting – Rotary Tray Attachment 6
Packline | Reel Lifting – Rotary Tray Attachment 7
Packline | Reel Lifting – Rotary Tray Attachment 8
Packline | Reel Lifting – Rotary Tray Attachment 9
Packline | Reel Lifting – Rotary Tray Attachment 10
Packline | Reel Lifting – Rotary Tray Attachment 11
Packline | Reel Lifting – Rotary Tray Attachment 12
Packline | Reel Lifting – Rotary Tray Attachment 13
Packline | Reel Lifting – Rotary Tray Attachment 14

UK Manufacture & Design

Packline Materials Handling has been designing and manufacturing lifting and handling equipment in Poole, Dorset in the UK since 1993.
Packline | Reel Lifting – Rotary Tray Attachment 15

Bespoke Design services

The company’s in-house design facility and workshop enables high quality and effective solutions to be realised within short lead times.
