Reel Lifting – Cradle Attachment

Full Bespoke Design Service to suit your specific requirements
Handle reels by supporting mandrels positioned through the reel’s core
Stainless Steel Construction 304, 316/316L, Polished Finish options
Lift Capacity up to 300kg
UK Design and Manufacture
A wide range of industries including Food, Pharmaceutical, Medical and FMCG

Request a quote or connect with one of our technical engineers for more details

Get in touch

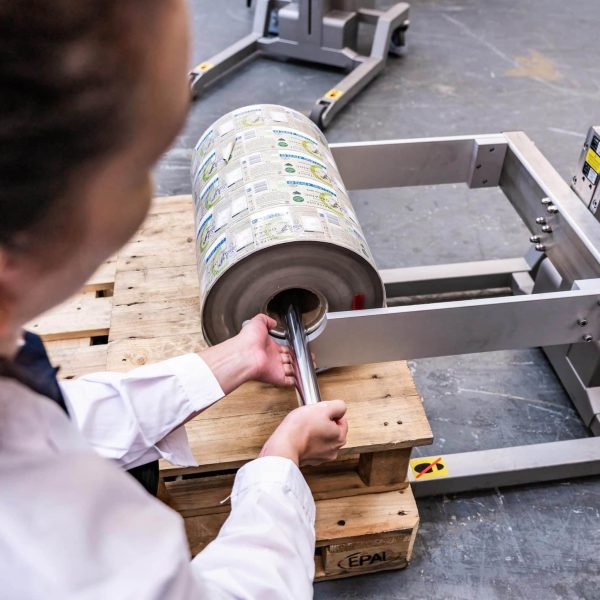

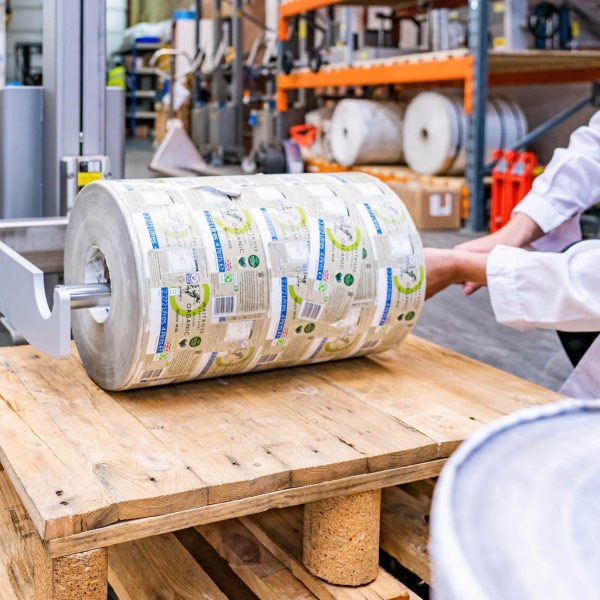

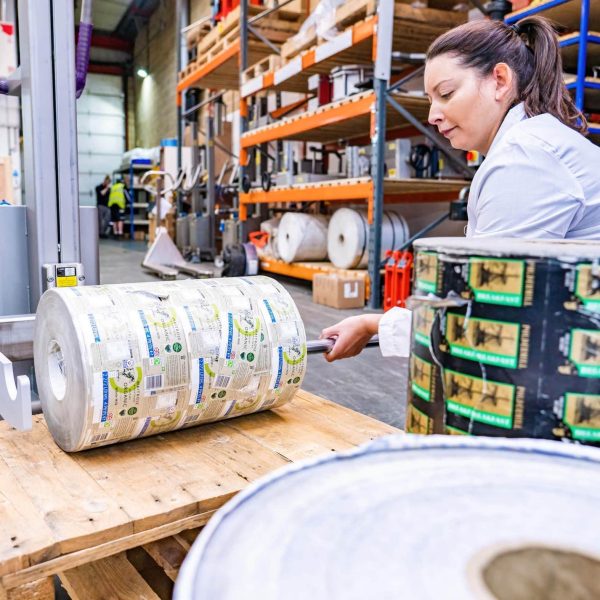

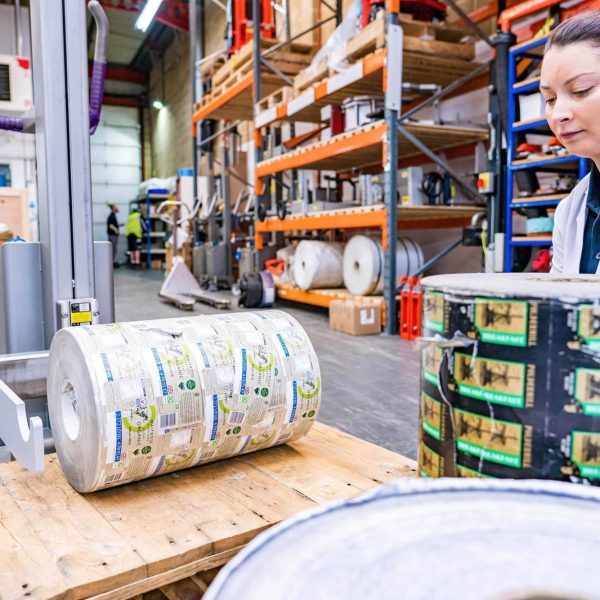

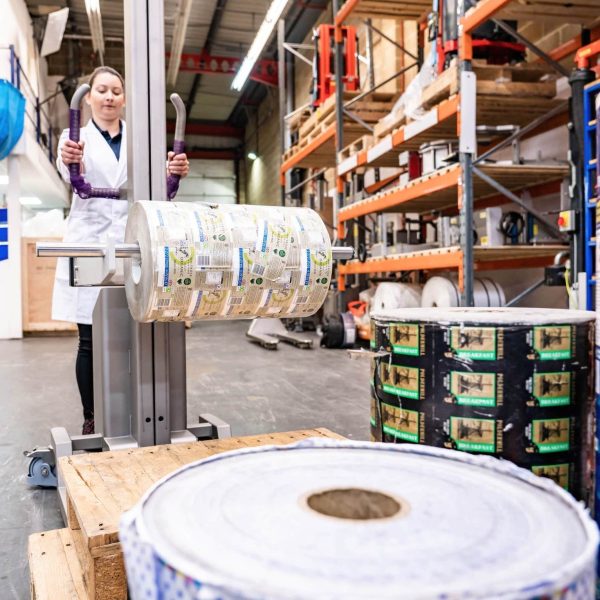

See the Reel Lifting – Cradle Attachment in use

Features and Options

Full Bespoke Design Service to suit your specific requirements
Lift Height up to 1850mm (bespoke options up to 3000mm)
IP Rating IP30C or IP65
Standard or Wide Straddle Legs
Electric Lift with variable speed control option for precise movements
Optional adjustable height stop positions for repetitive lifting operations
Optional Position control
Optional Powered Locomotion
Wheels - Non-marking anti-static
Front Wheels - Stainless Steel 50mm / 85mm pallet wheels (rocking pallet or swivel castor options)
Rear Wheels - Stainless Steel 125mm Swivel castors with safety foot guard and brake system 'stop-fix'
Lift mechanism - ball screw with direct drive DC motor
Interchangeable attachments
Easy to manoeuvre with Small Footprint for narrow spaces
Ease of use, streamlined construction, and enhanced safety for end users
Flexible and Ergonomic design
CE and UKCA Compliant
Industries include Food, Drinks, Pharmaceutical, Medical, FMCG, Labelling & Printing, Automotive, Aerospace, Marine, Industrial & Warehouse

Safety Features

Emergency Stop Button
Overload limit - prevents exceeding SWL and accidental damage
Electro-mechanical brake holds load at required height in case of power failure
Rear swivel castors with safety foot guard and brake

Electrics

Mains Power Input for charging - 100-240VAC
Batteries - 24-volt 36 Amp AGM gel dual batteries
Battery Capacity - 400 Lift and Lower cycles (C150), 300 Lift and Lower cycles (C300)
Charging Cycle - 4-5 hours to full charge
Battery Charger - 5 Amp digital Intelligent Charger with advanced battery monitoring
Battery Meter - LED Visual Display showing charging status
Electrical Safety - Emergency E-stop button
Electrical overload protection - Immediate stop securely holding load in place
Electrics - 24v Programmable controllers

Datasheets

Reel Lifting Cradle Attachment

Get in touch

Features & Options
Safety Features
Electrics
Product Data Sheet
Get in touch

Reel Lifting – Cradle Attachment Overview

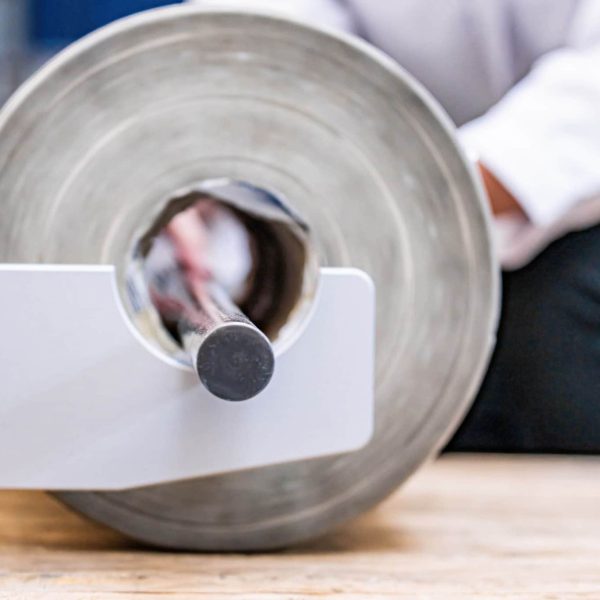

The Cradle Attachment has been designed to lift and transport reels or rolls of material by supporting mandrels positioned through the reel’s core.

Constructed from Stainless Steel and Aluminium, the Reel or Roll Lifting Cradle Attachment is suitable for hygienic and clean room application.

Comprehensive Range

Available in a wide range of configurations as standard and backed up by a full bespoke design service ensures the right solution can be provided for most applications.

Fully Interchangeable

Packline’s range of attachments are fully interchangeable and can be easily fixed or removed from any model of Compac Lifter fitted with the unique quick release system.

This quick release system enables one Compac Lifter to be used with multiple attachments providing an economical solution to a range of applications.
