Packline | Reel Lifting – Clamp Attachment 0

Reel Lifting – Clamp Attachment

Lifting & Handling Solutions> Stainless Steel Reel Handling
  • Manufactured to Customer Specifications
  • Stainless Steel Construction 304, 316/316L, Polished Finish options
  • Manual / Gearbox Assisted / Fully Motorised options
  • Lift Capacity up to 300kg
  • UK Design and Manufacture
  • A wide range of industries including Food, Pharmaceutical, Medical and FMCG
Request a quote or connect with one of our technical engineers for more details.
Get in touch

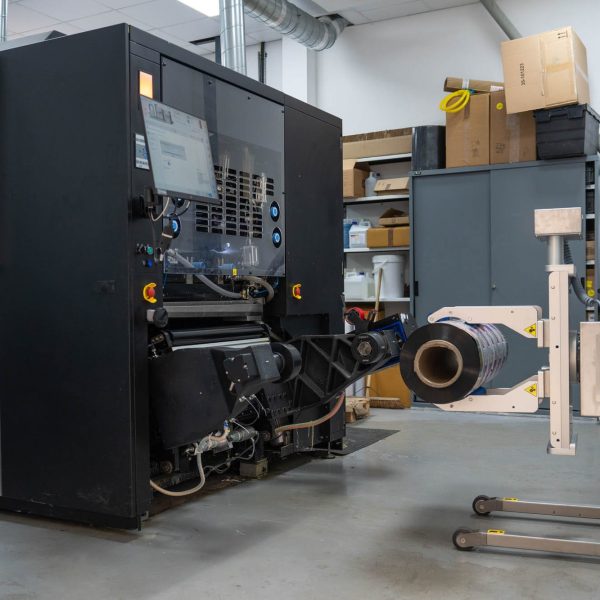

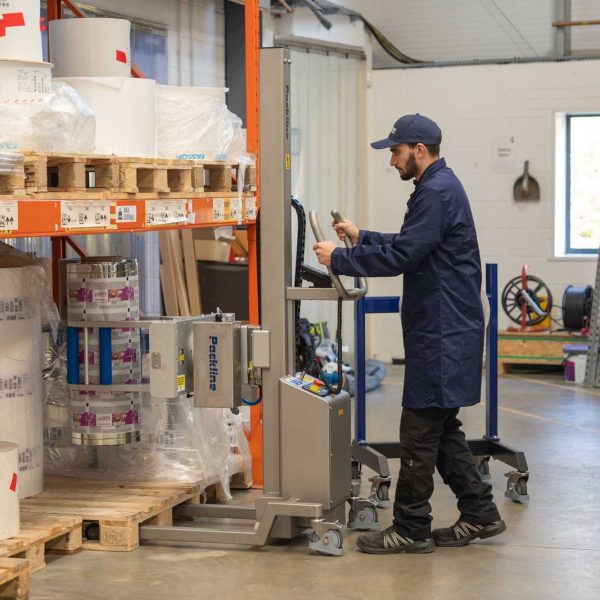

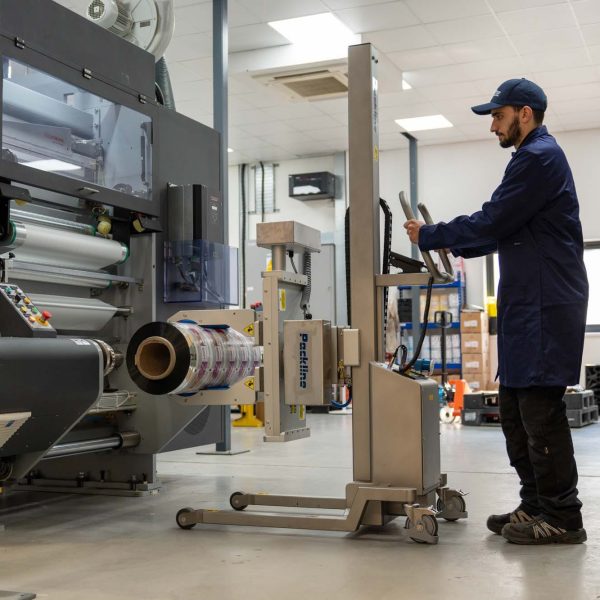

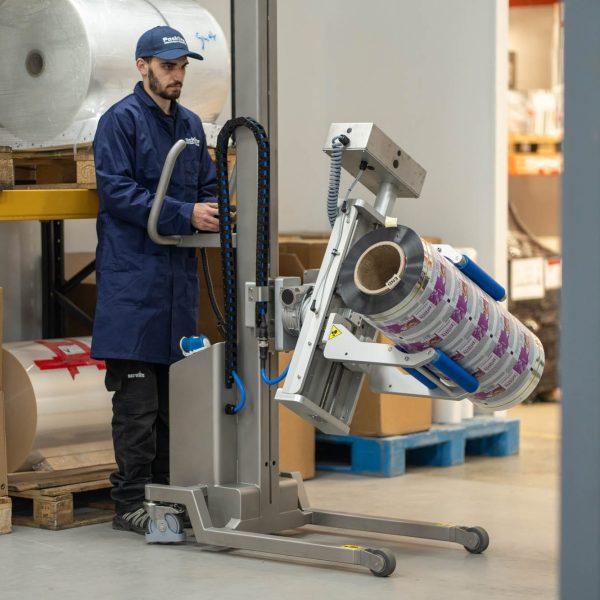

See the Reel Lifting – Clamp Attachment in use

Features and Options

  • Full Bespoke Design Service to suit your specific requirements
  • Fitted with Rotating FDA approved nitrile rubber rollers to provide maximum grip and assist alignment
  • Suitable for load diameters up to 850mm as standard (bespoke options available)
  • Mechanical torque mechanism to ensure correct gripping pressure is applied preventing over tightening and damage to load (manual and geared rotation)
  • Adjustable electronic torque control for motorised clamp functions
  • 360° Rotation of load (Motorised units can have rotation angles set to customer specifications)
  • Lift Height up to 1850mm (bespoke options up to 3000mm)
  • IP Rating IP30C or IP65
  • Standard or Wide Straddle Legs
  • Electric Lift with variable speed control option for precise movements
  • Optional adjustable height stop positions for repetitive lifting operations
  • Optional Position control
  • Optional Powered Locomotion
  • Wheels - Non-marking anti-static
  • Front Wheels - Stainless Steel 50mm / 85mm pallet wheels (rocking pallet or swivel castor options)
  • Rear Wheels - Stainless Steel 125mm Swivel castors with safety foot guard and brake system 'stop-fix'
  • Lift mechanism - ball screw with direct drive DC motor
  • Interchangeable attachments
  • Digital Controls and Display with Remote Control or Joystick
  • Easy to manoeuvre with Small Footprint for narrow spaces
  • Ease of use, streamlined construction, and enhanced safety for end users
  • Flexible and Ergonomic design
  • CE and UKCA Compliant
  • Industries include Food, Drinks, Pharmaceutical, Medical, FMCG, Labelling & Printing, Automotive, Aerospace, Marine, Industrial & Warehouse

Safety Features

  • Safety two-button function prevents the operator from inadvertently dropping the load
  • Emergency Stop Button
  • Overload limit - prevents exceeding SWL and accidental damage
  • Electro-mechanical brake holds load at required height in case of power failure
  • Rear swivel castors with safety foot guard and brake

Electrics

  • Mains Power Input for charging - 100-240VAC
  • Batteries - 24-volt 36 Amp AGM gel dual batteries
  • Battery Capacity - 400 Lift and Lower cycles (C150), 300 Lift and Lower cycles (C300)
  • Charging Cycle - 4-5 hours to full charge
  • Battery Charger - 5 Amp digital Intelligent Charger with advanced battery monitoring
  • Battery Meter - LED Visual Display showing charging status
  • Electrical Safety - Emergency E-stop button
  • Electrical overload protection - Immediate stop securely holding load in place
  • Electrics - 24v Programmable controllers

Datasheets

Reel Lifting Clamp Attachment Geared Rotation Reel Lifting Clamp Attachment Manual Rotation Reel Lifting Clamp Attachment Motorised Clamping and Rotation Reel Lifting Clamp Attachment Motorised Rotation

Get in touch

Sending...
Uploading Files
Field is required
Field is required
Invalid email
  • Features & Options
  • Safety Features
  • Electrics
  • Product Data Sheets
  • Get in touch
Packline | Reel Lifting – Clamp Attachment 1
Packline | Reel Lifting – Clamp Attachment 2
Packline | Reel Lifting – Clamp Attachment 3

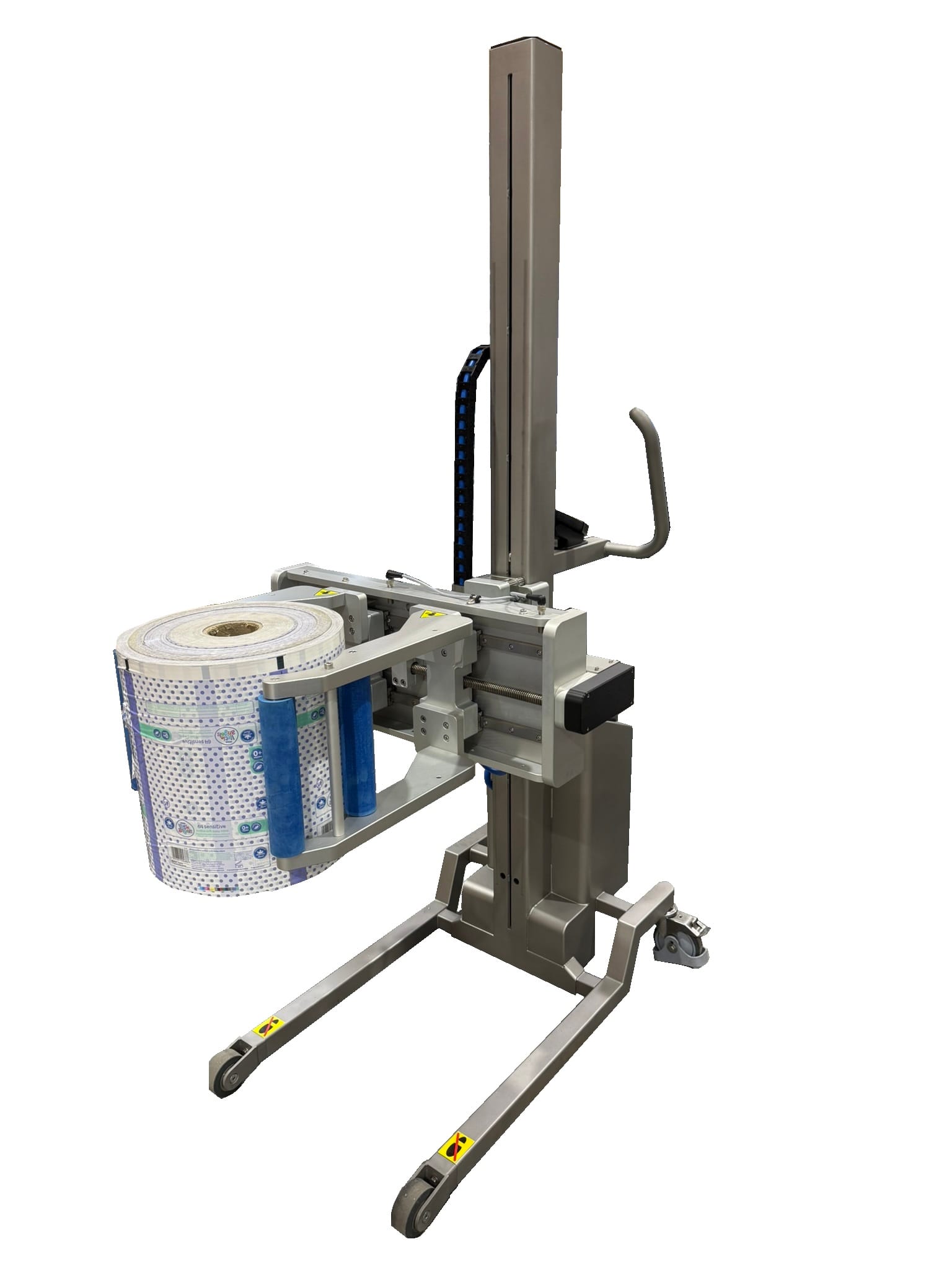

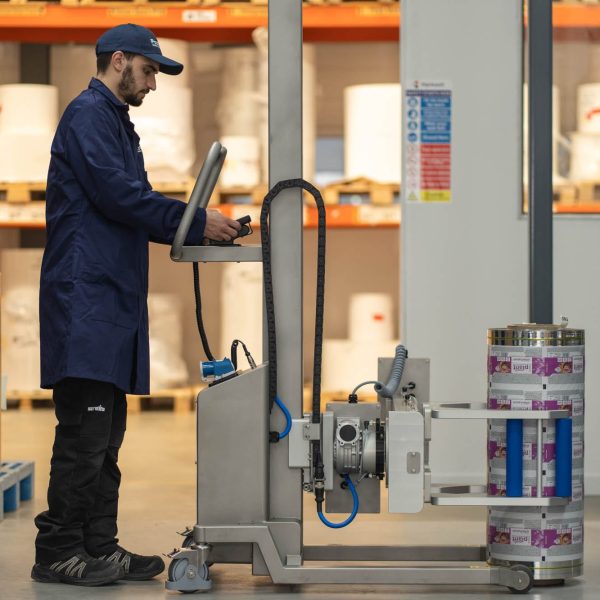

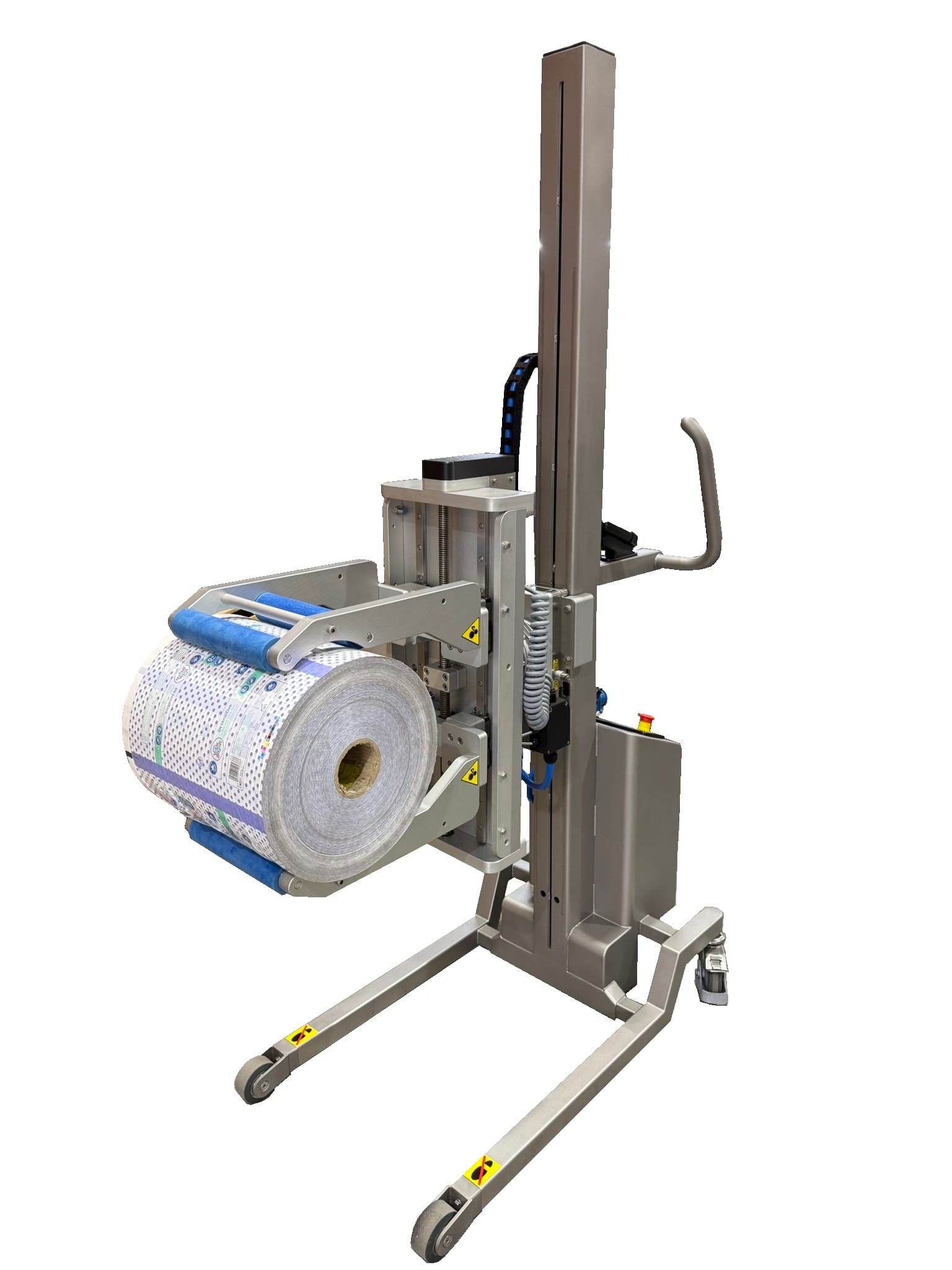

Reel Lifting – Clamp Attachment Overview

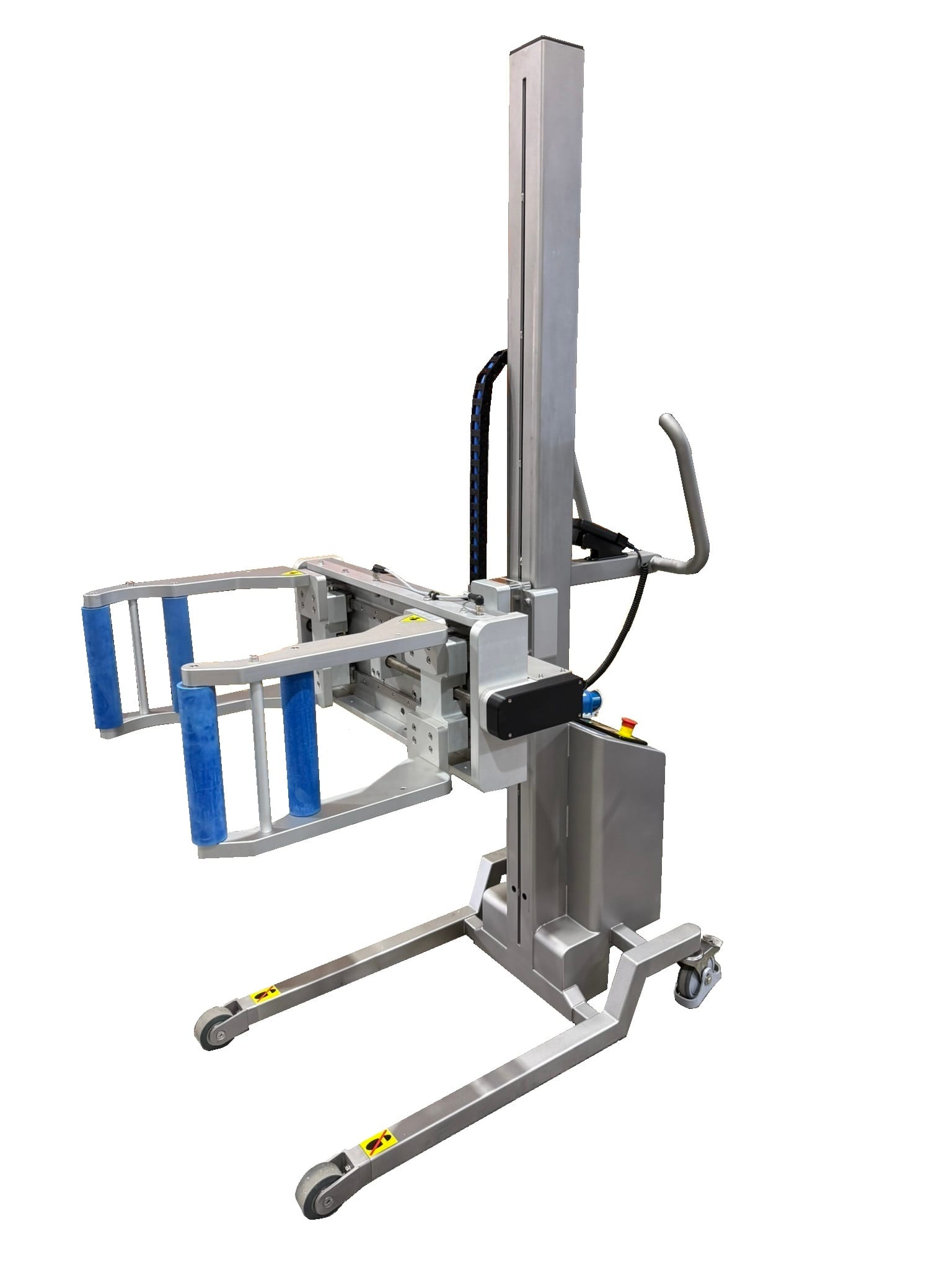

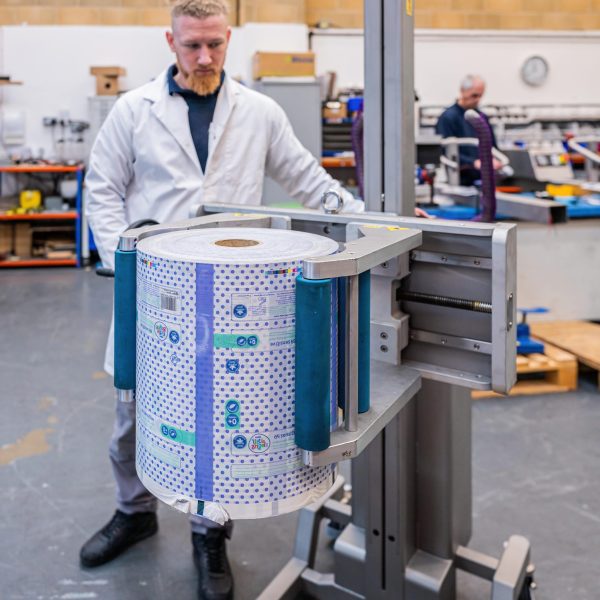

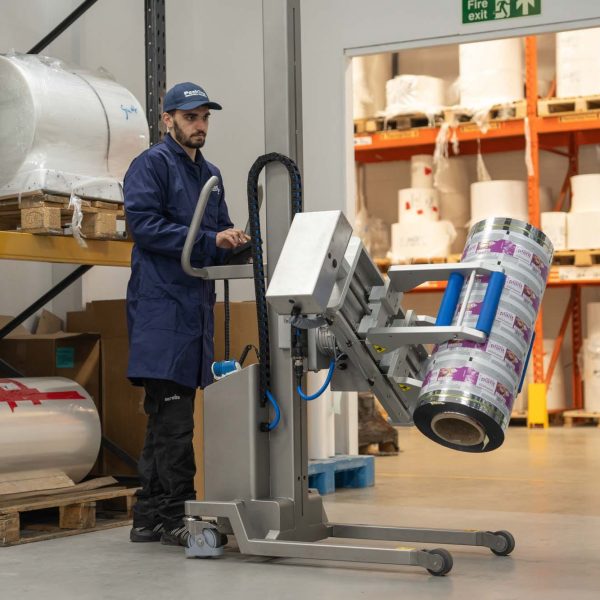

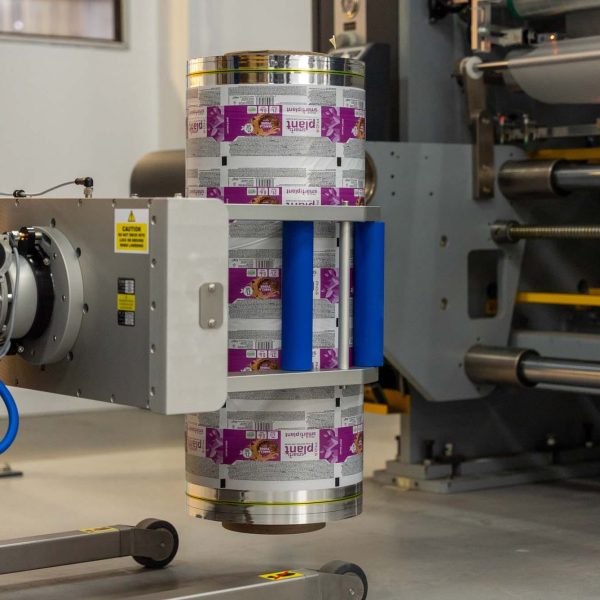

Designed to firmly grip the reel by the external diameter or circumference and rotate to any position through 360°.

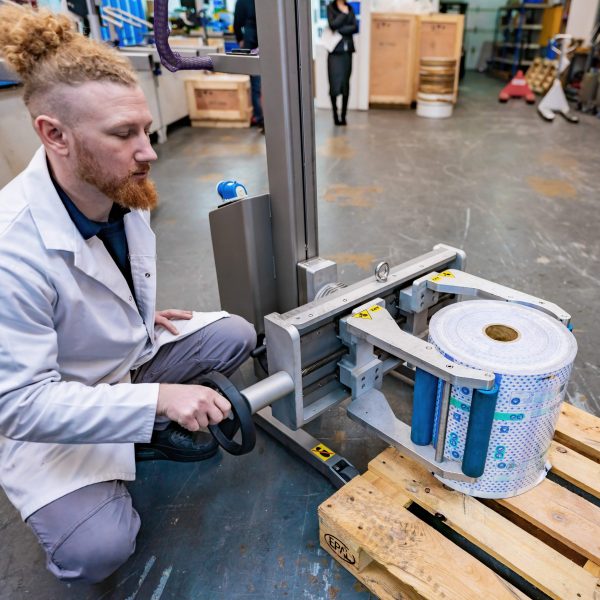

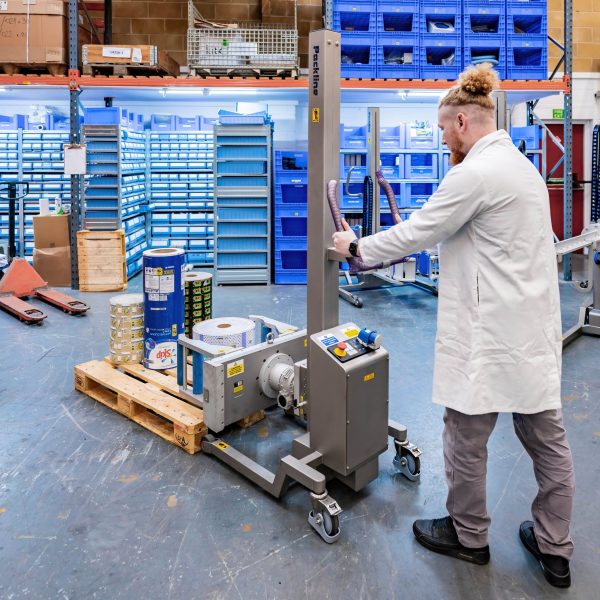

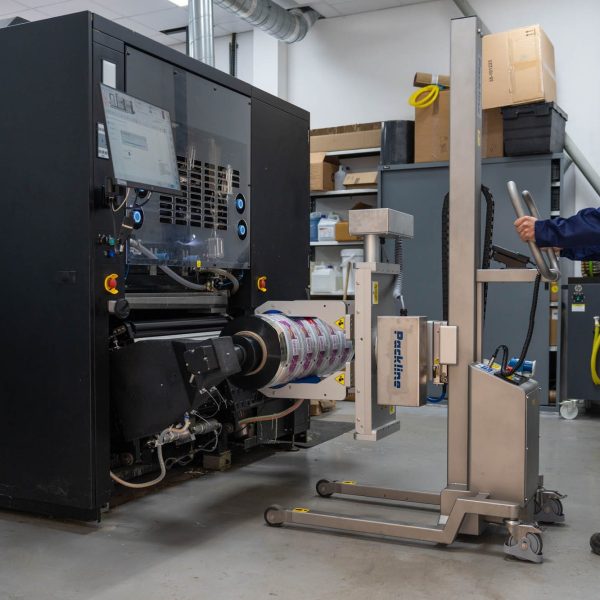

The clamp attachment features manual, gearbox assisted or fully powered rotation of the reels.

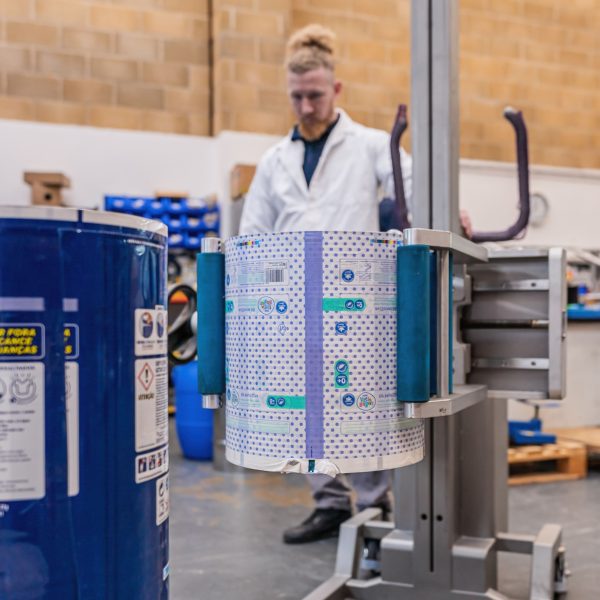

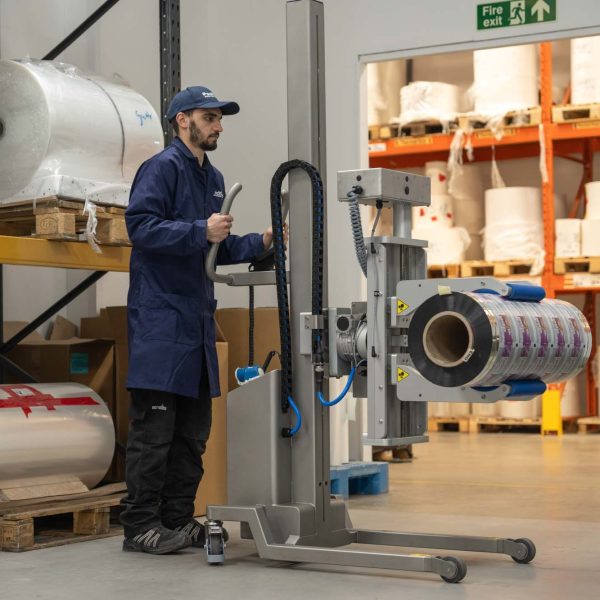

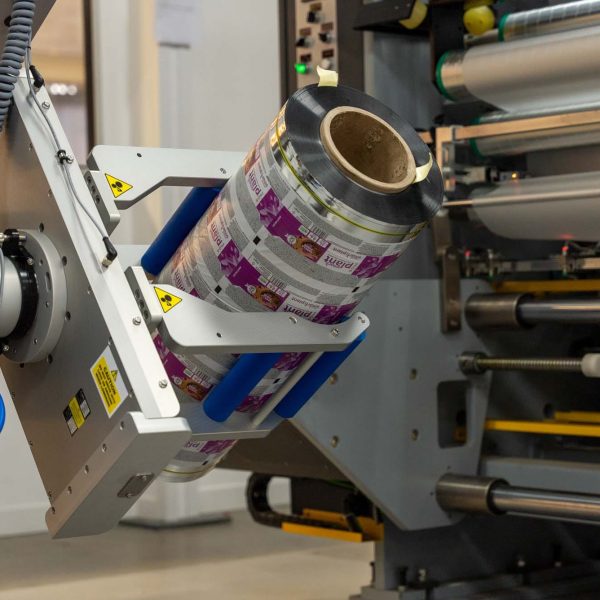

The clamp attachment is fitted with rotating nitrile rubber rollers to provide maximum grip and assist alignment.

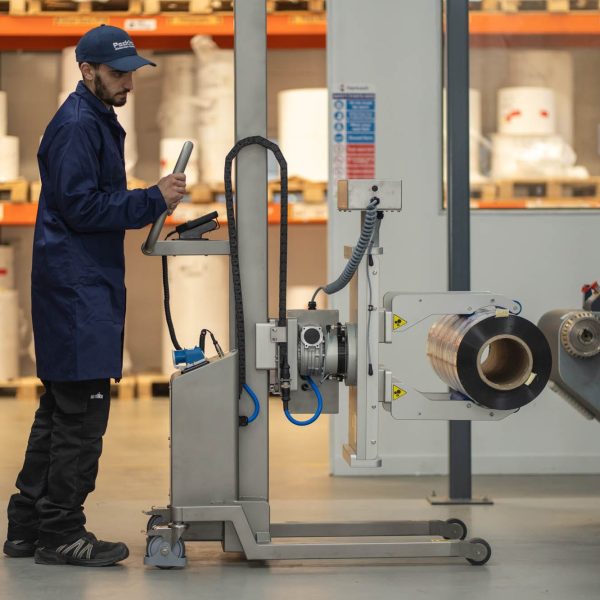

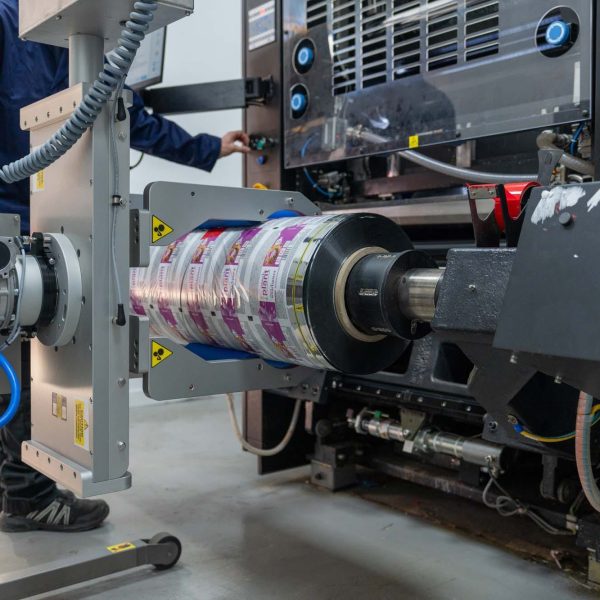

A built-in slip torque mechanism ensures correct gripping pressure is applied preventing over-tightening and damage to the roll. The motorised rotation clamp features an electronic torque mechanism for precision gripping.

Packline’s range of attachments are fully interchangeable and can be easily fixed or removed from any model of Compac fitted with the unique quick release system.
