Reel Handling Equipment – Vertical Spindle (Manual)

Lifting & Handling Solutions> Stainless Steel Reel Handling
  • Manufactured to Customer Specifications
  • Stainless Steel Construction 304, 316/316L, Polished Finish options
  • Manual Rotation of Reel through 180°
  • Lift Capacity up to 300kg
  • UK Design and Manufacture
  • A wide range of industries including Food, Pharmaceutical, Medical and FMCG
Request a quote or connect with one of our technical engineers for more details.
Get a quote

See the Reel Handling Equipment – Vertical Spindle (Manual) in use

Features and Options

  • Full Bespoke Design Service to suit your specific requirements
  • Manual / Gearbox Assisted / Fully Motorised options
  • Reel core sizes 3” (76mm) or 6” (152mm) other bespoke core sizes available upon request
  • Lift Height up to 1850mm (bespoke options up to 3000mm)
  • IP Rating IP30C or IP65
  • Standard or Wide Straddle Legs
  • Electric Lift with variable speed control option for precise movements
  • Optional adjustable height stop positions for repetitive lifting operations
  • Optional Position control
  • Optional Powered Locomotion
  • Adjustable electronic torque control for clamp functions and Powered Vertical Spindle grip
  • Wheels - Non-marking anti-static
  • Front Wheels - Stainless Steel 50mm / 85mm pallet wheels (rocking pallet or swivel castor options)
  • Rear Wheels - Stainless Steel 125mm Swivel castors with safety foot guard and brake system 'stop-fix'
  • Lift mechanism - ball screw with direct drive DC motor
  • Interchangeable attachments
  • Digital Controls and Display with Remote Control or Joystick
  • Easy to manoeuvre with Small Footprint for narrow spaces
  • Ease of use, streamlined construction, and enhanced safety for end users
  • Flexible and Ergonomic design
  • CE and UKCA Compliant
  • Industries include Food, Drinks, Pharmaceutical, Medical, FMCG, Labelling & Printing, Automotive, Aerospace, Marine, Industrial & Warehouse

Safety Features

  • Safety two-button function prevents the operator from inadvertently dropping the load
  • Emergency Stop Button
  • Overload limit - prevents exceeding SWL and accidental damage
  • Electro-mechanical brake holds load at required height in case of power failure
  • Rear swivel castors with safety foot guard and brake

Electrics

  • Mains Power Input for charging - 100-240VAC
  • Batteries - 24-volt 36 Amp AGM gel dual batteries
  • Battery Capacity - 400 Lift and Lower cycles (C150), 300 Lift and Lower cycles (C300)
  • Charging Cycle - 4-5 hours to full charge
  • Battery Charger - 5 Amp digital Intelligent Charger with advanced battery monitoring
  • Battery Meter - LED Visual Display showing charging status
  • Electrical Safety - Emergency E-stop button
  • Electrical overload protection - Immediate stop securely holding load in place
  • Electrics - 24v Programmable controllers

Datasheets

Reel Handling Equipment Vertical Spindle Manual 3in Reel Handling Equipment Vertical Spindle Manual 6in

Get in touch

Sending...
Uploading Files
Field is required
Field is required
Invalid email
  • Features & Options
  • Safety Features
  • Electrics
  • Product Data Sheets
  • Get in touch
Packline | Reel Handling Equipment – Vertical Spindle (Manual) 1
Packline | Reel Handling Equipment – Vertical Spindle (Manual) 2
Packline | Reel Handling Equipment – Vertical Spindle (Manual) 3
Packline | Reel Handling Equipment – Vertical Spindle (Manual) 4
Packline | Reel Handling Equipment – Vertical Spindle (Manual) 5

Reel Handling Equipment – Vertical Spindle (Manual) Overview

Used for lifting, handling and rotating reels or rolls of film by gripping the reel’s core, the reel handling equipment with vertical spindle attachment is available in a wide range of sizes and configurations as standard and capable of lifting loads of up to 300kg.

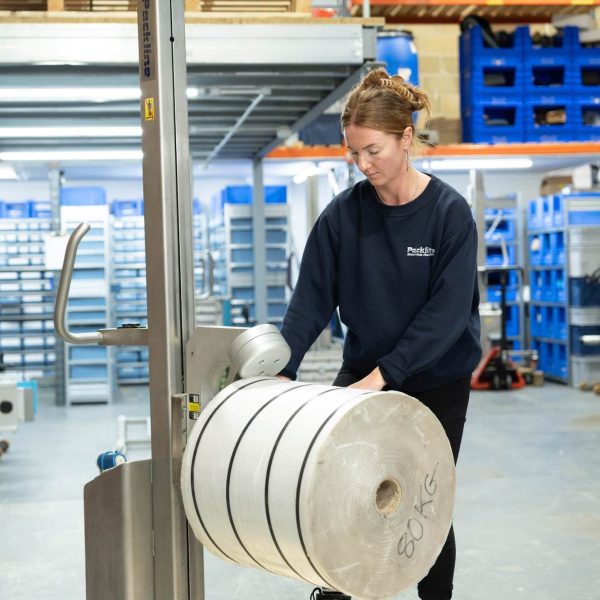

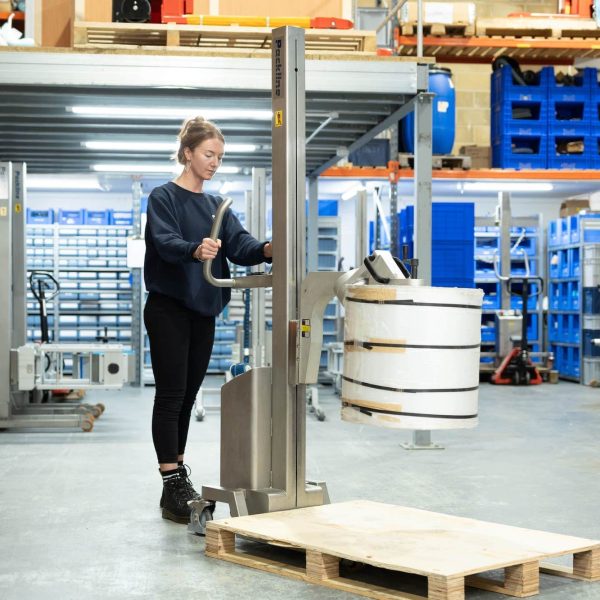

This model grips the reel via the core and is rotated manually through 180° using ergonomically designed handles.

For applications outside of the standard range the company provides a full bespoke design service offering solutions for most applications.

Packline’s range of attachments are fully interchangeable and can be easily fixed or removed from any model of Compac fitted with the unique quick release system.
