Overhead Reel Clamp Attachment

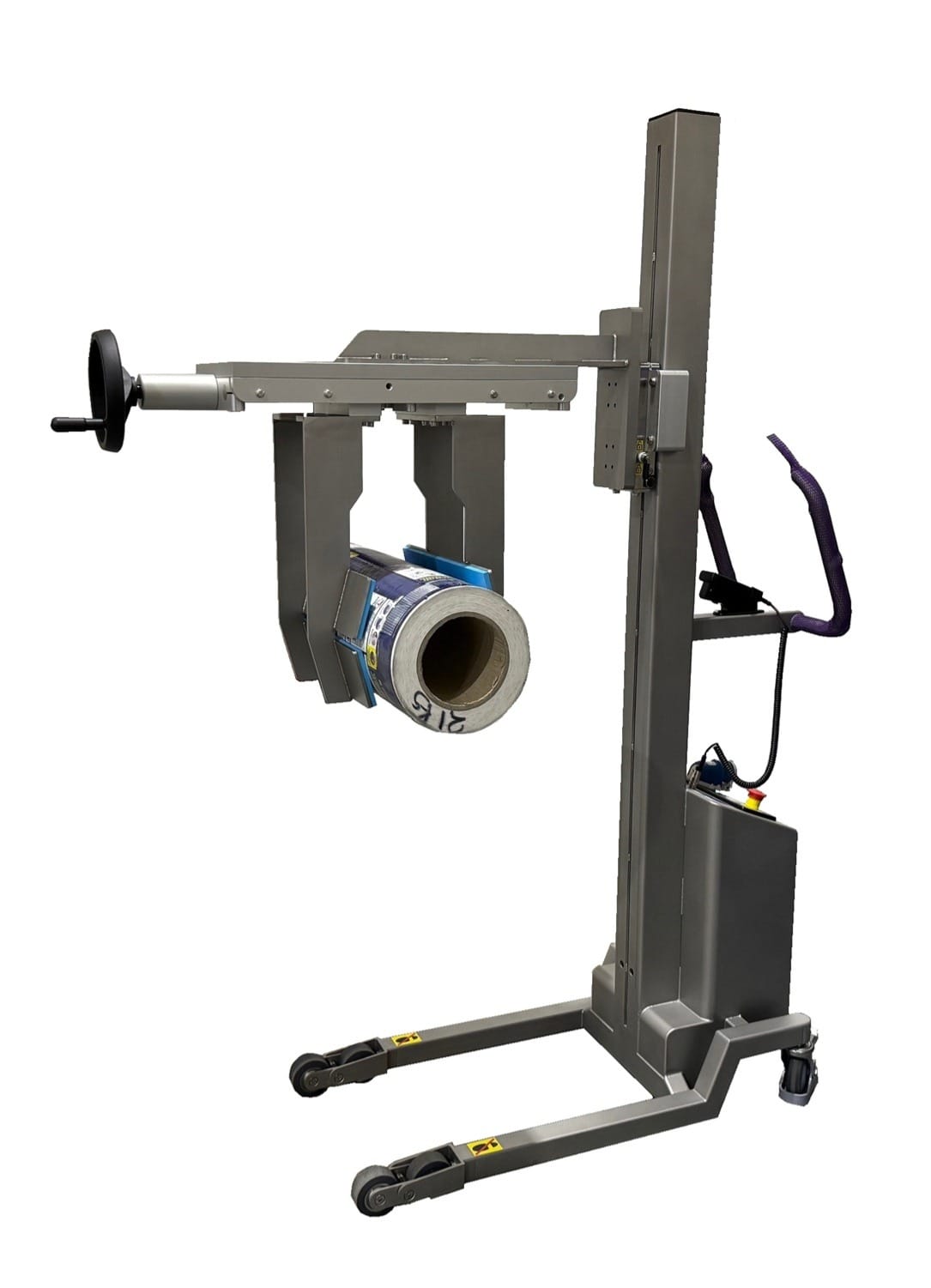

The Geared Overhead Clamp Attachment from Packline is a specialist solution designed to lift reels and rolls safely and efficiently from pallets onto processing lines. This bespoke reel handling attachment allows reels to be lifted securely from above, keeping the reel core accessible for mandrel insertion and downstream operations.

This reel lifting solution is particularly effective for handling rolls delivered two per pallet in a horizontal arrangement, overcoming the challenges of lifting large, heavy rolls in confined spaces.

Reel Specifications

• Reel Width: 2200 mm
• Reel Diameter: 445 mm
• Reel Weight: 78 kg
• Pallet Size: 1500 x 1000 mm, four-way entry, closed bottom

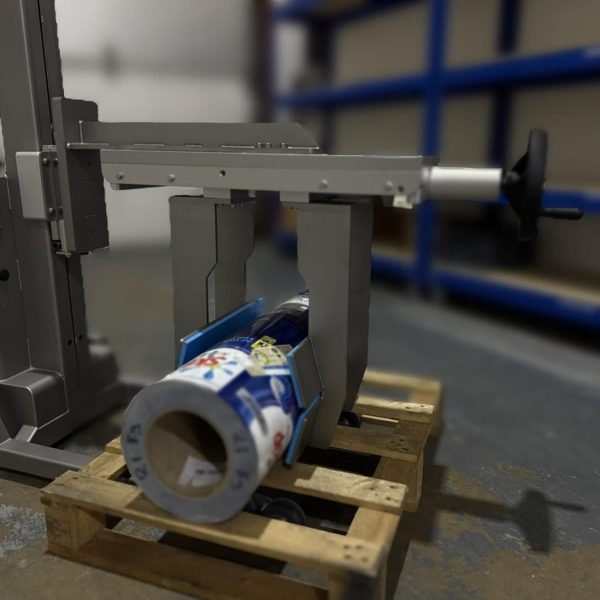

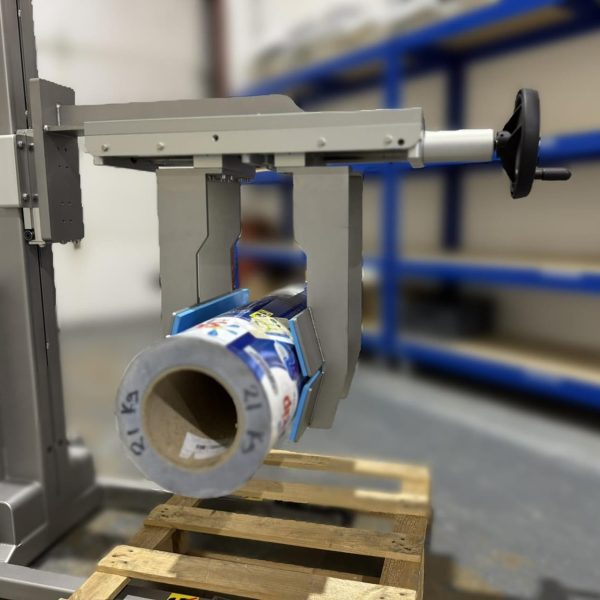

By gripping the reel securely by its outer diameter, the attachment ensures the reel can be lifted directly from the pallet, leaving the core free for immediate use on the processing line.

Key Features of the Overhead Clamp Attachment

• Precision Geared Clamping Mechanism – Operated by a handwheel for secure and accurate engagement with the reel’s outer diameter.
• Electric Lift with Remote Control – Provides smooth, safe, and effortless lifting and lowering.
• Stainless Steel Construction – Built from high-grade stainless steel, ensuring durability and full compatibility with food production and pharmaceutical clean room environments.

Technical Specifications

• Material: High-grade stainless steel (hygienic and clean room compliant)
• Reel Core Sizes Supported: 3” (76 mm) or 6” (152 mm)
• Maximum Load Capacity: 300 kg
• Attachment Type: Overhead Clamp Attachment
• Attachments: Fully interchangeable with Packline lifting equipment

Benefits of Packline’s Overhead Reel Clamp Attachment

• Bespoke Design – Engineered to meet unique customer requirements for specialist reel and roll handling.
• Clean Room Compatible – Ideal for sensitive environments such as food processing, pharmaceutical, and high-care manufacturing facilities.
• Improved Efficiency – Lifts reels from above while leaving the core free, enabling seamless mandrel insertion and faster integration with processing lines.
• Safe and Reliable Handling – Reduces manual handling risks and ensures consistent, controlled reel lifting operations.

Why Choose Packline for Reel Handling Equipment?

With over 30 years of expertise in reel and roll handling solutions, Packline provides custom-engineered attachments that improve safety, efficiency, and hygiene standards. Our stainless-steel equipment is designed for demanding industries where precision, cleanliness, and reliability are essential.
