Omniboom Attachment with Multi-directional Rollers

Manufactured to Customer Specifications
Multi-directional rollers allow for easy transfer of reels
Rotate reels in situ for unwinding and precise cutting of reel material as needed
Stainless Steel Construction 304, 316/316L, Polished Finish options
UK Design and Manufacture
A wide range of industries including Food, Pharmaceutical, Medical and FMCG

Request a quote or connect with one of our technical engineers for more details

Get in touch

See the Omniboom Attachment with Multi-directional Rollers in use

Features and Options

Full Bespoke Design Service to suit your specific requirements

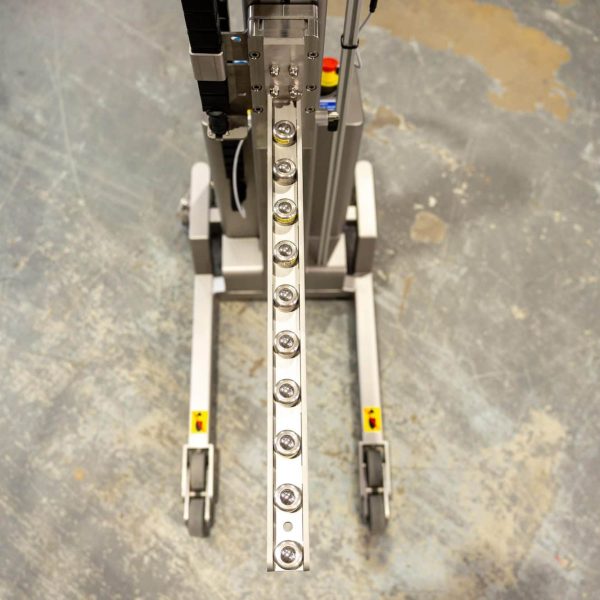

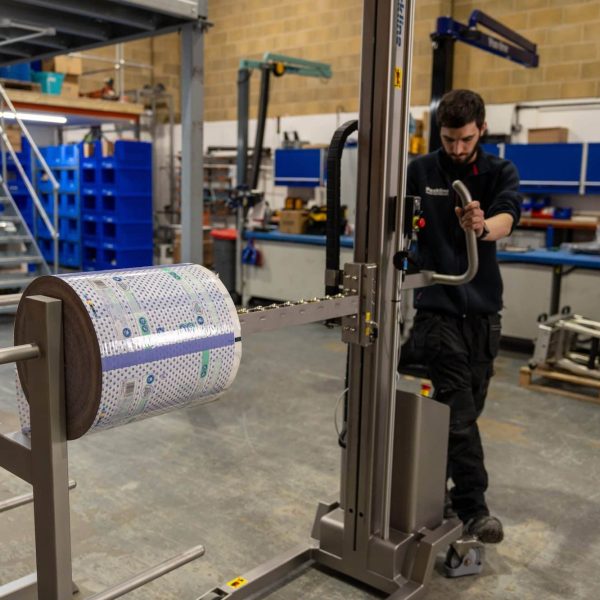

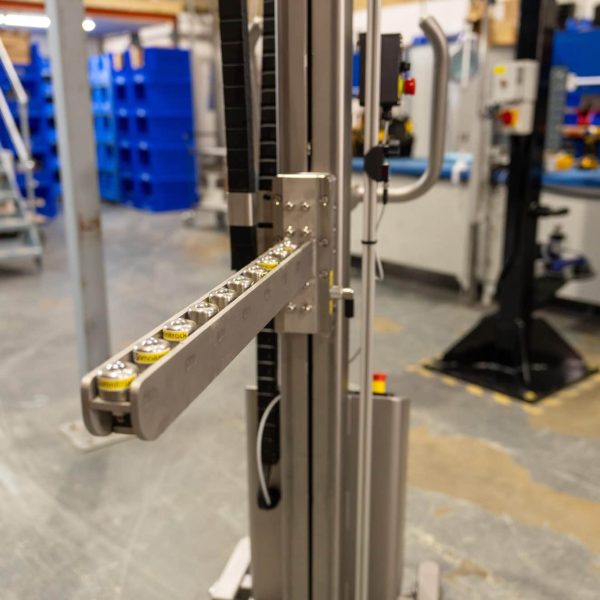

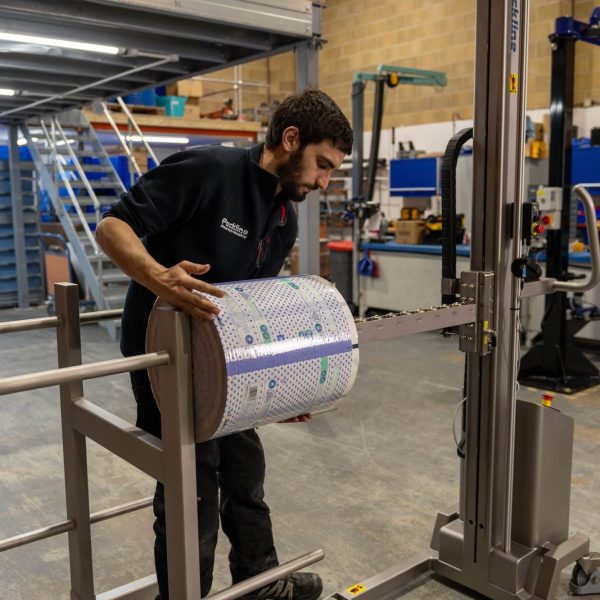

Multi-directional rollers allow for easy transfer of rolls onto and from the single spindle attachment

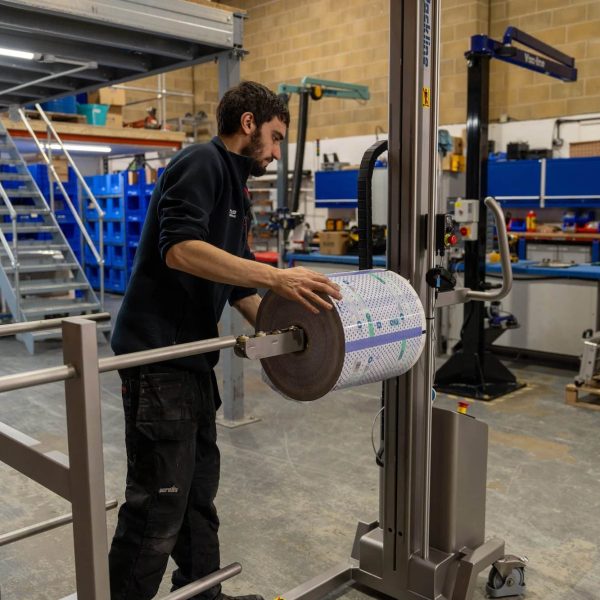

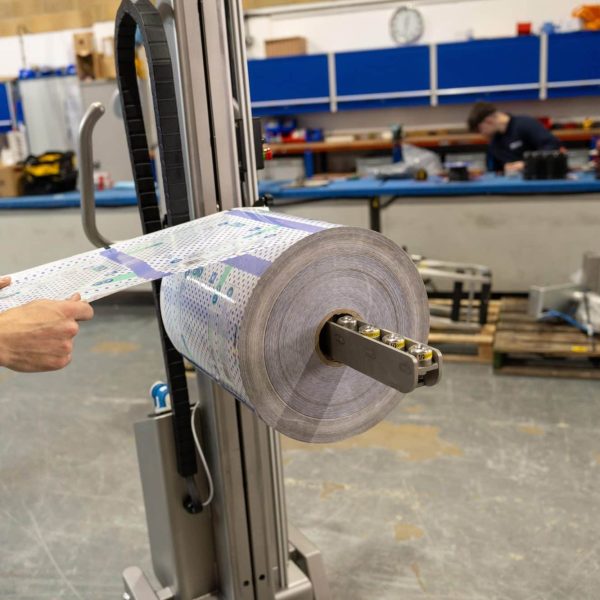

Operators can rotate rolls in place while still on the Omni-Boom, enabling unwinding and precise cutting of roll material as needed

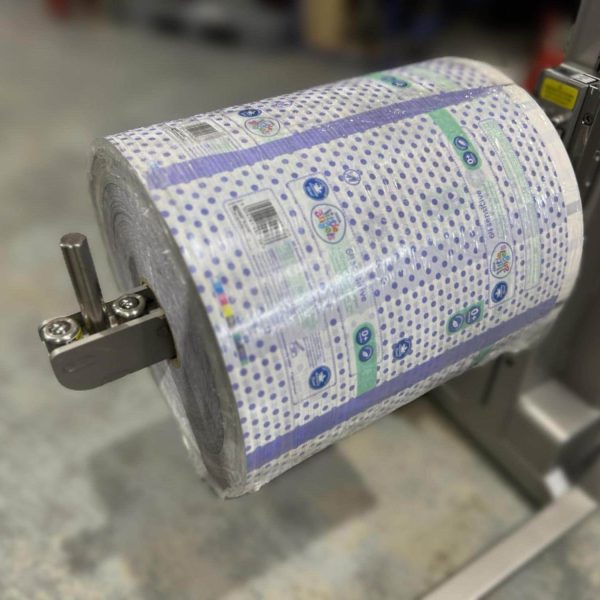

A secure retaining stop-pin at the end of the 'Omni-Boom' ensures reels remain firmly in place on the single spindle attachment during handling.
Lift Capacity up to 300kg
Reel core sizes 3” (76mm) or 6” (152mm) other bespoke core sizes available upon request
Lift Height up to 1850mm (bespoke options up to 3000mm)
IP Rating IP30C or IP65
Standard or Wide Straddle Legs
Electric Lift with variable speed control option for precise movements
Optional adjustable height stop positions for repetitive lifting operations
Optional Position control
Optional Powered Locomotion
Wheels - Non-marking anti-static
Front Wheels - Stainless Steel 50mm / 85mm pallet wheels (rocking pallet or swivel castor options)
Rear Wheels - Stainless Steel 125mm Swivel castors with safety foot guard and brake system 'stop-fix'
Interchangeable attachments

Safety Features

Emergency Stop Button
Overload limit - prevents exceeding SWL and accidental damage
Electro-mechanical brake holds load at required height in case of power failure
Rear swivel castors with safety foot guard and brake

Electrics

Mains Power Input for charging - 100-240VAC
Batteries - 24-volt 36 Amp AGM gel dual batteries
Battery Capacity - 400 Lift and Lower cycles (C150), 300 Lift and Lower cycles (C300)
Charging Cycle - 4-5 hours to full charge
Battery Charger - 5 Amp digital Intelligent Charger with advanced battery monitoring
Battery Meter - LED Visual Display showing charging status
Electrical Safety - Emergency E-stop button
Electrical overload protection - Immediate stop securely holding load in place
Electrics - 24v Programmable controllers

Datasheets

Reel Lifting Omniboom Attachment Rotate and Cut Reels

Get in touch

Request an On-Site Demo Machine

Get in touch
Book a Demo
Features & Options
Safety Features
Electrics
Product Data Sheet

Omniboom Attachment with Multi-directional Rollers Overview

Omni-Boom Reel Lifting Attachment – Effortless Multi-Directional Reel Handling

Enhance Efficiency with the Omni-Boom Reel Lifter

The Omni-Boom Reel Lifting Attachment is designed for seamless roll handling, offering multi-directional rotation to streamline material transfer and processing; enabling operators to rotate and cut the roll film in place while also ensuring easy transfer of the rolls from storage to the processing machine. This innovative attachment simplifies the movement of reels from storage to the production line while ensuring maximum operator control and efficiency.

Key Features & Benefits:

Multi-Directional Rollers for Easy Transfer

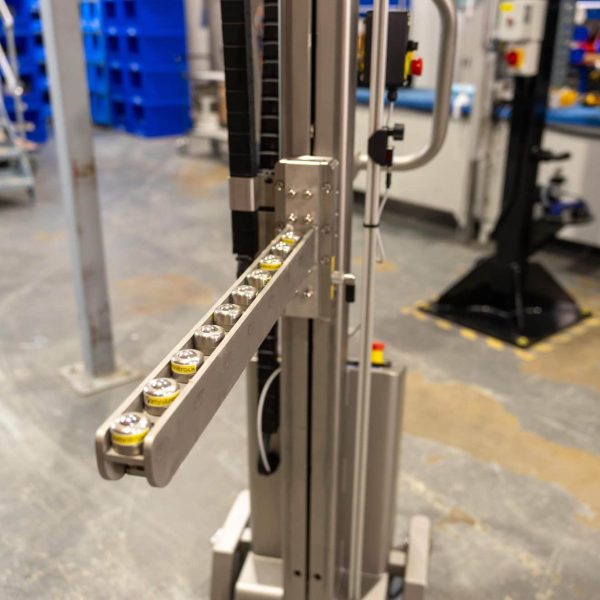

The Omni-Boom features precision-engineered multi-directional rollers along its length, allowing for smooth and effortless loading and unloading of reels onto the single spindle attachment. This ensures quick and efficient handling with minimal effort.

On-the-Spot Rotation for Unwinding & Cutting
Operators can rotate reels in place while still secured on the Omni-Boom, making it easy to unwind material and cut precise lengths as needed—improving workflow efficiency and reducing downtime.
Secure Handling with Retaining ‘Stop-Pin’ Protection
A built-in ‘stop-pin’ at the end of the Omni-Boom ensures that reels remain securely fastened during handling, preventing accidental slippage and ensuring safe operation.

The Omni-Boom:
