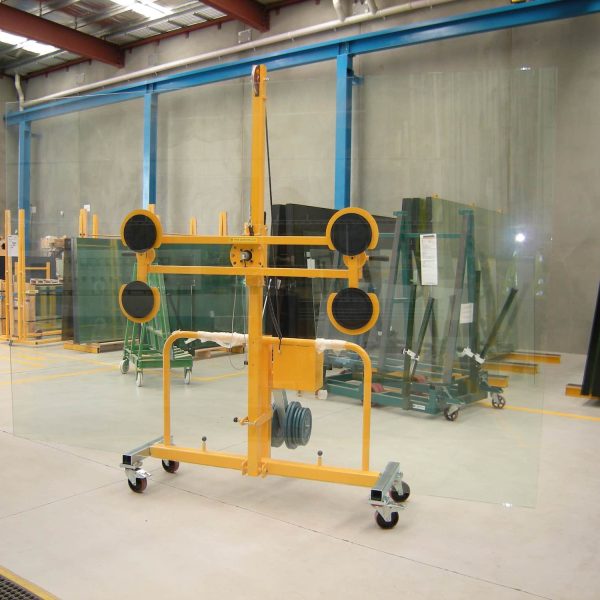

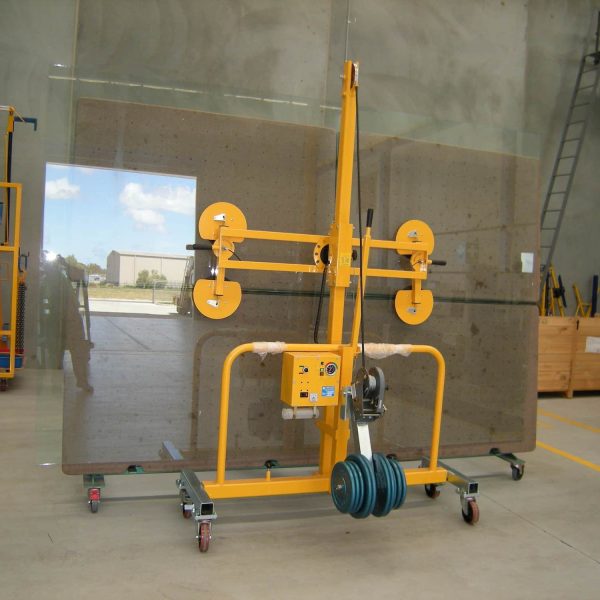

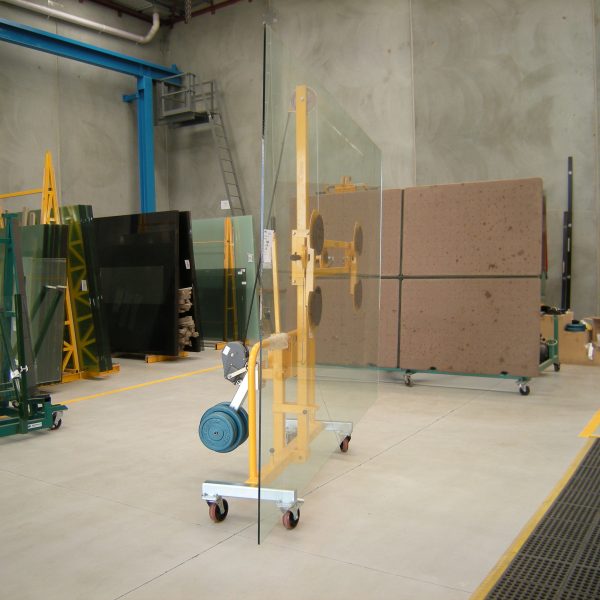

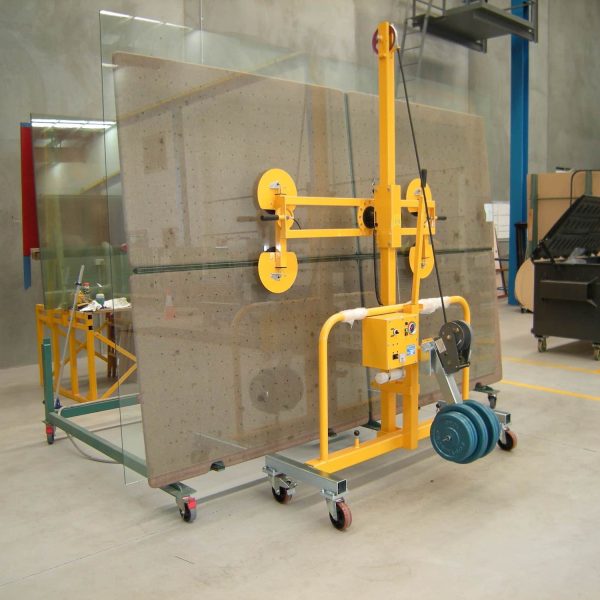

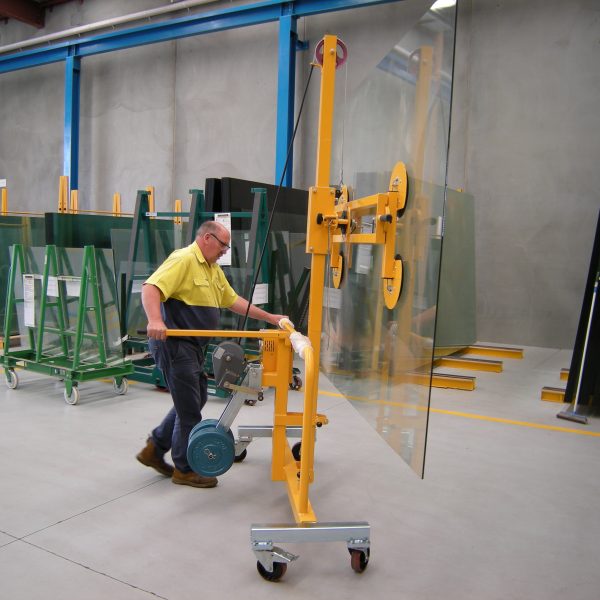

Mule 300/660

Features and Options

• Assists glass workers to unload, rotate and transport large plates of glass
• Allows glazing shops to handle heavy glass on and off edgework machines, glass dollies and trucks with greater safety and ease
• Lifting capacity of 300kg and can be operated by one person
• Rotate glass 360 degrees allowing long and heavy sheets of glass to be loaded onto an edgework machine
• The Mule is operated by a portable DC vacuum pump applying a vacuum to four 11″ suction cups
• The vacuum pump arms can be swivelled allowing for long narrow plates to be handled safely
• Can be used as an alternative to an overhead crane to handle heavy sheets of glass
• Can safely load trucks outside the glazing shop
• The Mule 660 can be fitted with an electrical winch and increasing the load rating to 500 Kg’s (1100 Lbs)
• Dual vacuum system optional modification
