Lifting & Handling Solutions> Stainless Steel Reel Handling
Packline | Lifting Frames to handle Reels of Film and Material 0

Lifting Frames to handle Reels of Film and Material

Lifting & Handling Solutions> Stainless Steel Reel Handling
  • Manufactured to Customer Specifications
  • Handle long rolls onto spin wrapping / Octopus line machines
  • Stainless Steel Construction 304, 316/316L, Polished Finish options
  • Lift Capacity up to 300kg
  • UK Design and Manufacture
  • A wide range of industries including Food, Pharmaceutical, Medical and FMCG
Request a quote or connect with one of our technical engineers for more details
Get in touch

See the Lifting Frames to handle Reels of Film and Material in use

Features and Options

  • Full Bespoke Design Service to suit your specific requirements
  • Lift Height up to 1850mm (bespoke options up to 3000mm)
  • IP Rating IP30C or IP65
  • Standard or Wide Straddle Legs
  • Electric Lift with variable speed control option for precise movements
  • Optional adjustable height stop positions for repetitive lifting operations
  • Optional Position control
  • Optional Powered Locomotion
  • Wheels - Non-marking anti-static
  • Front Wheels - Stainless Steel 50mm / 85mm pallet wheels (rocking pallet or swivel castor options)
  • Rear Wheels - Stainless Steel 125mm Swivel castors with safety foot guard and brake system 'stop-fix'
  • Lift mechanism - ball screw with direct drive DC motor
  • Interchangeable attachments
  • Digital Controls and Display with Remote Control or Joystick options
  • Easy to manoeuvre with Small Footprint for narrow spaces
  • Ease of use, streamlined construction, and enhanced safety for end users
  • Flexible and Ergonomic design
  • CE and UKCA Compliant
  • Industries include Food, Drinks, Pharmaceutical, Medical, FMCG, Labelling & Printing, Automotive, Aerospace, Marine, Industrial & Warehouse

Safety Features

  • Emergency Stop Button
  • Overload limit - prevents exceeding SWL and accidental damage
  • Electro-mechanical brake holds load at required height in case of power failure
  • Rear swivel castors with safety foot guard and brake

Electrics

  • Mains Power Input for charging - 100-240VAC
  • Batteries - 24-volt 36 Amp AGM gel dual batteries
  • Battery Capacity - 400 Lift and Lower cycles (C150), 300 Lift and Lower cycles (C300)
  • Charging Cycle - 4-5 hours to full charge
  • Battery Charger - 5 Amp digital Intelligent Charger with advanced battery monitoring
  • Battery Meter - LED Visual Display showing charging status
  • Electrical Safety - Emergency E-stop button
  • Electrical overload protection - Immediate stop securely holding load in place
  • Electrics - 24v Programmable controllers

Datasheets

Reel Lifting Frame

Get in touch

Sending...
Uploading Files
Field is required
Field is required
Invalid email

Request an On-Site Demo Machine

Sending...
Uploading Files
Field is required
Field is required
Invalid email
Field is required
Tell us about your lifting and handling challenge so we can recommend the right solution
  • Get in touch
  • Book a Demo
  • Features & Options
  • Safety Features
  • Electrics
  • Product Data Sheet
Packline | Lifting Frames to handle Reels of Film and Material 1
Packline | Lifting Frames to handle Reels of Film and Material 2

Lifting Frames to handle Reels of Film and Material Overview

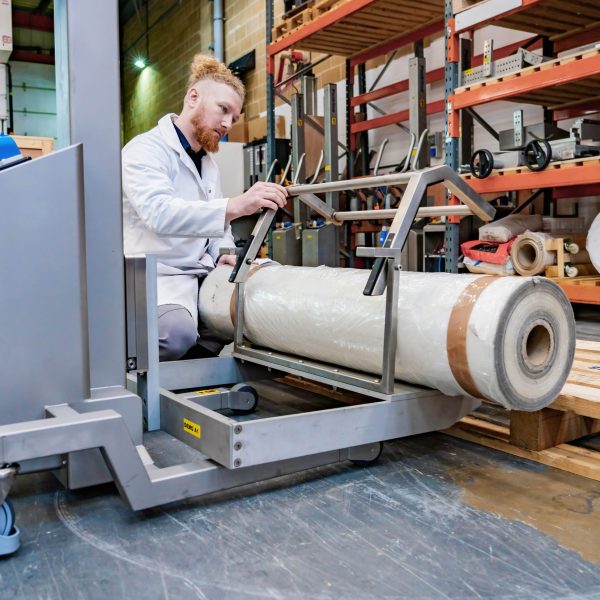

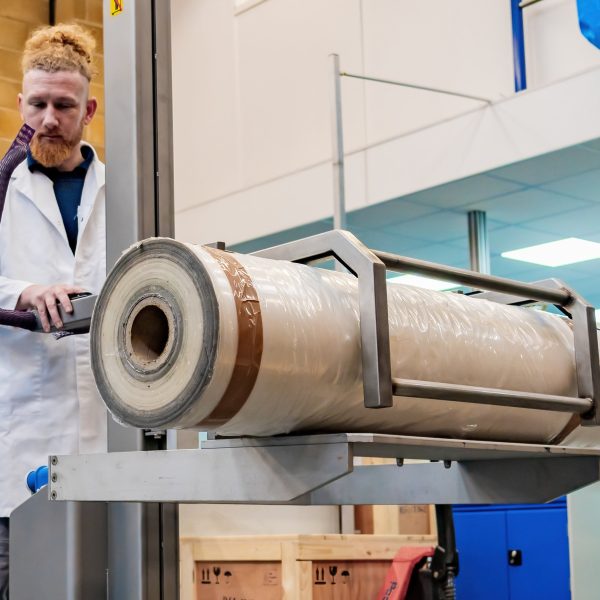

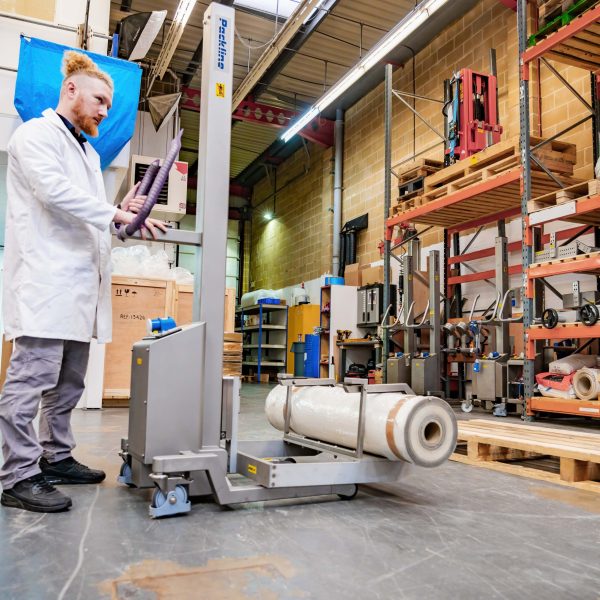

The Packline Stainless Steel Reel Lifting Frame is designed to handle long reels of film and material. It is designed so that the frame is opened and the reel is rolled on to the platform. The frame is then closed and the reel is safe to manoeuvre to the required destination for unloading.

There are a number of different packing machines on the market today that require loading with longer reels which can often be hard to handle.

This Reel Lifter is ideal for use with Automatic Pallet Stretch Wrappers such as the Octopus Line Spin Wrap machine.

This popular solution is simple to use, turning what is often a two man operation into a one man job that is safe and efficient reducing crucial down time to your production process.

Packline | Lifting Frames to handle Reels of Film and Material 3
Packline | Lifting Frames to handle Reels of Film and Material 4
Packline | Lifting Frames to handle Reels of Film and Material 5
Packline | Lifting Frames to handle Reels of Film and Material 6

UK Manufacture & Design

Packline Materials Handling has been designing and manufacturing lifting and handling equipment in Poole, Dorset in the UK since 1993.
Packline | Lifting Frames to handle Reels of Film and Material 7

Bespoke Design services

The company’s in-house design facility and workshop enables high quality and effective solutions to be realised within short lead times.
