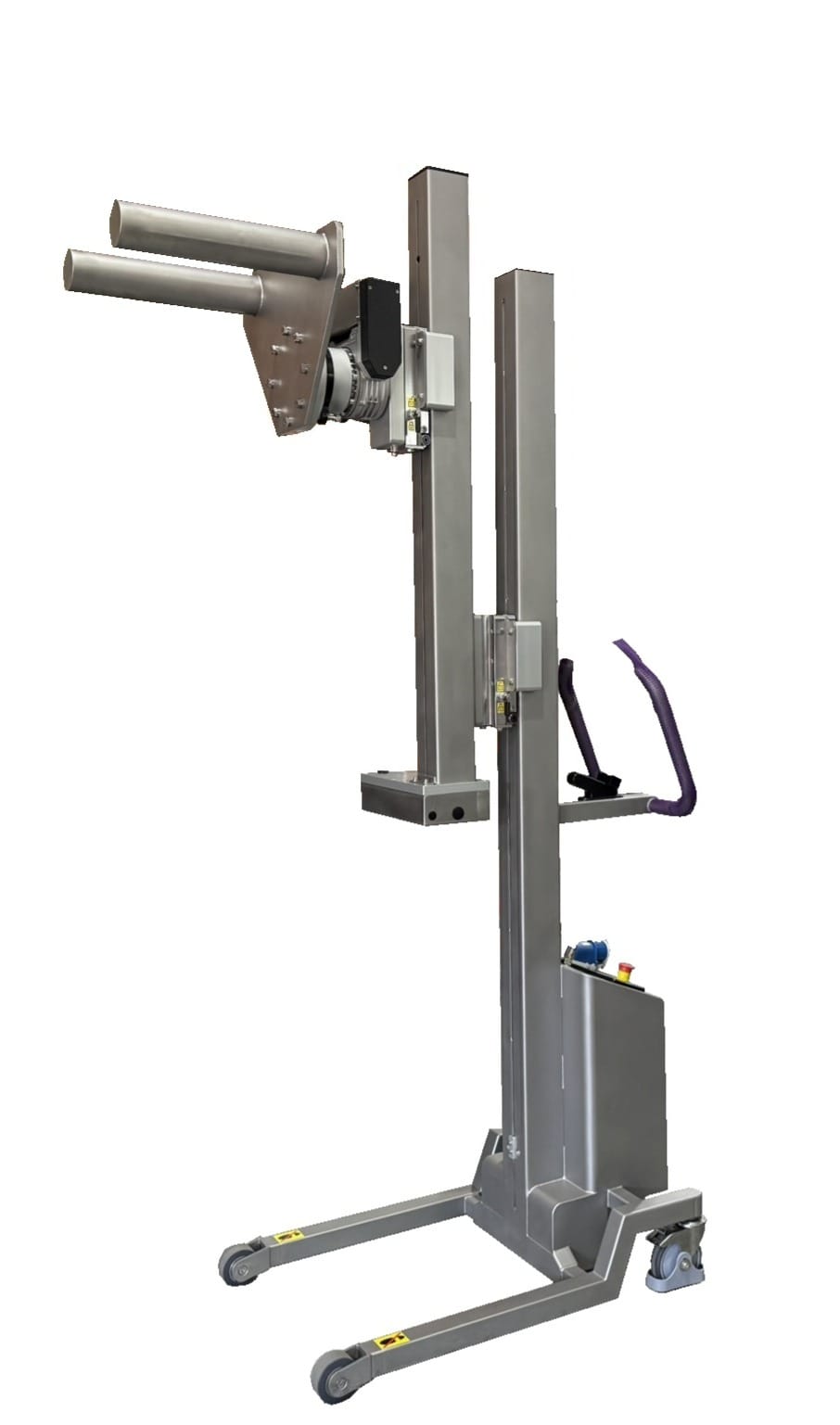

Lifting Reels to Extended Heights

Features and Options

• Full Bespoke Design Service to suit your specific requirements
• Fully motorised lift and rotation
• 360° Rotation of load (Motorised units can have rotation angles set to customer specifications)
• Reel core sizes 3” (76mm) or 6” (152mm) other bespoke core sizes available upon request
• Safe and efficient solution for lifting reels, rolls, and stainless-steel vessels to extended heights

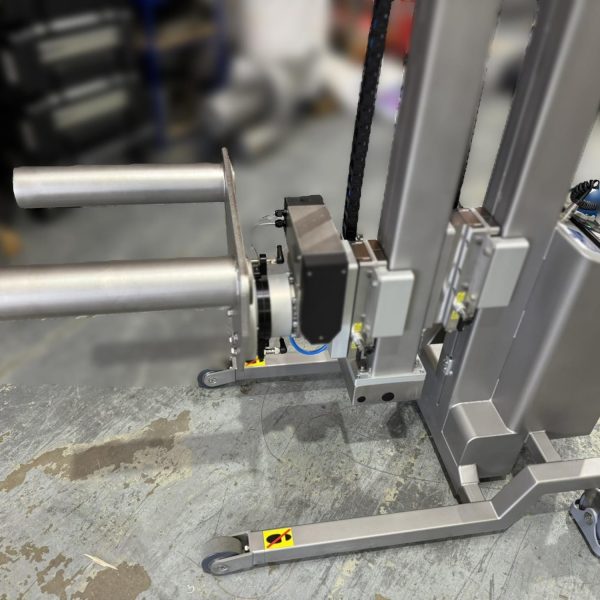

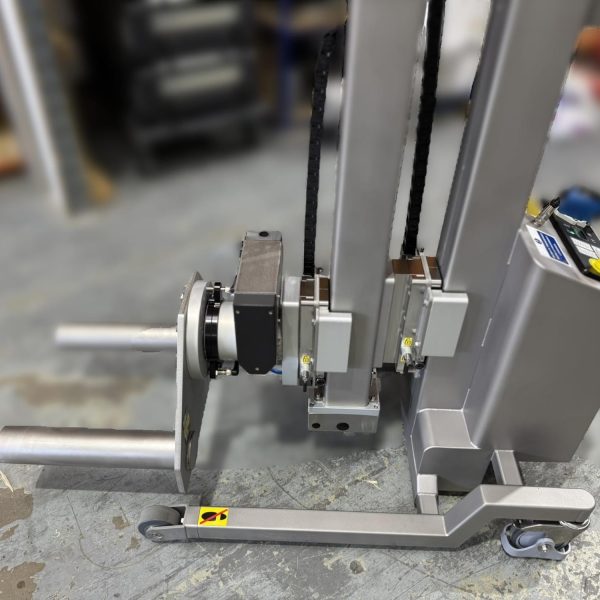

• Robust dual-column frame achieves lifting heights of up to 2500-3000 mm while maintaining low headroom clearance
• Ideal for navigating restricted spaces and doorways
• Dual-column design ensures stability and smooth manoeuvrability
• Supports a wide range of interchangeable attachments for maximum flexibility
• Standard or Wide Straddle Legs
• Digital Controls and Display with Remote Control or Joystick
• Suitable for pharmaceutical, food, and high-hygiene industries
• Flexible and Ergonomic design
• CE and UKCA Compliant
• Industries include Food, Drinks, Pharmaceutical, Medical, FMCG, Automotive, Aerospace, Marine, Labelling & Printing, Industrial & Warehouse.

Safety Features

• Emergency Stop Button
• Overload limit - prevents exceeding SWL and accidental damage
• Electro-mechanical brake holds load at required height in case of power failure
• Electro-mechanical brake holds load at required height in case of power failure

Electrics

• Mains Power Input for charging - 100-240VAC
• Batteries - 24-volt 36 Amp AGM gel dual batteries
• Battery Capacity - 400 Lift and Lower cycles (C150), 300 Lift and Lower cycles (C300)
• Charging Cycle - 4-5 hours to full charge
• Battery Charger - 5 Amp digital Intelligent Charger with advanced battery monitoring
• Battery Meter - LED Visual Display showing charging status
• Electrical Safety - Emergency E-stop button
• Electrical overload protection - Immediate stop securely holding load in place
• Electrics - 24v Programmable controllers
