Handling Multiple Diameter Drums – Adjustable Clamp

Manufactured to Customer Specifications
Fully Motorised clamping and rotation through 360°
Handle drums of varying diameters and weights
Stainless Steel Construction 304, 316/316L, Polished Finish options
UK Design and Manufacture
A wide range of industries including Food, Pharmaceutical, Medical and FMCG

Request a quote or connect with one of our technical engineers for more details

Get in touch

Features and Options

Full Bespoke Design Service to suit your specific requirements
Handle stainless steel drums of varying diameters and weights
Removable and adjustable pads
Universal solution for lifting 50kg, 100kg, and 200kg drums (higher capacities available)
Adjustable clamping system with powered lift, motorised rotation, and geared clamping via handwheel.
Wide diameter range: suitable for drums between 273mm and 882mm
Floor and pallet access: straddle legs allow drums to be picked up directly from the floor or over a pallet for maximum flexibility
Enhanced stability: widened legs for improved weight distribution and a shortened 1.7m column height for safer handling of heavy loads.
Pivoting drum pads to ensure secure grip and firm contact with every drum
Custom depth pads designed for narrower 180mm ribs, with standard pads at 203mm high
Quick-release plunger for removing clamping rollers when handling larger diameter drums.
Safely lift, rotate, and pour liquid contents from drums into other containers
Universal, reliable, and efficient drum handling solution for a wide range of applications.
IP Rating IP30C or IP65
Easy to manoeuvre with Small Footprint for narrow spaces
Industries include Food, Drinks, Pharmaceutical, Medical, FMCG, Labelling & Printing, Automotive, Aerospace, Marine, Industrial & Warehouse

Safety Features

Safety two-button function prevents the operator from inadvertently dropping the load
Emergency Stop Button
Overload limit - prevents exceeding SWL and accidental damage
Electro-mechanical brake holds load at required height in case of power failure
Rear swivel castors with safety foot guard and brake

Electrics

Mains Power Input for charging - 100-240VAC
Batteries - 24-volt 36 Amp AGM gel dual batteries
Battery Capacity - 400 Lift and Lower cycles (C150), 300 Lift and Lower cycles (C300)
Charging Cycle - 4-5 hours to full charge
Battery Charger - 5 Amp digital Intelligent Charger with advanced battery monitoring
Battery Meter - LED Visual Display showing charging status
Electrical Safety - Emergency E-stop button
Electrical overload protection - Immediate stop securely holding load in place
Electrics - 24v Programmable controllers

Get in touch

Request an On-Site Demo Machine

Get in touch
Book a Demo
Features & Options
Safety Features
Electrics

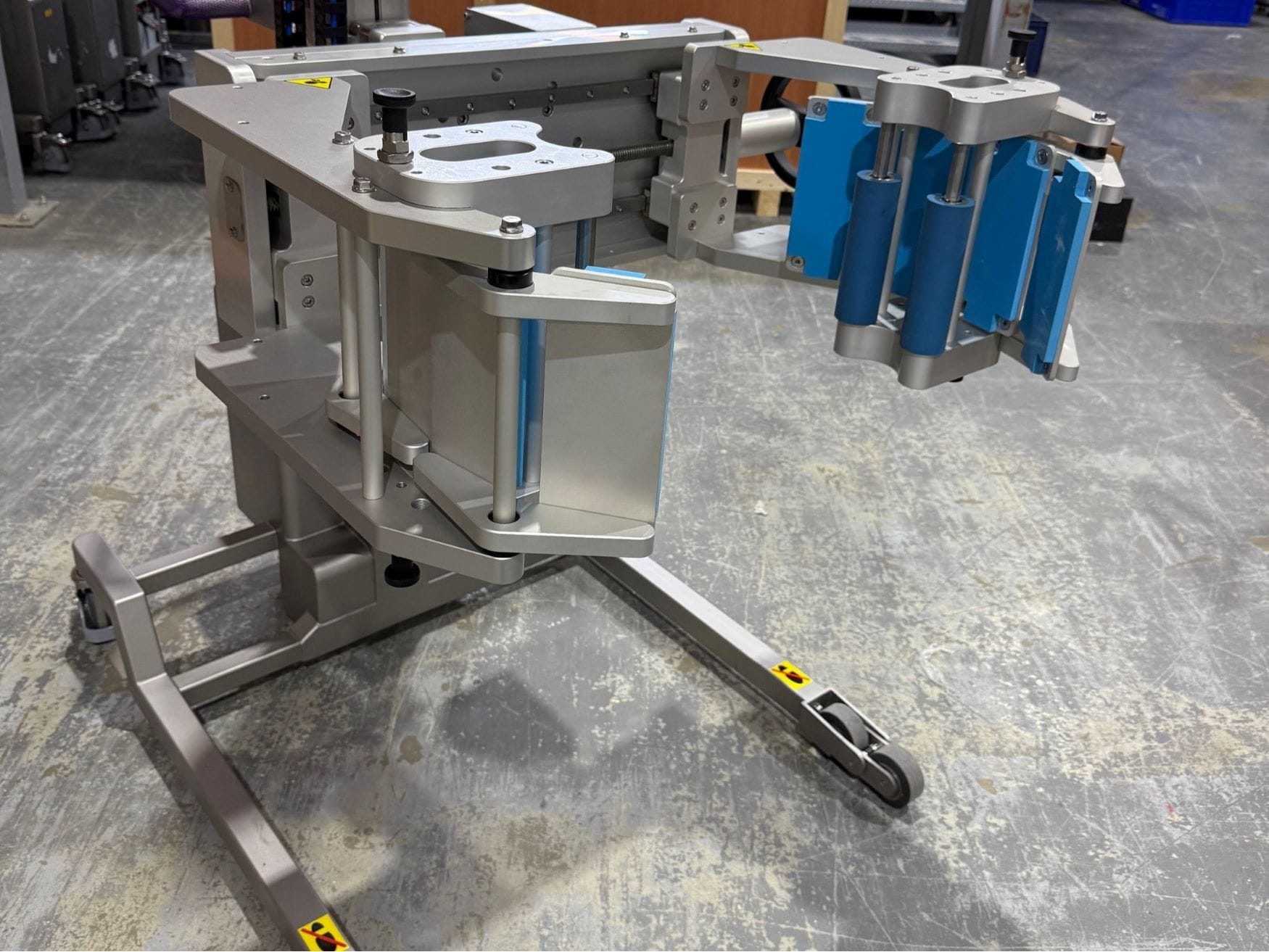

Packline | Handling Multiple Diameter Drums – Adjustable Clamp 1

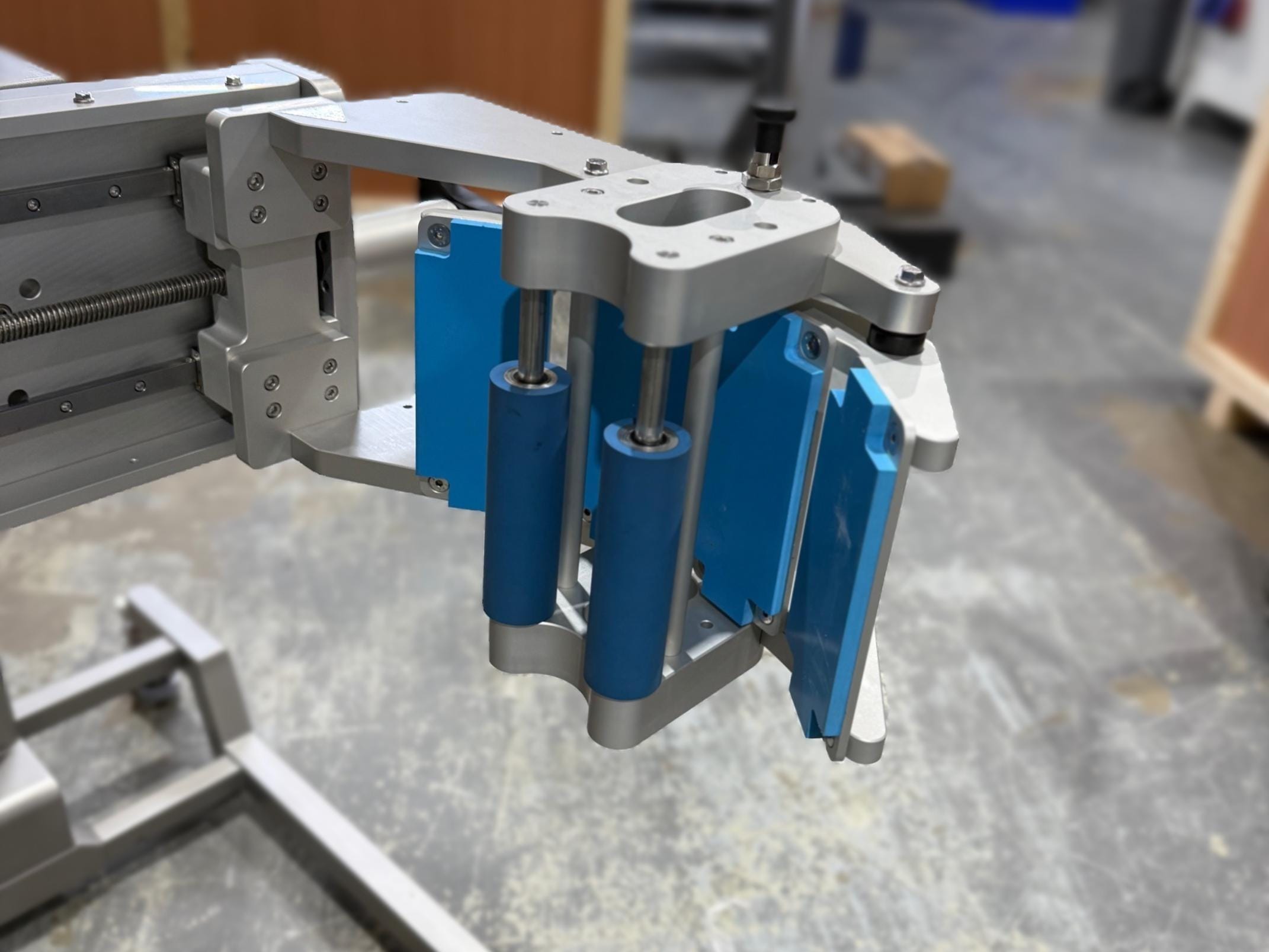

Packline | Handling Multiple Diameter Drums – Adjustable Clamp 2

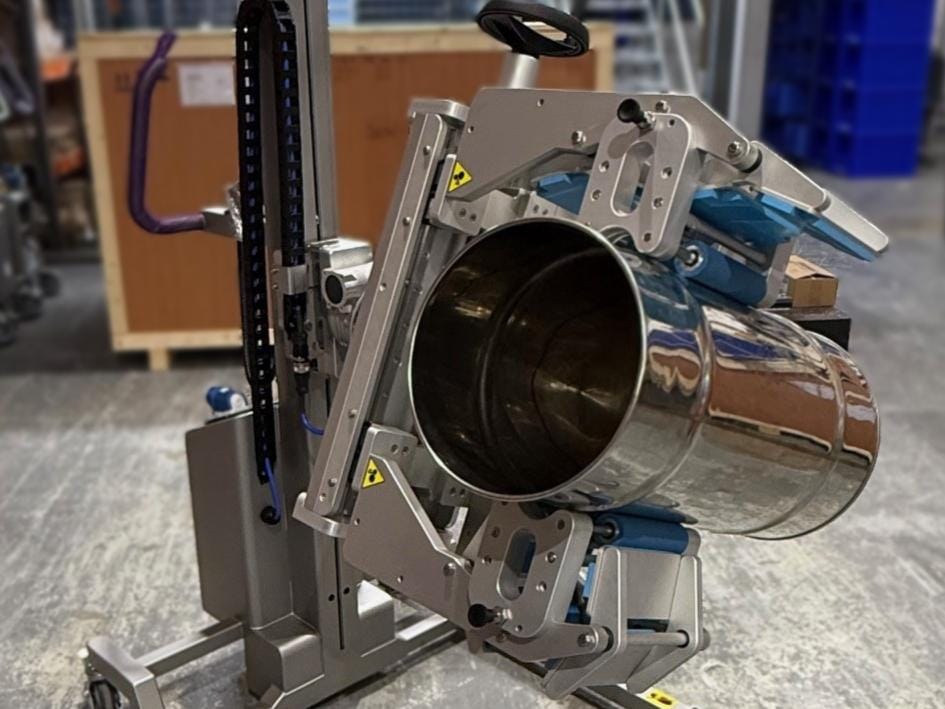

Packline | Handling Multiple Diameter Drums – Adjustable Clamp 3

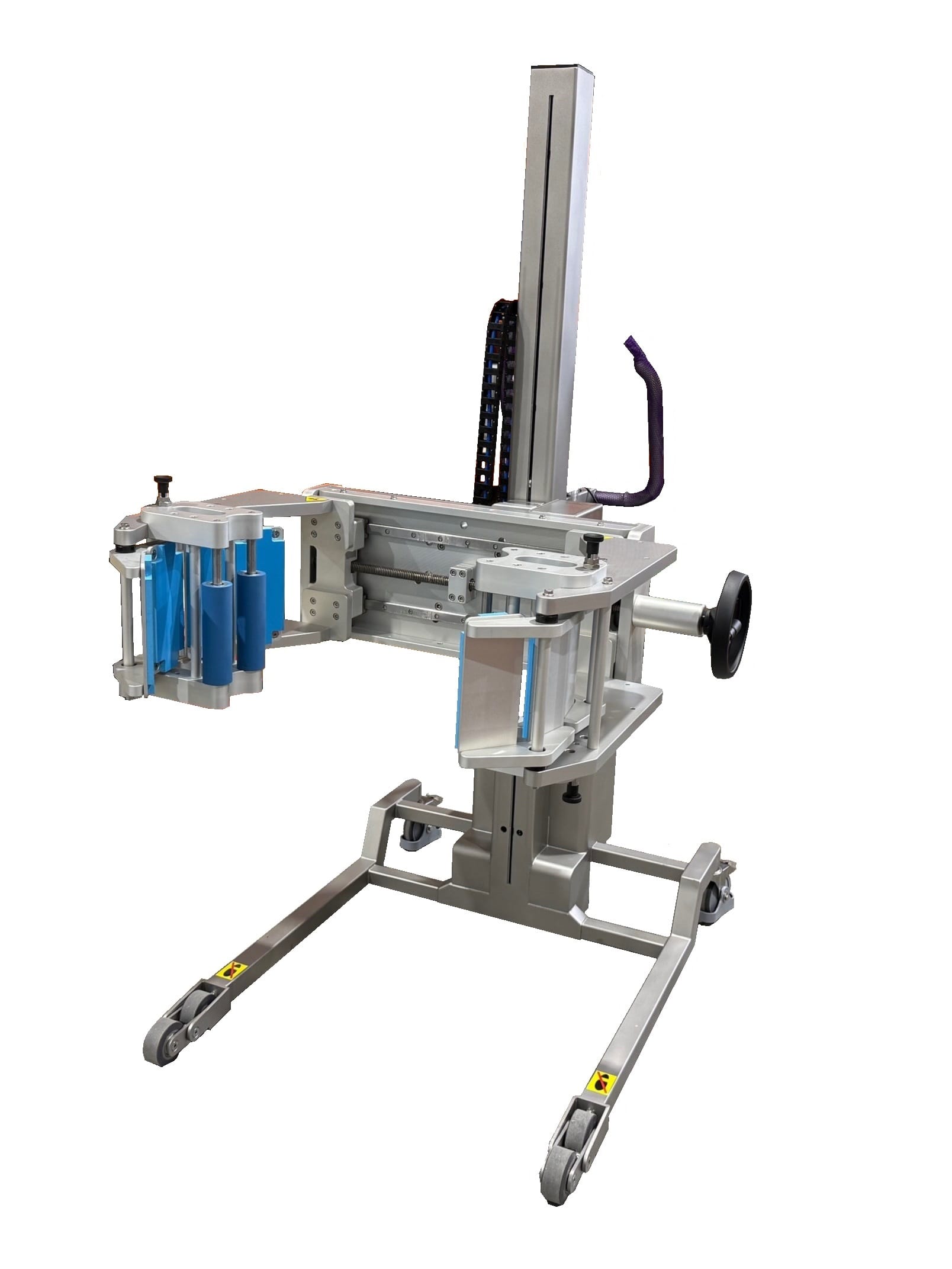

Handling Multiple Diameter Drums – Adjustable Clamp Overview

The Adjustable Drum Clamp is a versatile lifting solution designed to safely handle stainless steel drums of varying diameters and weights, ranging from 50kg to 225kg. With its removable and adjustable pads, this clamp provides a universal solution for lifting 50kg, 100kg, and 200kg drums, making it ideal for industries handling multiple drum sizes. Higher lift capacities are available on request.

Key features include:

Adjustable clamping system with powered lift, motorised rotation, and geared clamping via handwheel.
Wide diameter range: suitable for drums between 273mm and 882mm.
Floor and pallet access: straddle legs allow drums to be picked up directly from the floor or over a pallet for maximum flexibility.

Enhanced stability: widened legs for improved weight distribution and a shortened 1.7m column height for safer handling of heavy loads.
Pivoting drum pads to ensure secure grip and firm contact with every drum.
Custom depth pads designed for narrower 180mm ribs (as on 32L drums), with standard pads at 203mm high.
Quick-release plunger for removing clamping rollers when handling larger diameter drums.

This innovative attachment enables operators to safely lift, rotate, and pour liquid contents from drums into other containers, offering a universal, reliable, and efficient drum handling solution for a wide range of applications.

Handling drums of different diameters and weights can be a challenge in industries such as food, pharmaceutical, chemical, and manufacturing. The Adjustable Drum Clamp from Packline Ltd provides a universal solution, allowing operators to safely lift, rotate, and pour stainless steel drums ranging from 50kg to 225kg.

The clamp features removable and adjustable pads, making it suitable for 50kg, 100kg, and 200kg drums. With its motorised lift and rotation, geared clamping system, and wide diameter range of 273mm to 882mm, the attachment ensures precision handling for drums of all sizes.

For maximum versatility, the straddle leg design allows drums to be lifted directly from the floor or easily accessed on a pallet. Stability is further enhanced by widened legs for better weight distribution and a shorter 1.7m column for secure handling of heavy drums.

Packline Ltd has been a trusted manufacturer of drum handling solutions in the UK since 1993, specialising in equipment for the food, pharmaceutical, and cleanroom industries. Choosing Packline means you benefit from:

Bespoke drum handling attachments tailored to your exact requirements.
Stainless steel construction for hygiene-critical environments.
Proven safety and reliability, with designs tested to meet rigorous industry standards.
Expert support from initial consultation through to installation and after-sales service.

The Adjustable Drum Clamp delivers numerous operational benefits, including:

Universal drum handling: One attachment for multiple drum sizes and weights.
Improved efficiency: Fast, safe lifting and pouring reduces downtime.
Enhanced operator safety: Secure pivoting pads, quick-release plunger, and geared clamping ensure maximum grip and control.
Versatility: Handles narrow-ribbed drums (32L) with custom pads and large-diameter drums with removable rollers.
Space efficiency: Compact design with straddle legs allows access in confined spaces and over pallets.

With its robust design, universal functionality, and focus on operator safety, the Adjustable Drum Clamp is the ideal solution for companies handling a variety of drum diameters and weights.

View our full range of Drum Handling Attachments
Contact Packline today to discuss your custom drum handling requirements.

Packline Ltd offers custom-designed drum handling equipment to improve workplace safety and productivity. Contact us today to discuss your drum handling requirements.

UK Manufacture & Design

Packline Materials Handling has been designing and manufacturing lifting and handling equipment in Poole, Dorset in the UK since 1993.

Packline | Handling Multiple Diameter Drums – Adjustable Clamp 5

Bespoke Design services

The company’s in-house design facility and workshop enables high quality and effective solutions to be realised within short lead times.
