‘Cargo-Lift’ Fork Lift Attachment

  • Bespoke Solutions Manufactured to Customer Specifications

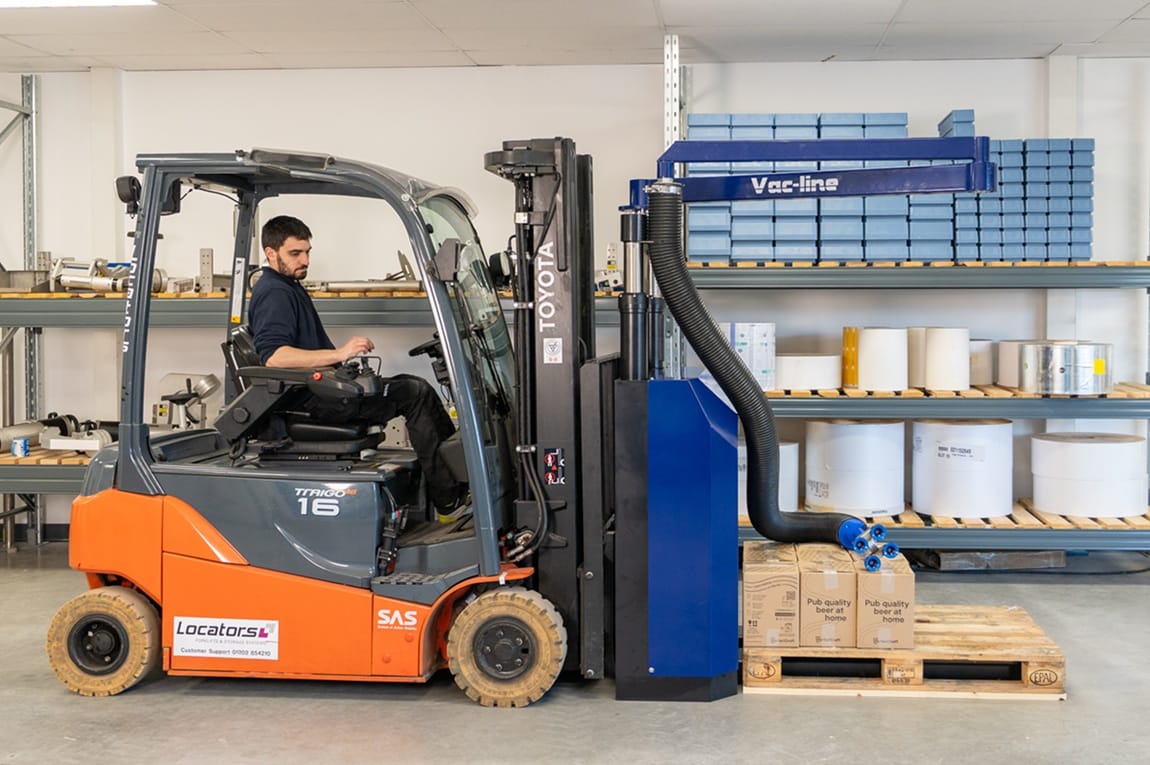

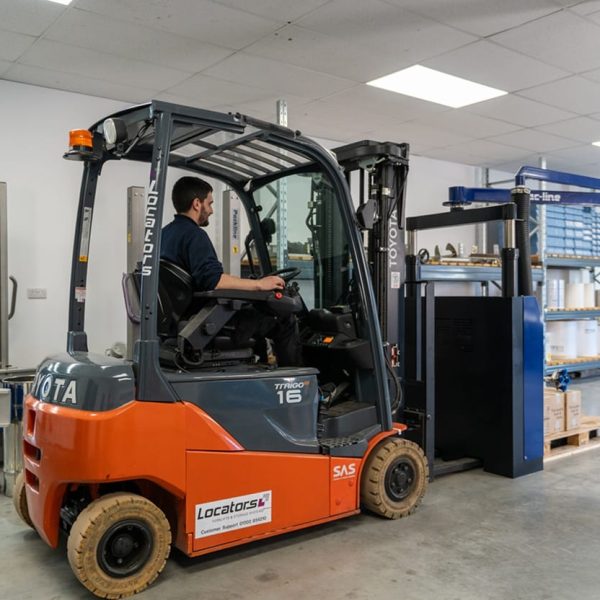

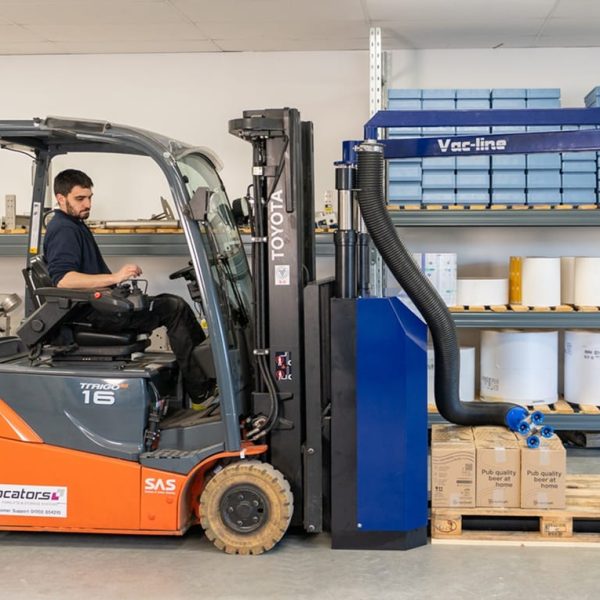

  • Vacuum lifting system for easy mounting onto Forklift Trucks
  • The cargo-lift system mounts onto almost any type of forklift truck
  • High-quality vacuum Lifting equipment
Request a quote or connect with one of our technical engineers for more details

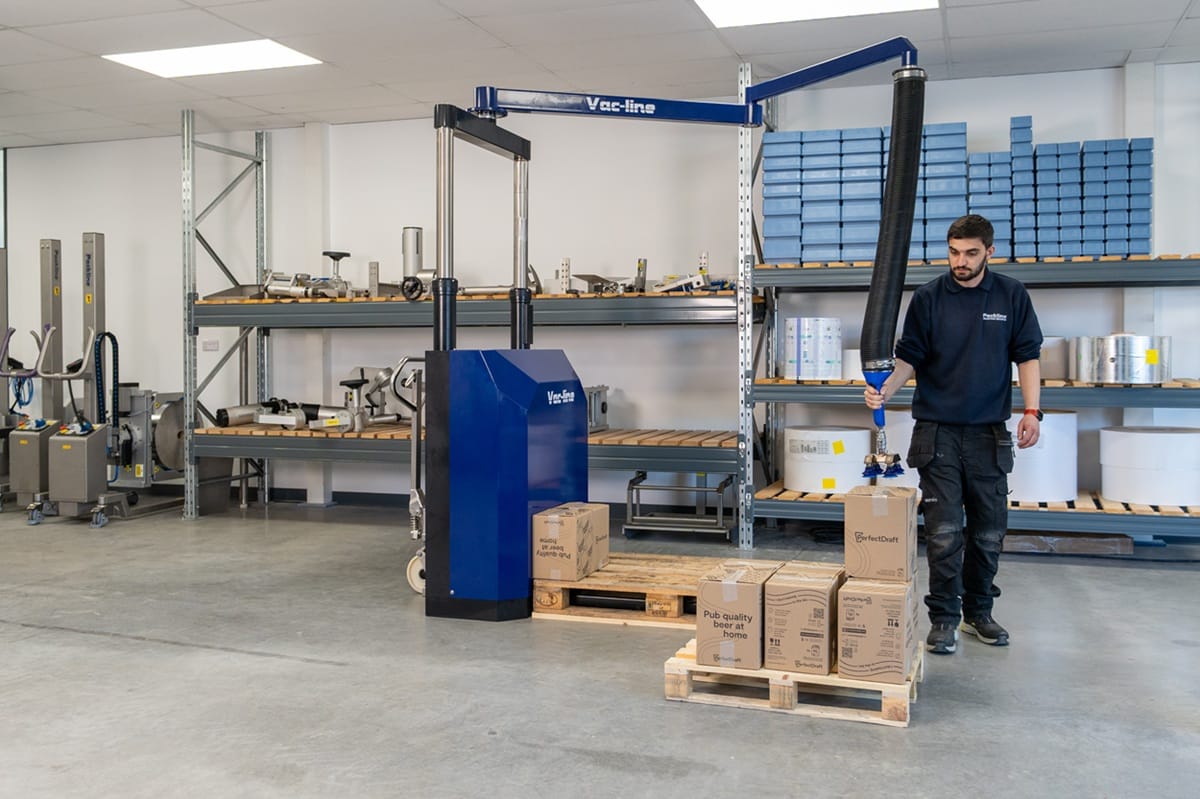

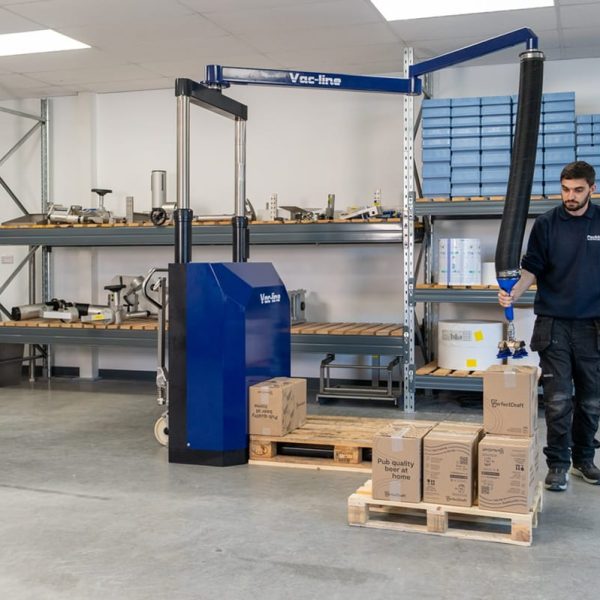

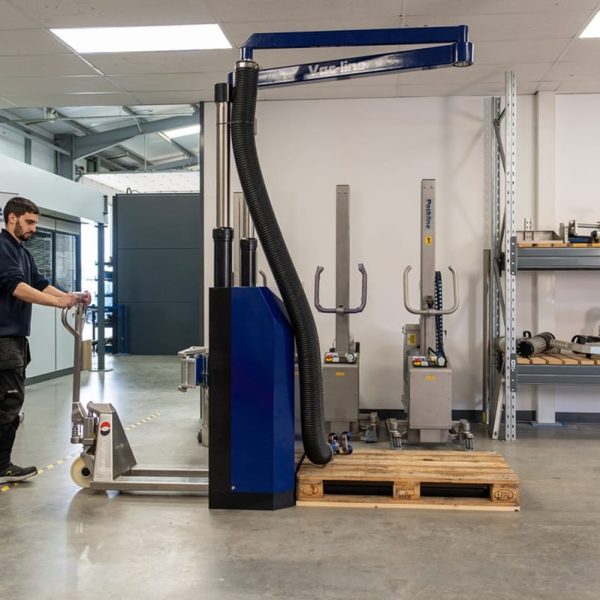

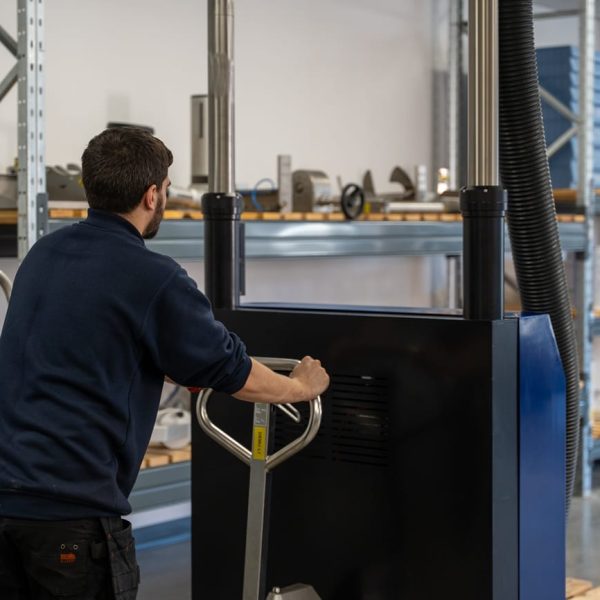

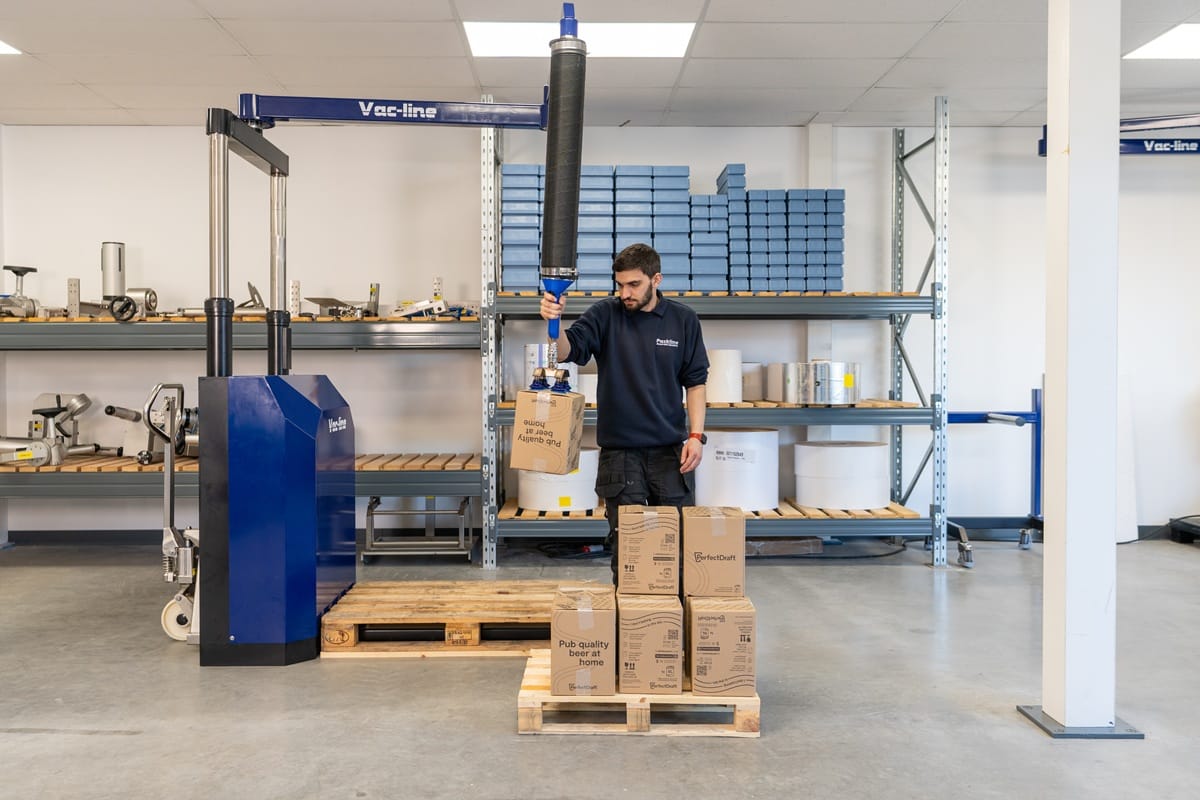

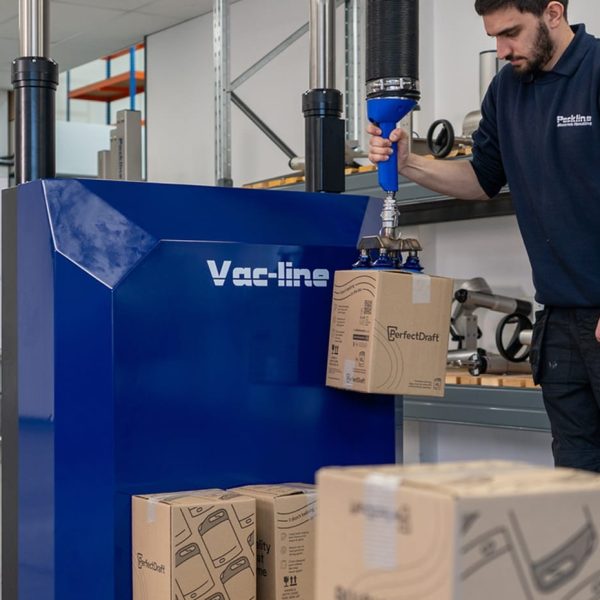

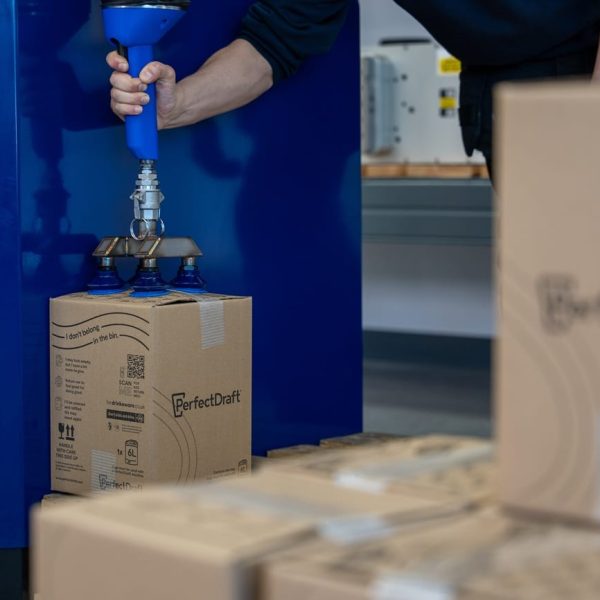

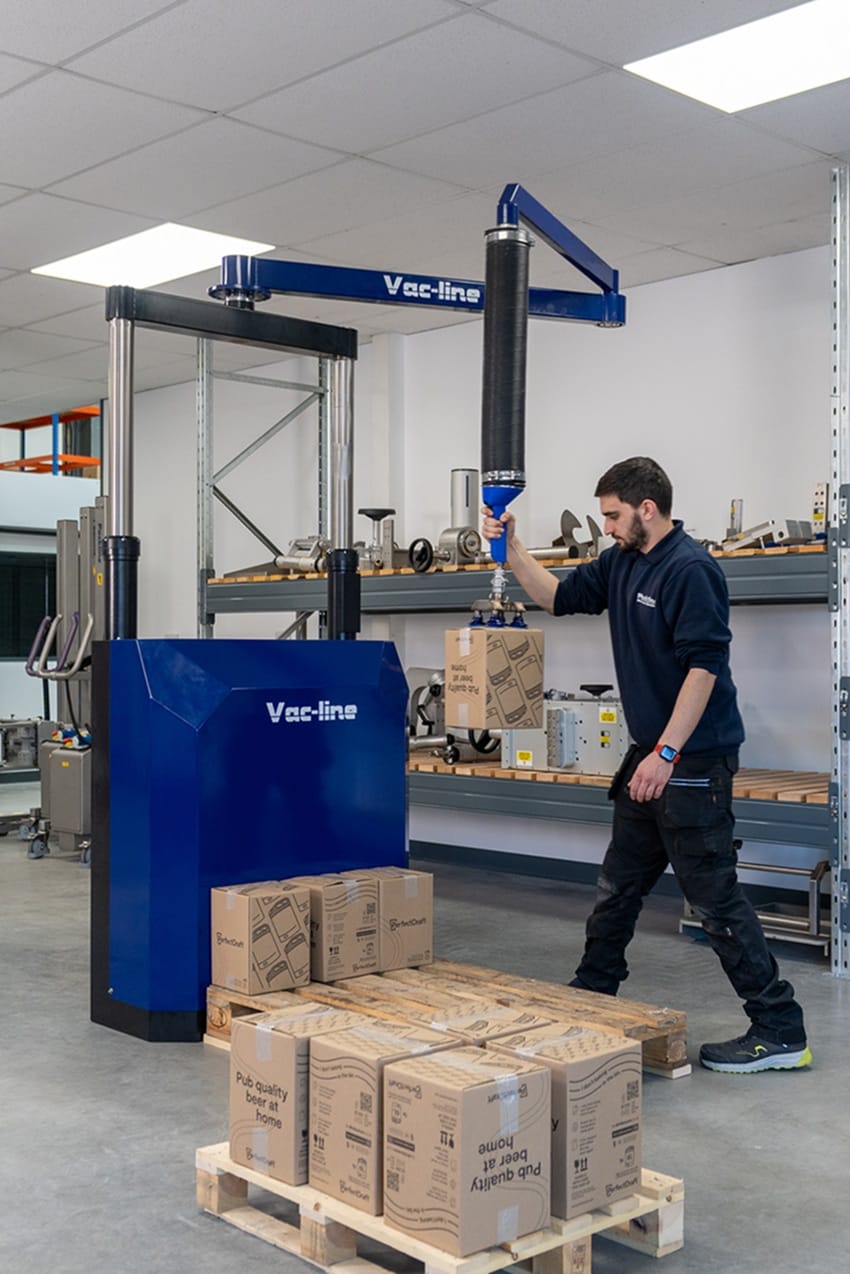

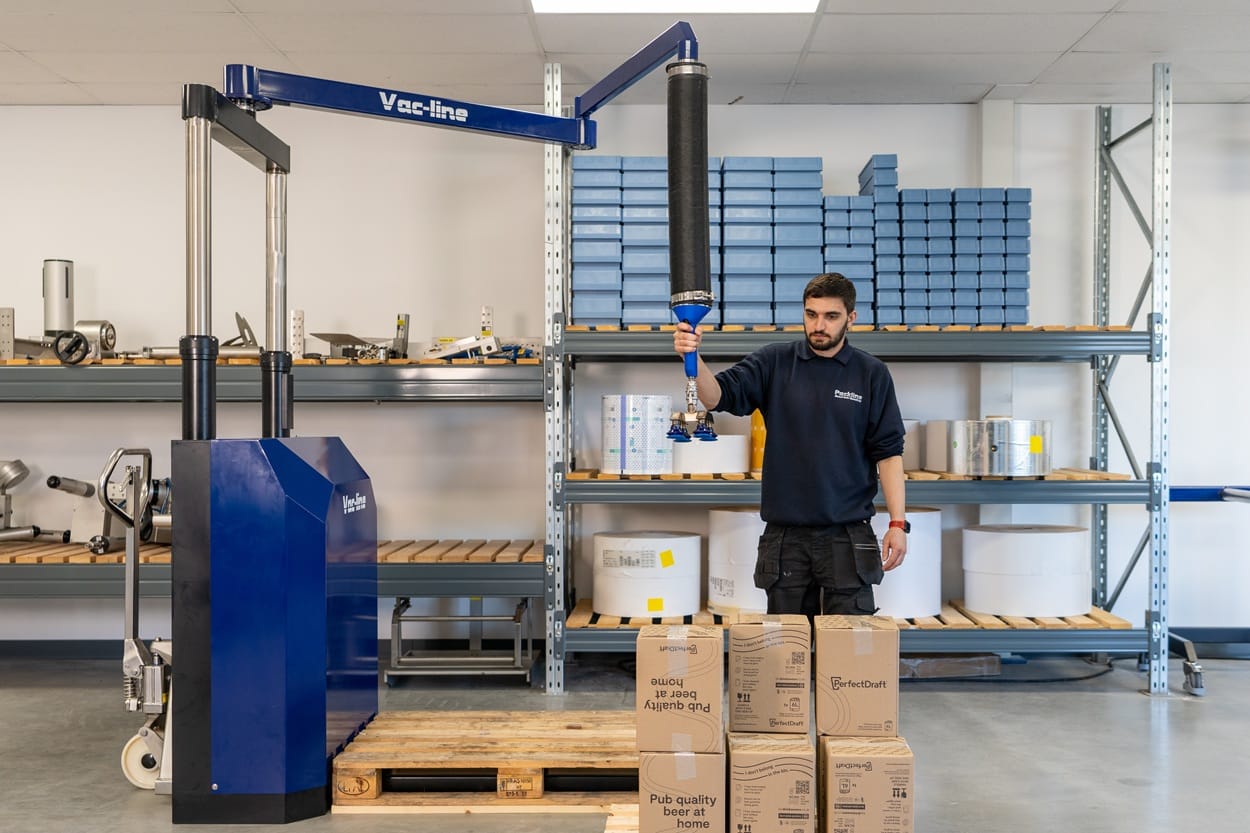

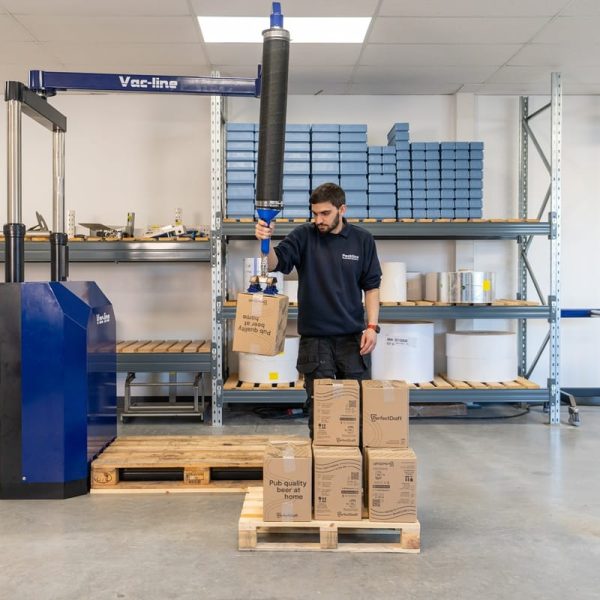

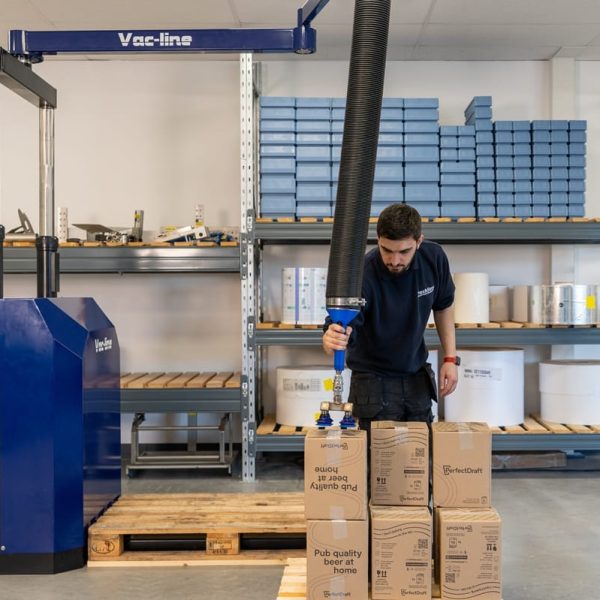

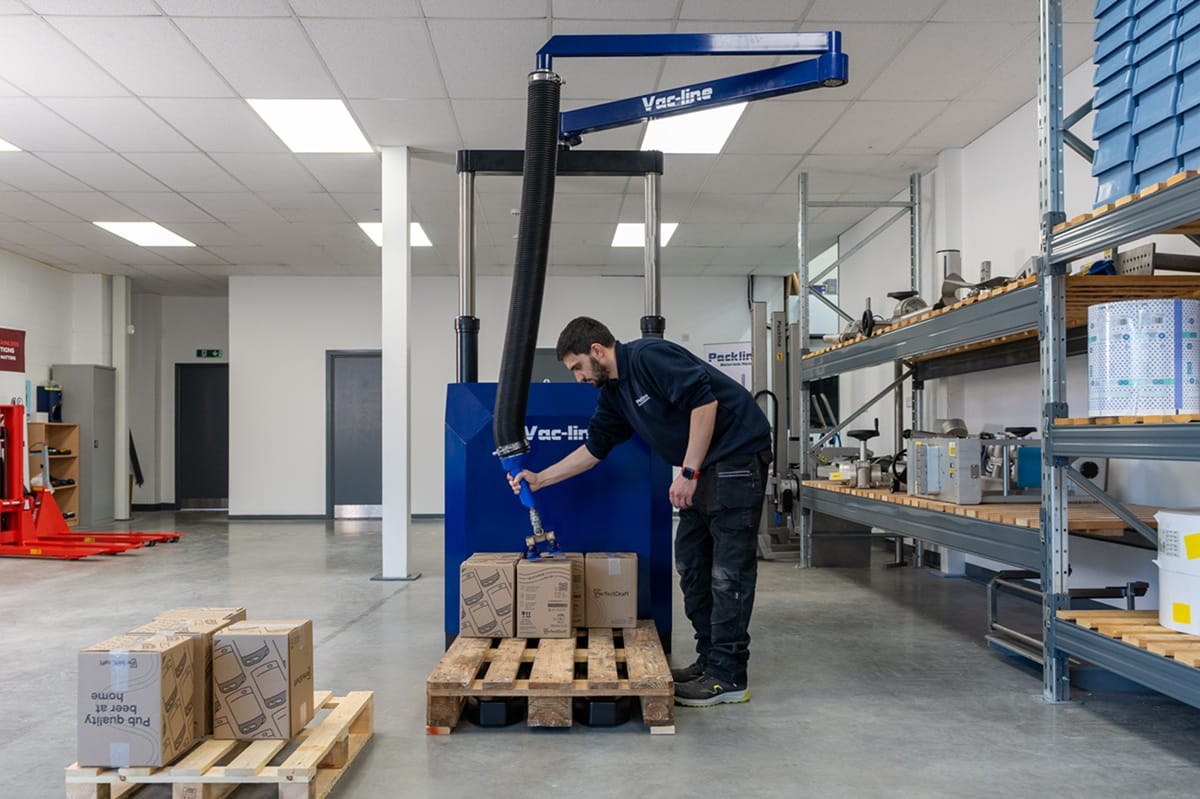

See the ‘Cargo-Lift’ Fork Lift Attachment in use

Features and Options

  • Mounts onto almost any type of forklift truck, no customising required
  • Can be mounted by the customer or by the local fork lift truck supplier

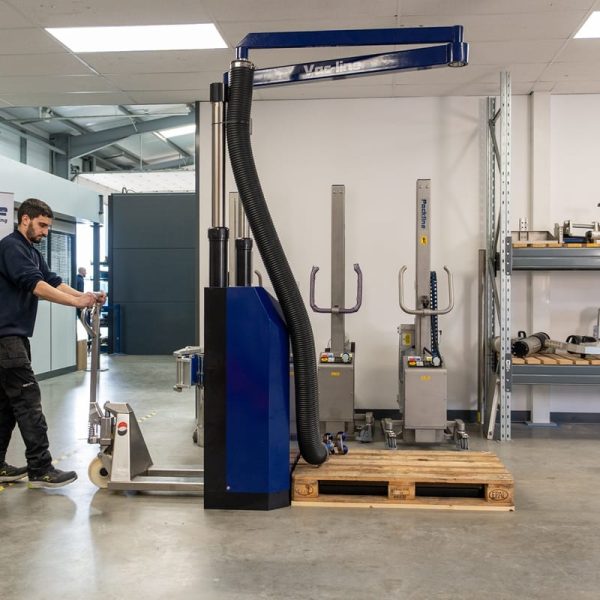

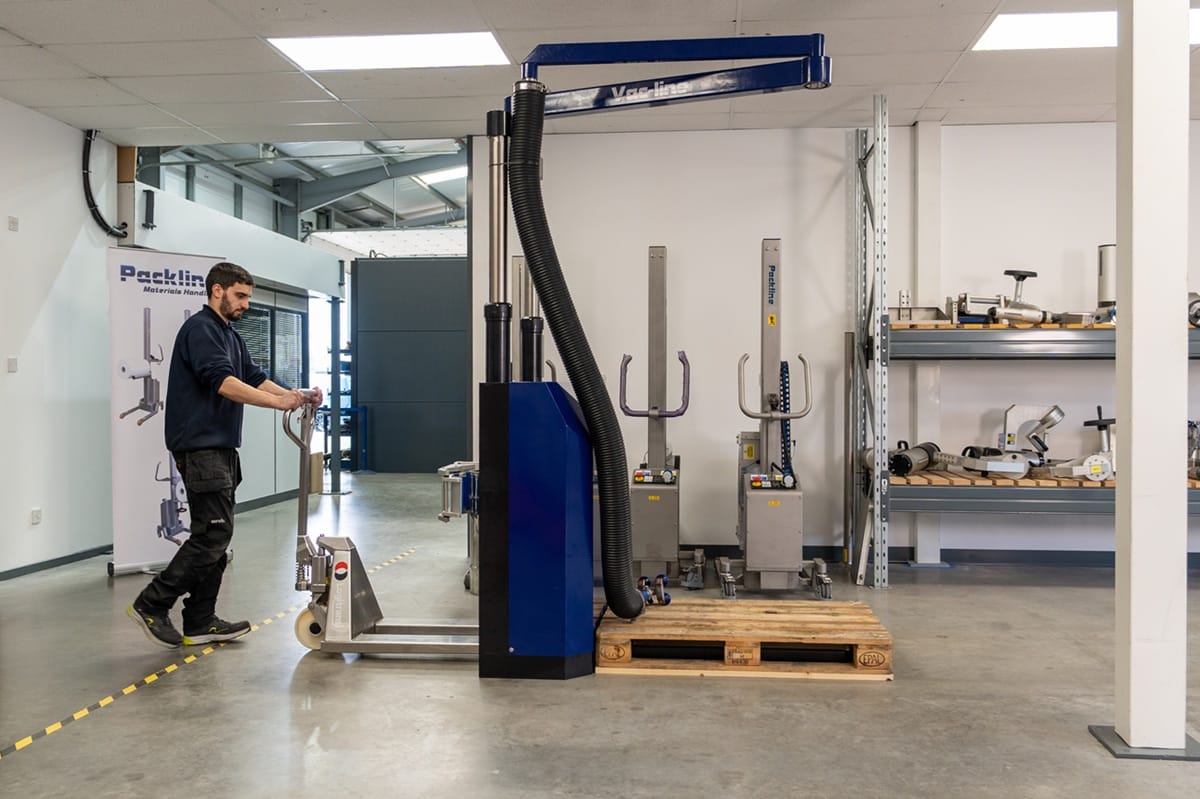

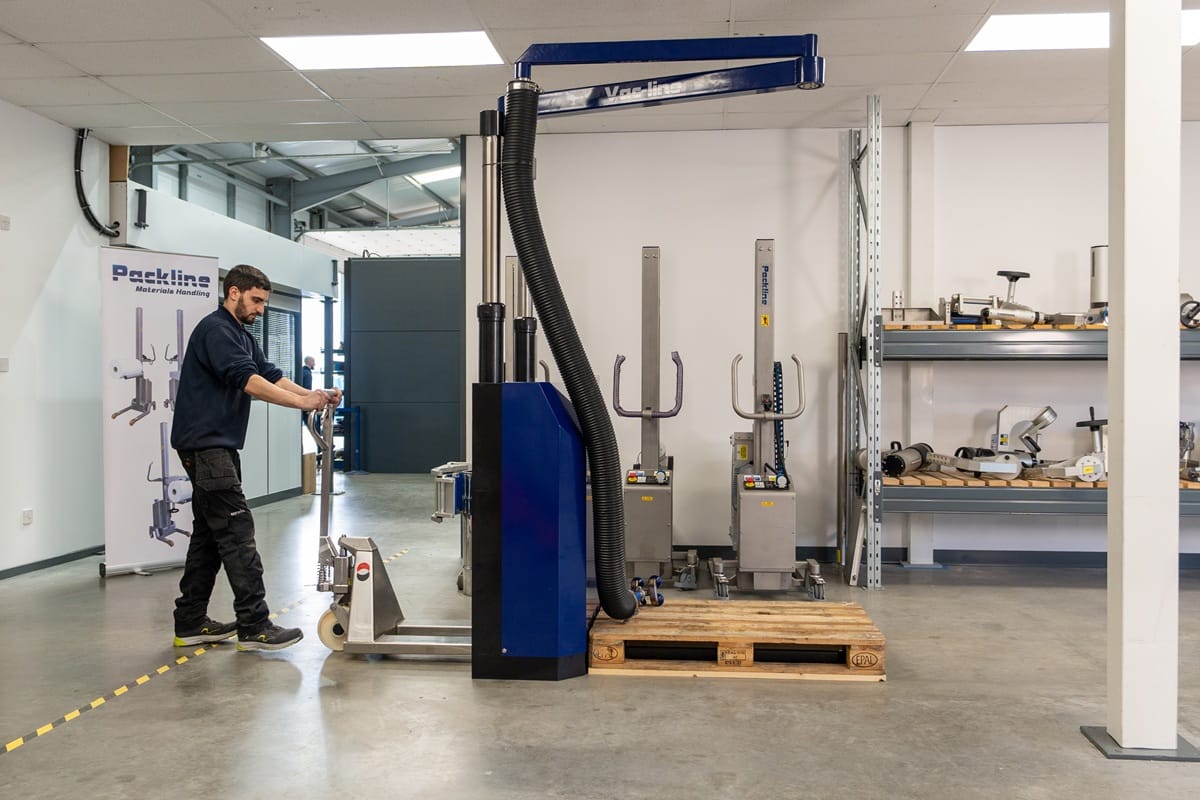

  • Can be dismounted and parked in a special stand when the truck is used as a normal fork lift
  • Lifting capacity: 50 kg
  • Reach: 2.500 mm
  • Lifting height: ~1500 mm from pallet level
  • Total height ~2750 mm from floor level
  • Working area: Up to 180º
  • Installation The Cargo-Lift attachment is designed according to the ISO/FEM standard and will fit Class 1, Class 2 and Class 3.
  • Power connection: 24 Volt, 48 Volt or 80 Volt DC
  • Upon request the Cargo-Lift can be supplied for hydraulic operation in case of diesel- or gas powered forklift truck.
  • Vacuum pump: VC50 -0,80 Bar
  • Consumption: 42 Amp at 48 Volt DC
  • Lifting tube: Diameter 140 mm

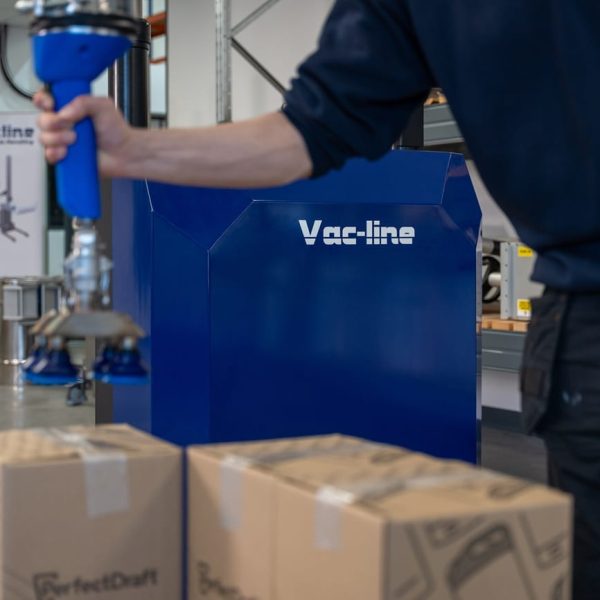

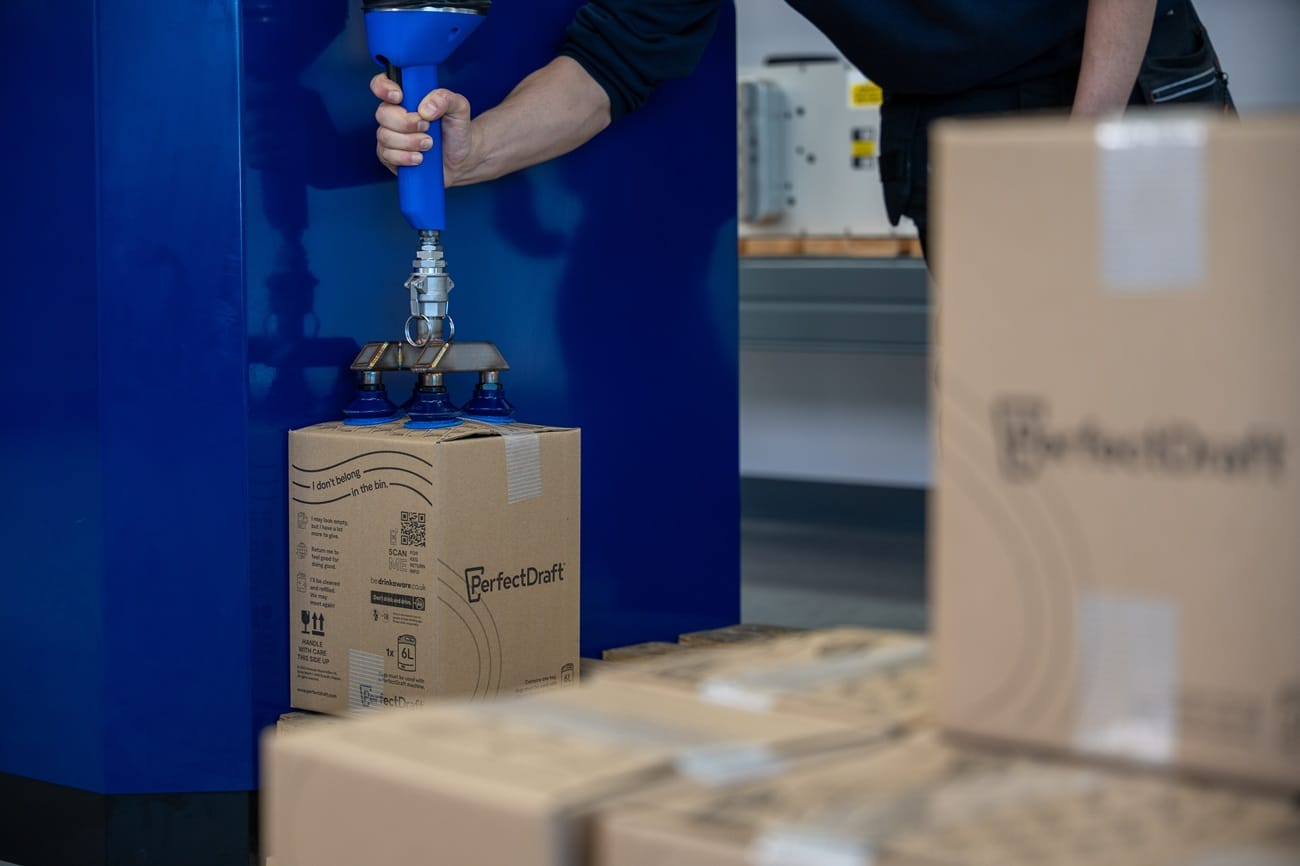

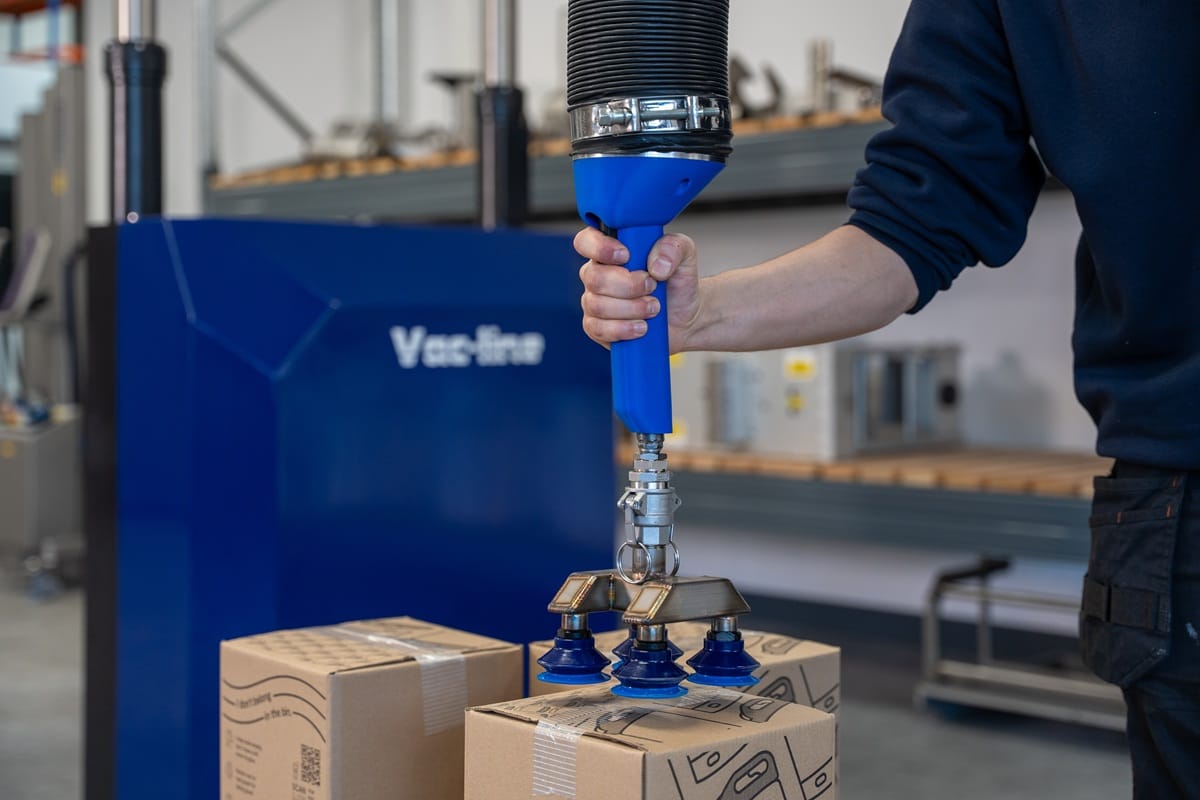

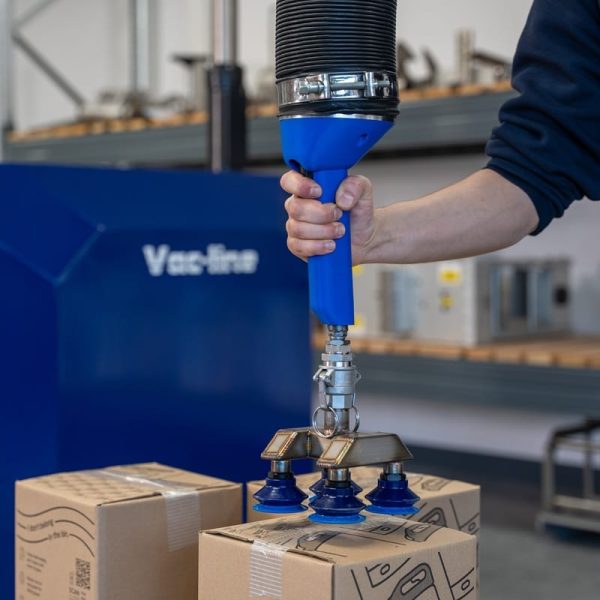

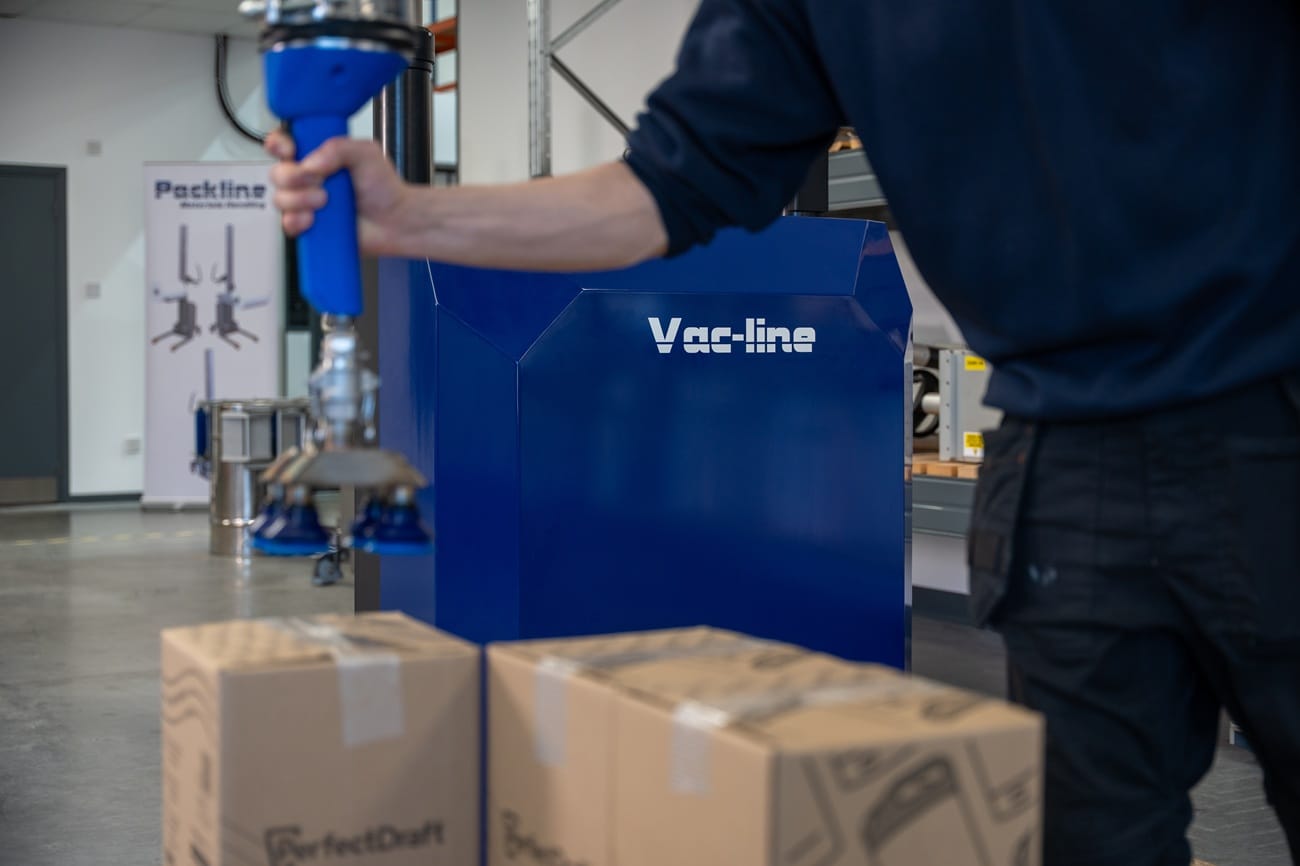

  • Suction head: Diameter 140 mm, rotatable
  • Arm brake: Manual arm lock
  • Ease of use, streamlined construction, and enhanced safety for end users
  • Long operating life and low maintenance costs
  • Flexible and Ergonomic design

Get in touch

Sending...
Uploading Files
Field is required
Field is required
Invalid email
  • Features & Options
  • Product Data Sheet
  • Get in touch

‘Cargo-Lift’ Fork Lift Attachment Overview

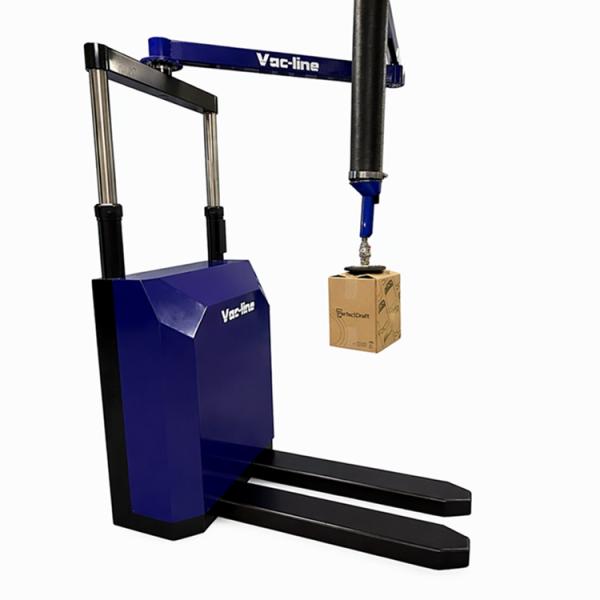

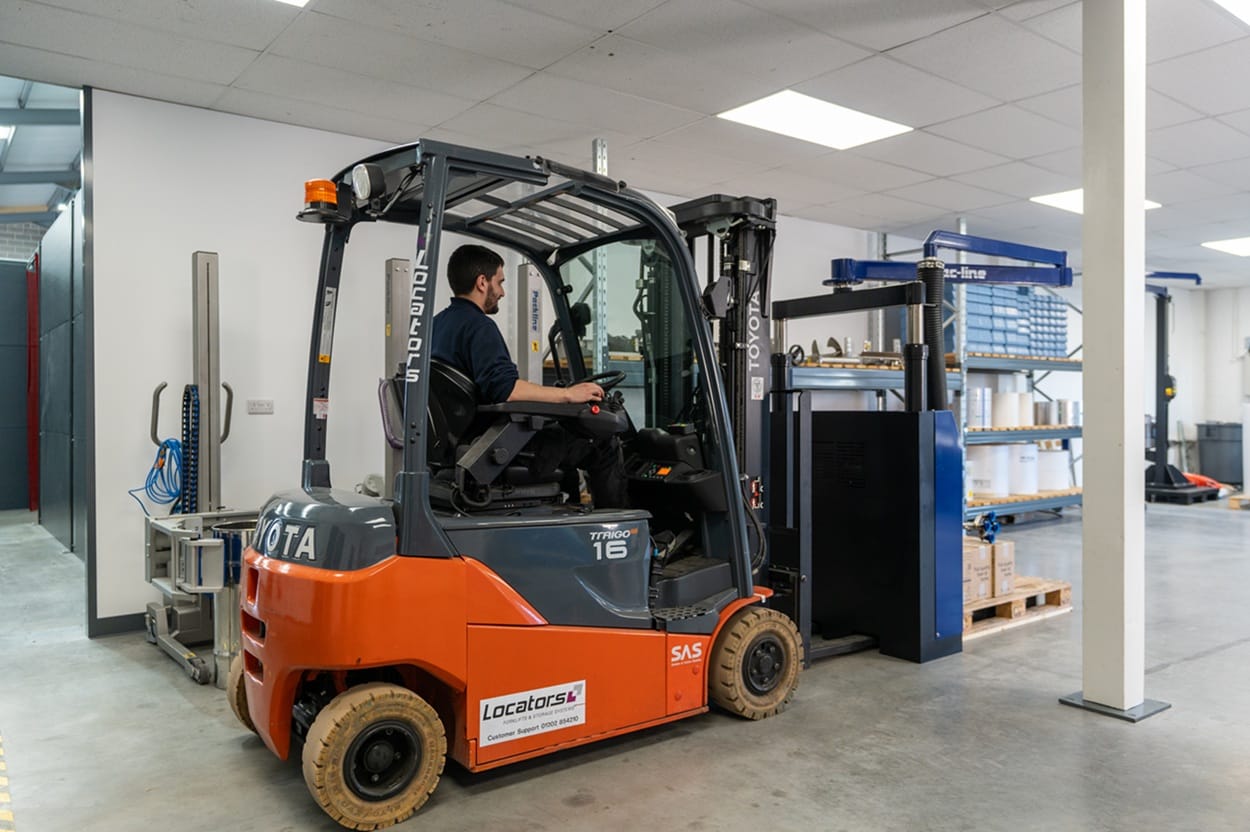

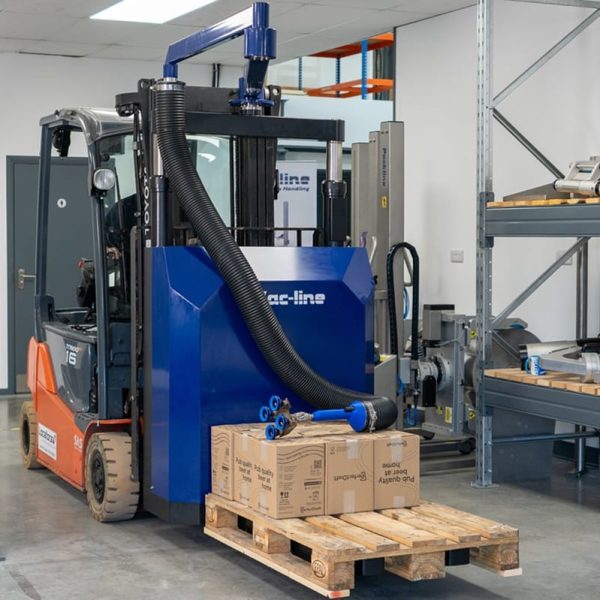

The Cargo-Lift is a vacuum lifting system for easy mounting onto Forklift Trucks. The unique feature with the cargo-lift system is that it mounts onto almost any type of forklift truck. No customising required!

The main advantage is that the system can be mounted by the customer or by the local fork lift truck supplier. Another advantage is that the cargo-lift system can be dismounted and parked in a special stand when the truck is used as a normal fork lift.



The Cargo-Lift attachment is designed according to the ISO/FEM standard and will fit class 1, class 2 and class 3 trucks.

The Cargo-Lift system is supplied complete with vacuum pump, suction pad and all the necessary parts for connection to the forklift truck.

Packline  | ‘Cargo-Lift’ Fork Lift Attachment 9

UK Manufacture & Design

Packline Materials Handling has been designing and manufacturing lifting and handling equipment in Poole, Dorset in the UK since 1993.
Packline  | ‘Cargo-Lift’ Fork Lift Attachment 10

Bespoke Design services

The company’s in-house design facility and workshop enables high quality and effective solutions to be realised within short lead times.
