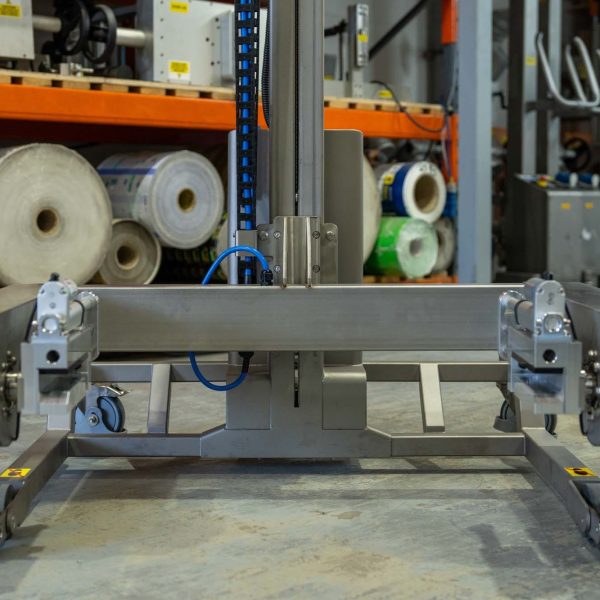

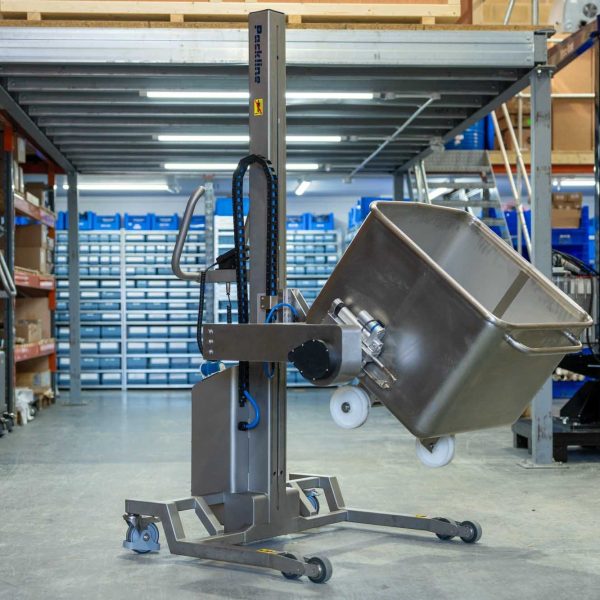

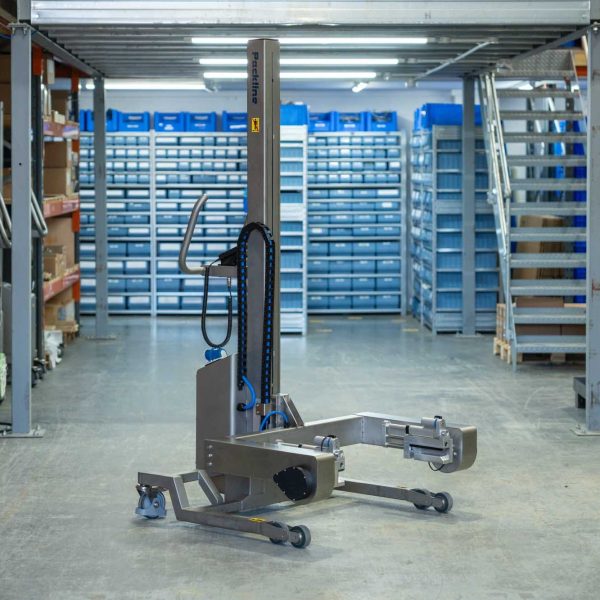

Eurobin or Tote Bin Lifter

  • Bespoke Solutions Manufactured to Customer Specifications
  • High-quality equipment for clean room environments
  • Handle the full range of Eurobins
  • Lift Capacity up to 300kg
  • A wide range of industries including Food, Pharmaceutical, Medical and FMCG
  • UK Design and Manufacture
Request a quote or connect with one of our technical engineers for more details

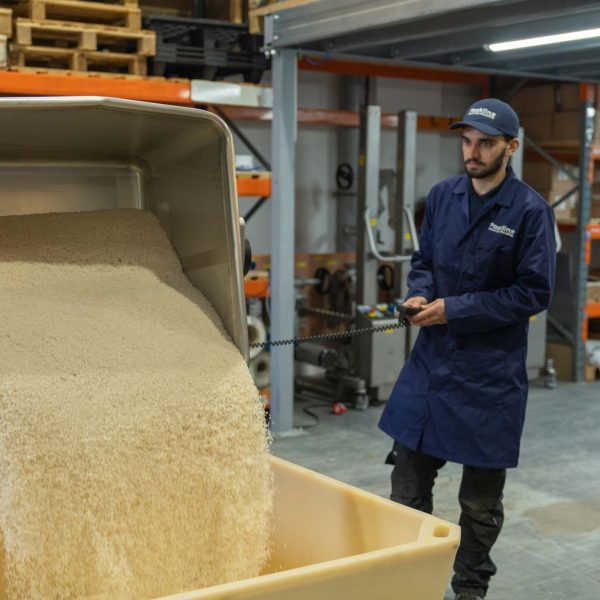

See the Eurobin or Tote Bin Lifter in use

Features and Options

  • Full Bespoke Design Service to suit your specific requirements
  • Lift, rotate and tip any Eurobin or Tote Bin as required (suitable for 120L, 200L and 300L eurobins)

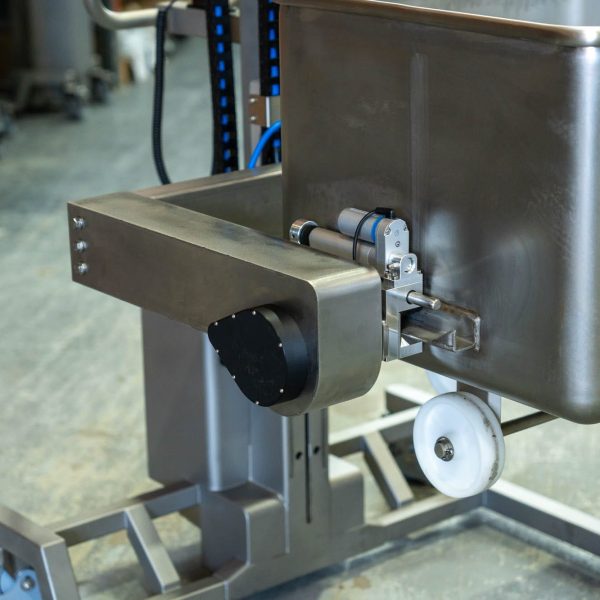

  • Powered lift, rotate / tip mechanisms
  • Forward tipping up to 180°
  • Lift Height up to 1850mm (bespoke options up to 3000mm)
  • IP Rating IP30C or IP65
  • Standard or Wide Straddle Legs
  • Electric Lift with variable speed control option for precise movements
  • Optional adjustable height stop positions for repetitive lifting operations
  • Optional Position control
  • Optional Powered Locomotion
  • Wheels - Non-marking anti-static
  • Front Wheels - Stainless Steel 50mm / 85mm pallet wheels (rocking pallet or swivel castor options)
  • Rear Wheels - Stainless Steel 125mm Swivel castors with safety foot guard and brake system 'stop-fix'
  • Interchangeable attachments
  • Digital Controls and Display with Remote Control or Joystick options
  • Easy to manoeuvre with Small Footprint for narrow spaces
  • Ease of use, streamlined construction, and enhanced safety for end users
  • Flexible and Ergonomic design
  • Reduce the risk of injury and accidents caused through manual handling operations
  • CE and UKCA Compliant
  • Industries include Food, Drinks, Pharmaceutical, Medical, FMCG, Labelling & Printing, Automotive, Aerospace, Marine, Industrial & Warehouse

Safety Features

  • Emergency Stop Button
  • Overload limit - prevents exceeding SWL and accidental damage
  • Electro-mechanical brake holds load at required height in case of power failure
  • Rear swivel castors with safety foot guard and brake

Electrics

  • Mains Power Input for charging - 100-240VAC
  • Batteries - 24-volt 36 Amp AGM gel dual batteries
  • Battery Capacity - 400 Lift and Lower cycles (C150), 300 Lift and Lower cycles (C300)
  • Charging Cycle - 4-5 hours to full charge
  • Battery Charger - 5 Amp digital Intelligent Charger with advanced battery monitoring
  • Battery Meter - LED Visual Display showing charging status
  • Electrical Safety - Emergency E-stop button
  • Electrical overload protection - Immediate stop securely holding load in place
  • Electrics - 24v Programmable controllers
