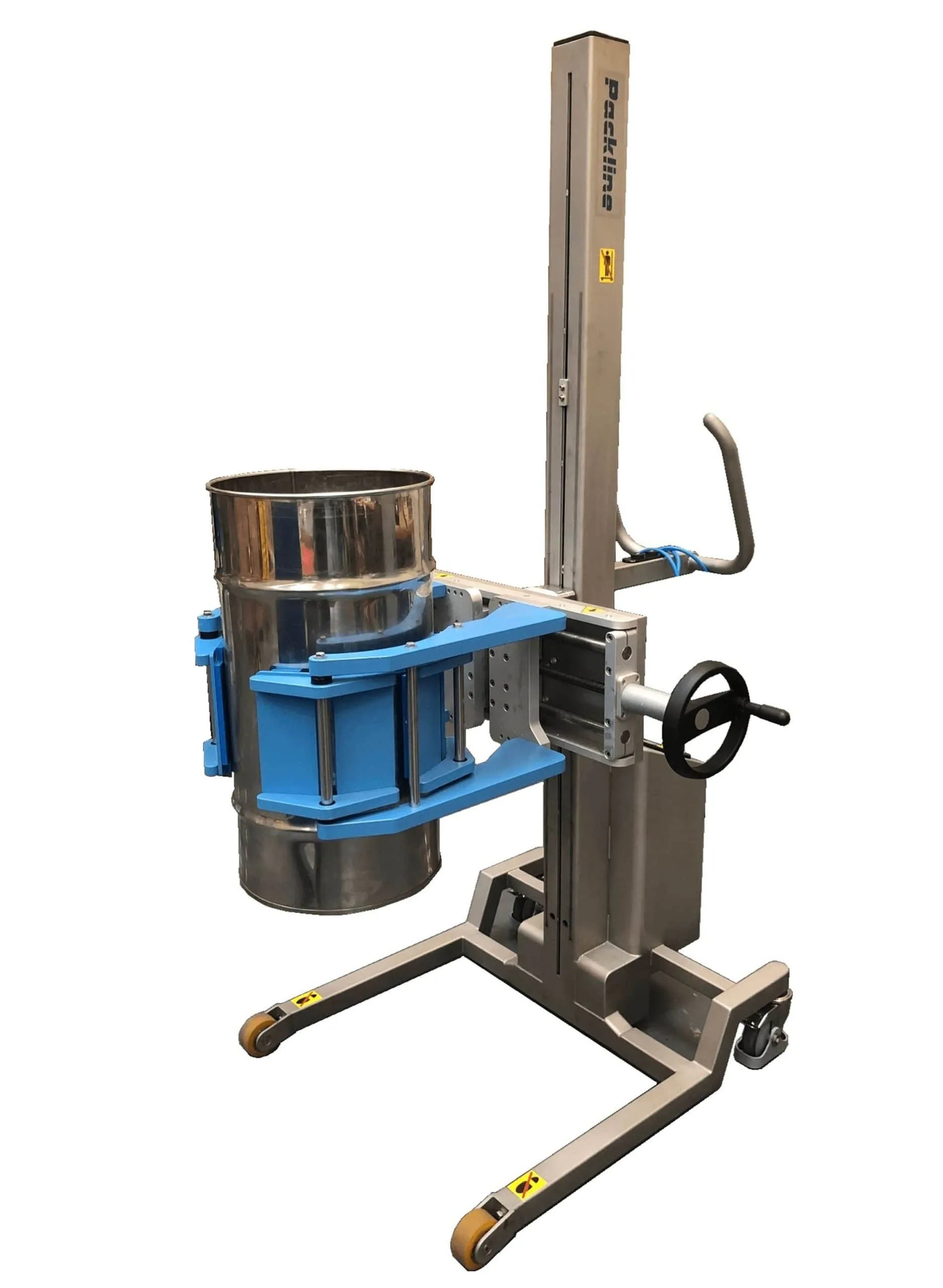

Drum Lifting Clamp Attachment – Fixed, Vertical Lift, No Rotation

Lifting & Handling Solutions> Stainless Steel Drum and Barrel Handling
  • Manufactured to Customer Specifications
  • Fixed clamp attachment, with vertical powered lift (no rotation)
  • Manual / Gearbox Assisted / Fully Motorised clamping
  • Lift Capacity up to 300kg
  • UK Design and Manufacture
  • A wide range of industries including Food, Pharmaceutical, Medical and FMCG
Request a quote or connect with one of our technical engineers for more details
Get in touch

See the Drum Lifting Clamp Attachment – Fixed, Vertical Lift, No Rotation in use

Features and Options

  • Full Bespoke Design Service to suit your specific requirements
  • Fitted with Rotating FDA approved nitrile rubber pads to provide maximum grip and assist alignment
  • A range of clamps – Interchangeable, pre-shaped pads, rollers.
  • Optional built in weight scale.
  • Lift Height up to 1850mm (bespoke options up to 3000mm)
  • Suitable for load diameters of up to 650mm as standard (bespoke up to 850mm)
  • Mechanical torque mechanism to ensure correct gripping pressure is applied preventing over tightening and damage to load
  • Adjustable electronic torque control for powered clamp functions
  • Stainless Steel Construction 304, 316/316L, Polished Finish options
  • IP Rating IP30C or IP65
  • Standard or Wide Straddle Legs
  • Electric Lift with variable speed control option for precise movements
  • Optional adjustable height stop positions for repetitive lifting operations
  • Optional Position control
  • Optional Powered Locomotion
  • Wheels - Non-marking anti-static
  • Front Wheels - Stainless Steel 50mm / 85mm pallet wheels (rocking pallet or swivel castor options)
  • Rear Wheels - Stainless Steel 125mm Swivel castors with safety foot guard and brake system 'stop-fix'
  • Lift mechanism - ball screw with direct drive DC motor
  • Interchangeable attachments
  • Digital Controls and Display with Remote Control or Joystick options
  • Easy to manoeuvre with Small Footprint for narrow spaces
  • Ease of use, streamlined construction, and enhanced safety for end users
  • Flexible and Ergonomic design
  • Food, Pharma, Medical and FMCG Industries
  • Industries include Food, Drinks, Pharmaceutical, Medical, FMCG, Labelling & Printing, Automotive, Aerospace, Marine, Industrial & Warehouse

Safety Features

  • Safety two-button function prevents the operator from inadvertently dropping the load (powered clamping)
  • Emergency Stop Button
  • Overload limit - prevents exceeding SWL and accidental damage
  • Electro-mechanical brake holds load at required height in case of power failure
  • Rear swivel castors with safety foot guard and brake

Electrics

  • Mains Power Input for charging - 100-240VAC
  • Batteries - 24-volt 36 Amp AGM gel dual batteries
  • Battery Capacity - 400 Lift and Lower cycles (C150), 300 Lift and Lower cycles (C300)
  • Charging Cycle - 4-5 hours to full charge
  • Battery Charger - 5 Amp digital Intelligent Charger with advanced battery monitoring
  • Battery Meter - LED Visual Display showing charging status
  • Electrical Safety - Emergency E-stop button
  • Electrical overload protection - Immediate stop securely holding load in place
  • Electrics - 24v Programmable controllers

Datasheets

DS Drum Handling Fixed Clamp Vertical Lift

Get in touch

Sending...
Uploading Files
Field is required
Field is required
Invalid email
  • Features & Options
  • Safety Features
  • Electrics
  • Product Data Sheet
  • Get in touch
Packline | Drum Lifting Clamp Attachment – Fixed, Vertical Lift, No Rotation 1
Packline | Drum Lifting Clamp Attachment – Fixed, Vertical Lift, No Rotation 2
Packline | Drum Lifting Clamp Attachment – Fixed, Vertical Lift, No Rotation 3
Packline | Drum Lifting Clamp Attachment – Fixed, Vertical Lift, No Rotation 4
Packline | Drum Lifting Clamp Attachment – Fixed, Vertical Lift, No Rotation 5
Packline | Drum Lifting Clamp Attachment – Fixed, Vertical Lift, No Rotation 6
Packline | Drum Lifting Clamp Attachment – Fixed, Vertical Lift, No Rotation 7

Drum Lifting Clamp Attachment – Fixed, Vertical Lift, No Rotation Overview

The drum lifting attachment with vertical only lift function can be used to handle a wide range of drum types and sizes.

The clamp attachment handles drums by providing powered vertical lifting and lowering only with no rotation of the drum.

The clamp attachment has a manual handwheel or powered clamping mechanism for the grip and release actions. The clamping mechanism is fitted with a torque limiter so that the gripping pads do not over or under-tighten the external diameter of the drum.

For applications outside of the standard range, we provide a full bespoke design service offering solutions for most applications.

Packline’s range of attachments are fully interchangeable and can be easily fixed or removed from any model of ‘Compac’ fitted with the unique quick release system.

Packline | Drum Lifting Clamp Attachment – Fixed, Vertical Lift, No Rotation 8

UK Manufacture & Design

Packline Materials Handling has been designing and manufacturing lifting and handling equipment in Poole, Dorset in the UK since 1993.
Packline | Drum Lifting Clamp Attachment – Fixed, Vertical Lift, No Rotation 9

Bespoke Design services

The company’s in-house design facility and workshop enables high quality and effective solutions to be realised within short lead times.
