Drum Handling Clamp Attachment – Motorised Rotation

Lifting & Handling Solutions> Stainless Steel Drum and Barrel Handling
  • Manufactured to Customer Specifications
  • Fully Motorised clamping and rotation through 360°
  • Stainless Steel Construction 304, 316/316L, Polished Finish options
  • Lift Capacity up to 300kg
  • UK Design and Manufacture
  • A wide range of industries including Food, Pharmaceutical, Medical and FMCG
Request a quote or connect with one of our technical engineers for more details
Get in touch

See the Drum Handling Clamp Attachment – Motorised Rotation in use

Features and Options

  • Full Bespoke Design Service to suit your specific requirements

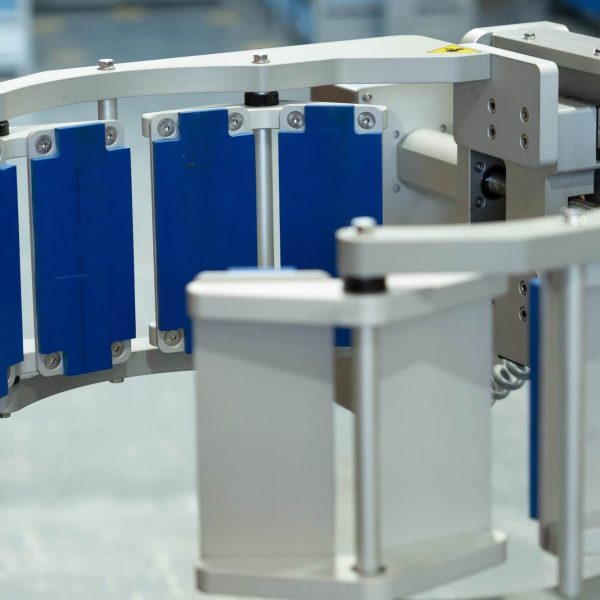

  • Fitted with Rotating FDA approved nitrile rubber pads to provide maximum grip and assist alignment
  • A range of clamps – Interchangeable, pre-shaped pads, rollers.
  • Suitable for load diameters up to 650mm as standard (bespoke options available up to 850mm)
  • Adjustable electronic torque control for powered clamp functions
  • Lift Height up to 1850mm (bespoke options up to 3000mm)
  • IP Rating IP30C or IP65
  • Standard or Wide Straddle Legs
  • Electric Lift with variable speed control option for precise movements
  • Optional adjustable height stop positions for repetitive lifting operations
  • Optional Position control
  • Optional Powered Locomotion
  • Wheels - Non-marking anti-static
  • Front Wheels - Stainless Steel 50mm / 85mm pallet wheels (rocking pallet or swivel castor options)
  • Rear Wheels - Stainless Steel 125mm Swivel castors with safety foot guard and brake system 'stop-fix'
  • Lift mechanism - ball screw with direct drive DC motor
  • Interchangeable attachments
  • Digital Controls and Display with Remote Control or Joystick options
  • Easy to manoeuvre with Small Footprint for narrow spaces
  • Ease of use, streamlined construction, and enhanced safety for end users
  • Flexible and Ergonomic design
  • CE and UKCA Compliant
  • Industries include Food, Drinks, Pharmaceutical, Medical, FMCG, Labelling & Printing, Automotive, Aerospace, Marine, Industrial & Warehouse

Safety Features

  • Safety two-button function prevents the operator from inadvertently dropping the load
  • Emergency Stop Button
  • Overload limit - prevents exceeding SWL and accidental damage
  • Electro-mechanical brake holds load at required height in case of power failure
  • Rear swivel castors with safety foot guard and brake

Electrics

  • Mains Power Input for charging - 100-240VAC
  • Batteries - 24-volt 36 Amp AGM gel dual batteries
  • Battery Capacity - 400 Lift and Lower cycles (C150), 300 Lift and Lower cycles (C300)
  • Charging Cycle - 4-5 hours to full charge
  • Battery Charger - 5 Amp digital Intelligent Charger with advanced battery monitoring
  • Battery Meter - LED Visual Display showing charging status
  • Electrical Safety - Emergency E-stop button
  • Electrical overload protection - Immediate stop securely holding load in place
  • Electrics - 24v Programmable controllers

Datasheets

DS Powered Drum Handling

Get in touch

Sending...
Uploading Files
Field is required
Field is required
Invalid email
  • Features & Options
  • Safety Features
  • Electrics
  • Product Data Sheet
  • Get in touch
Packline | Drum Handling Clamp Attachment – Motorised Rotation 1
Packline | Drum Handling Clamp Attachment – Motorised Rotation 2
Packline | Drum Handling Clamp Attachment – Motorised Rotation 3
Packline | Drum Handling Clamp Attachment – Motorised Rotation 4
Packline | Drum Handling Clamp Attachment – Motorised Rotation 5
Packline | Drum Handling Clamp Attachment – Motorised Rotation 6
Packline | Drum Handling Clamp Attachment – Motorised Rotation 7
Packline | Drum Handling Clamp Attachment – Motorised Rotation 8
Packline | Drum Handling Clamp Attachment – Motorised Rotation 9

Drum Handling Clamp Attachment – Motorised Rotation Overview

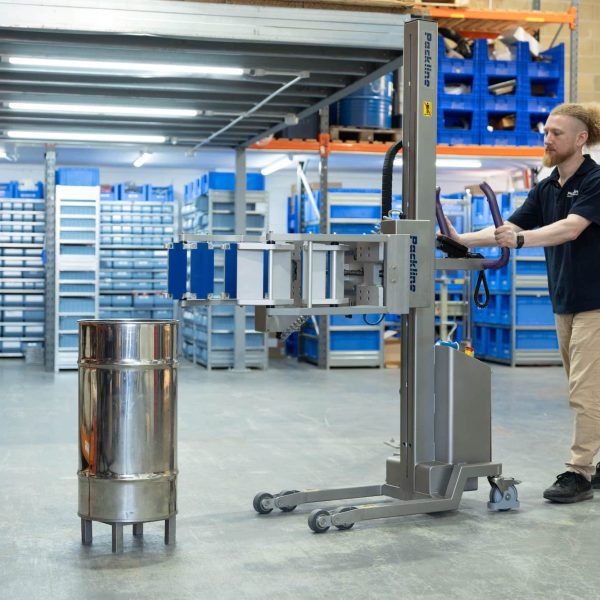

The fully powered drum handling attachment can be used to handle a wide range of drum types and sizes.

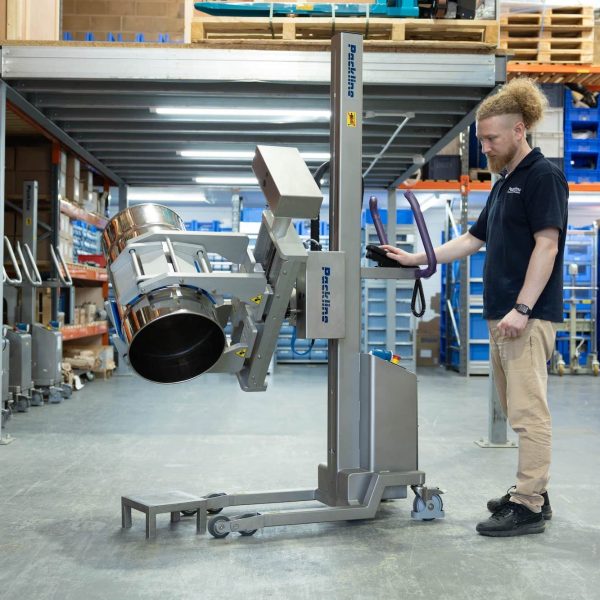

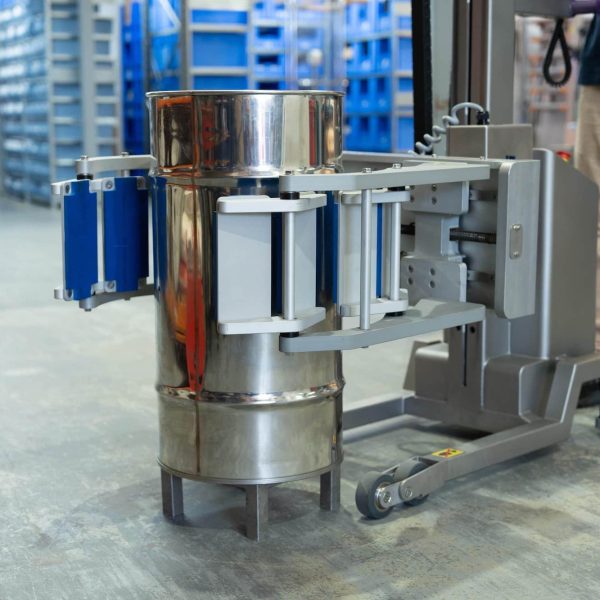

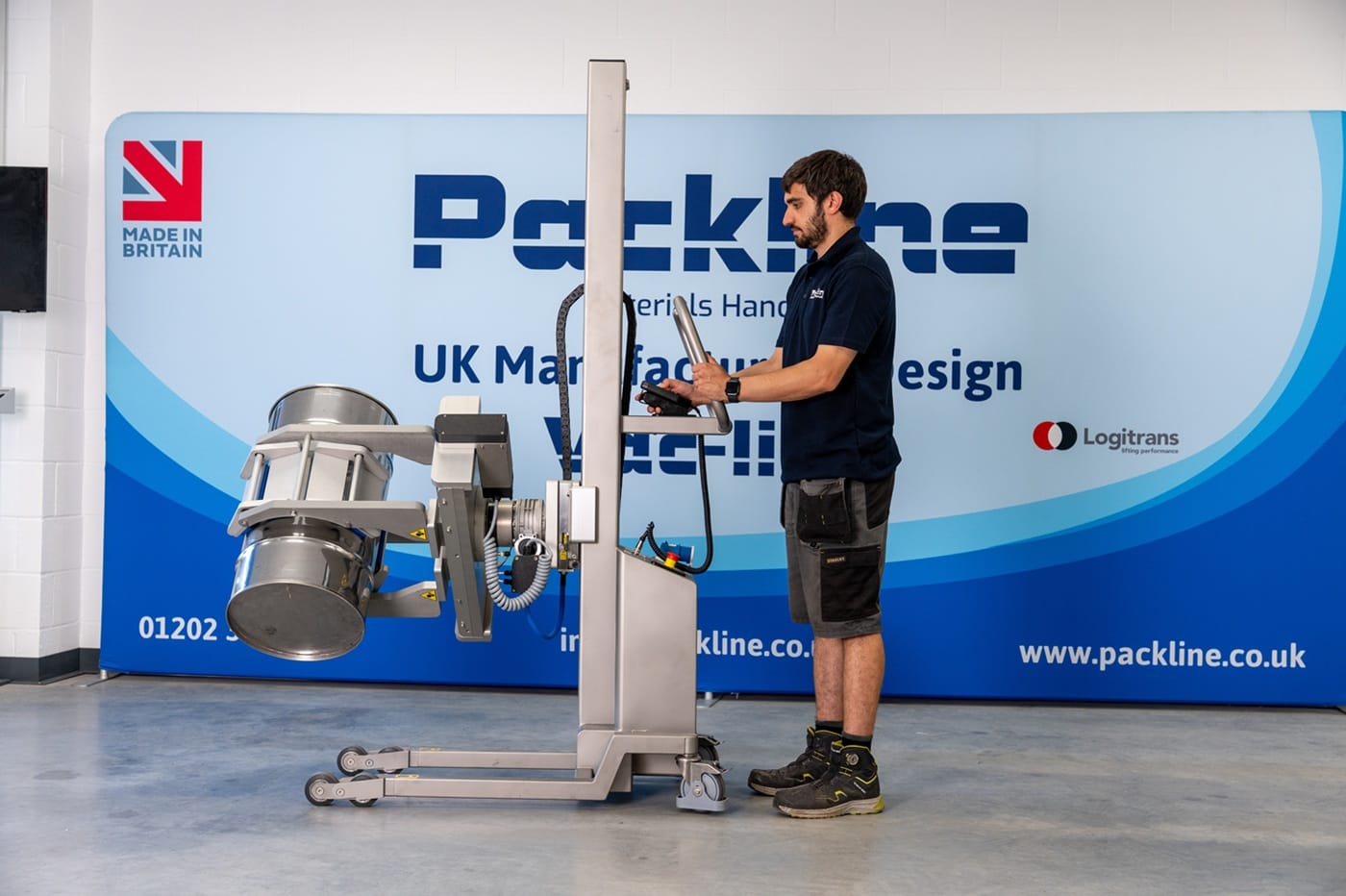

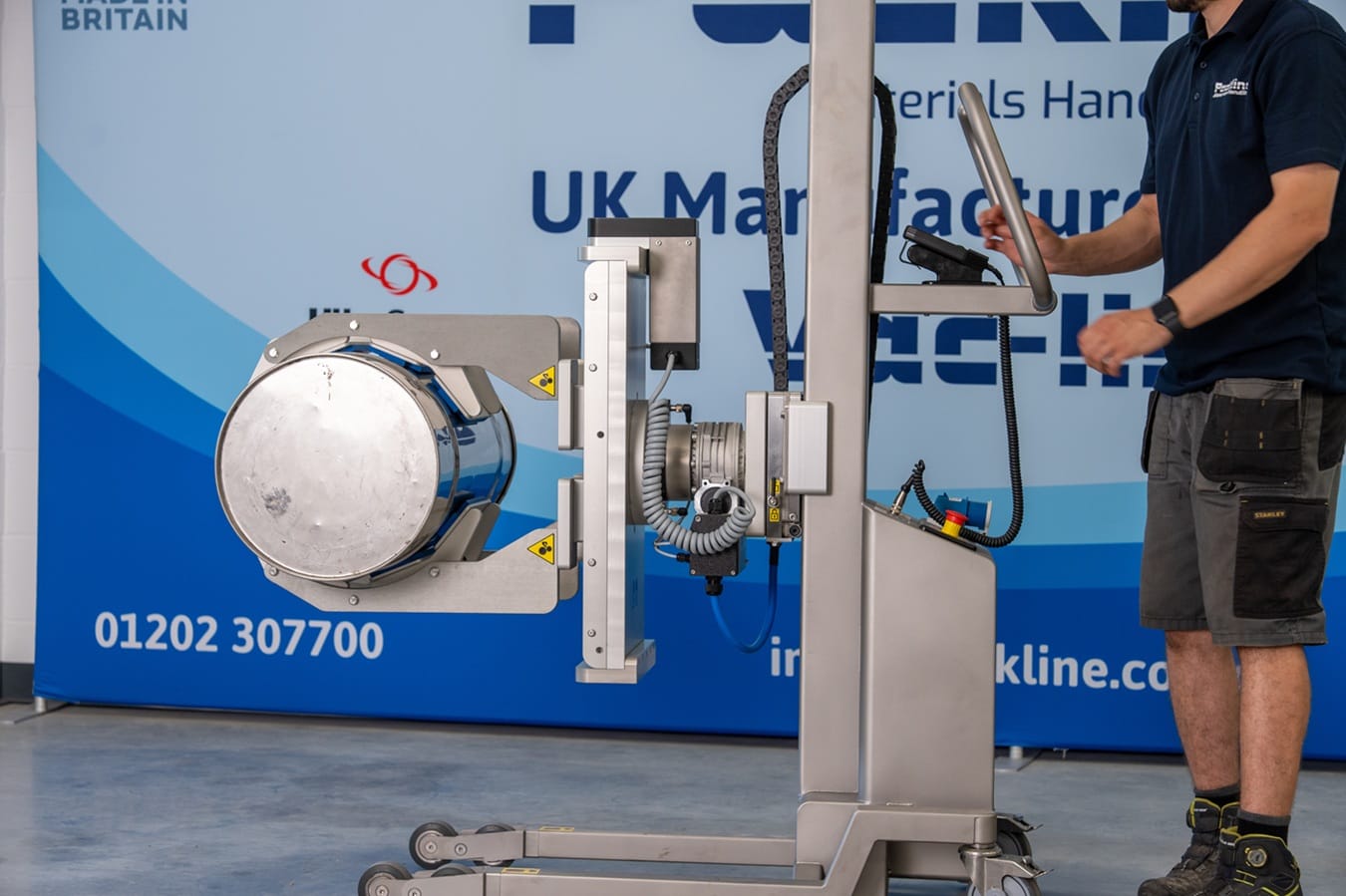

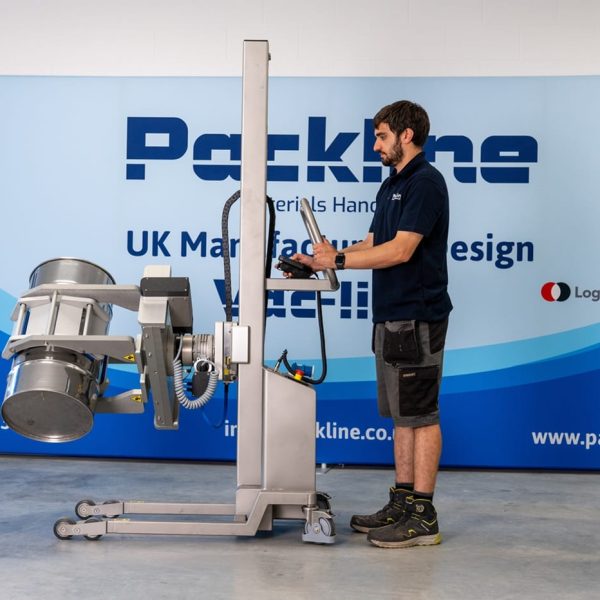

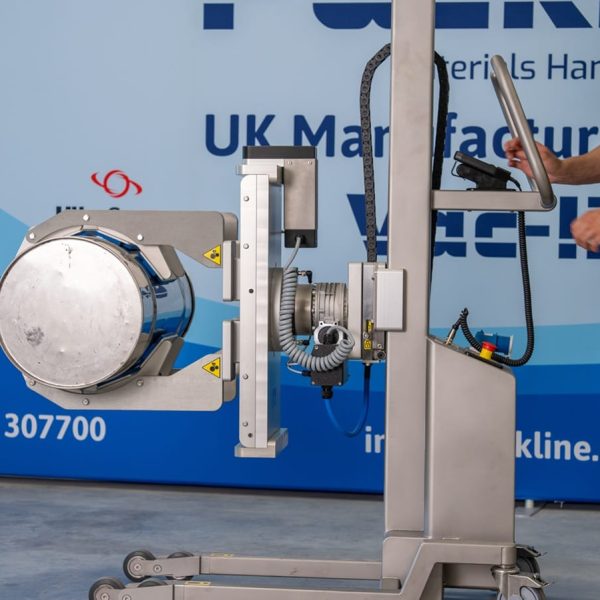

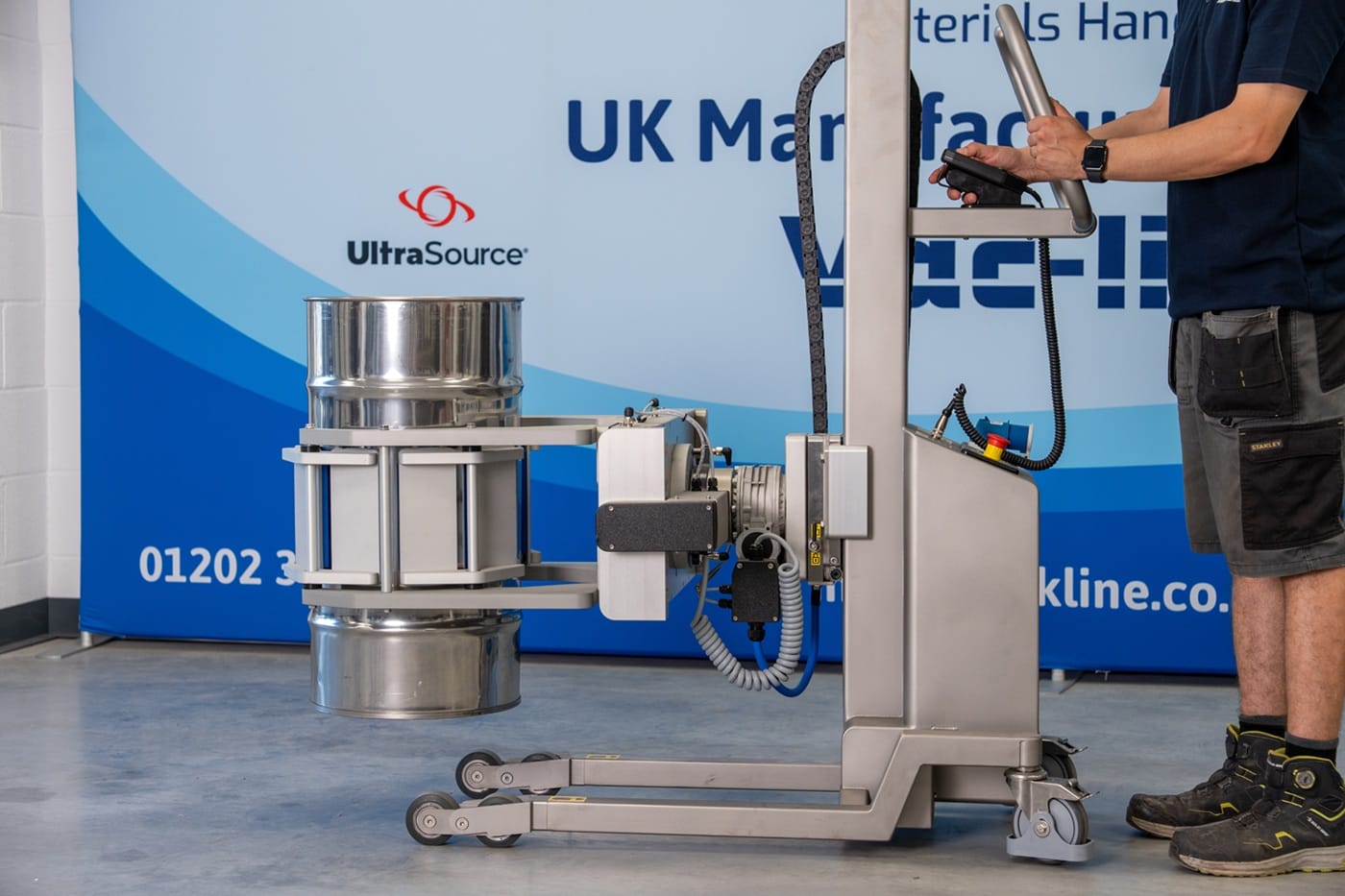

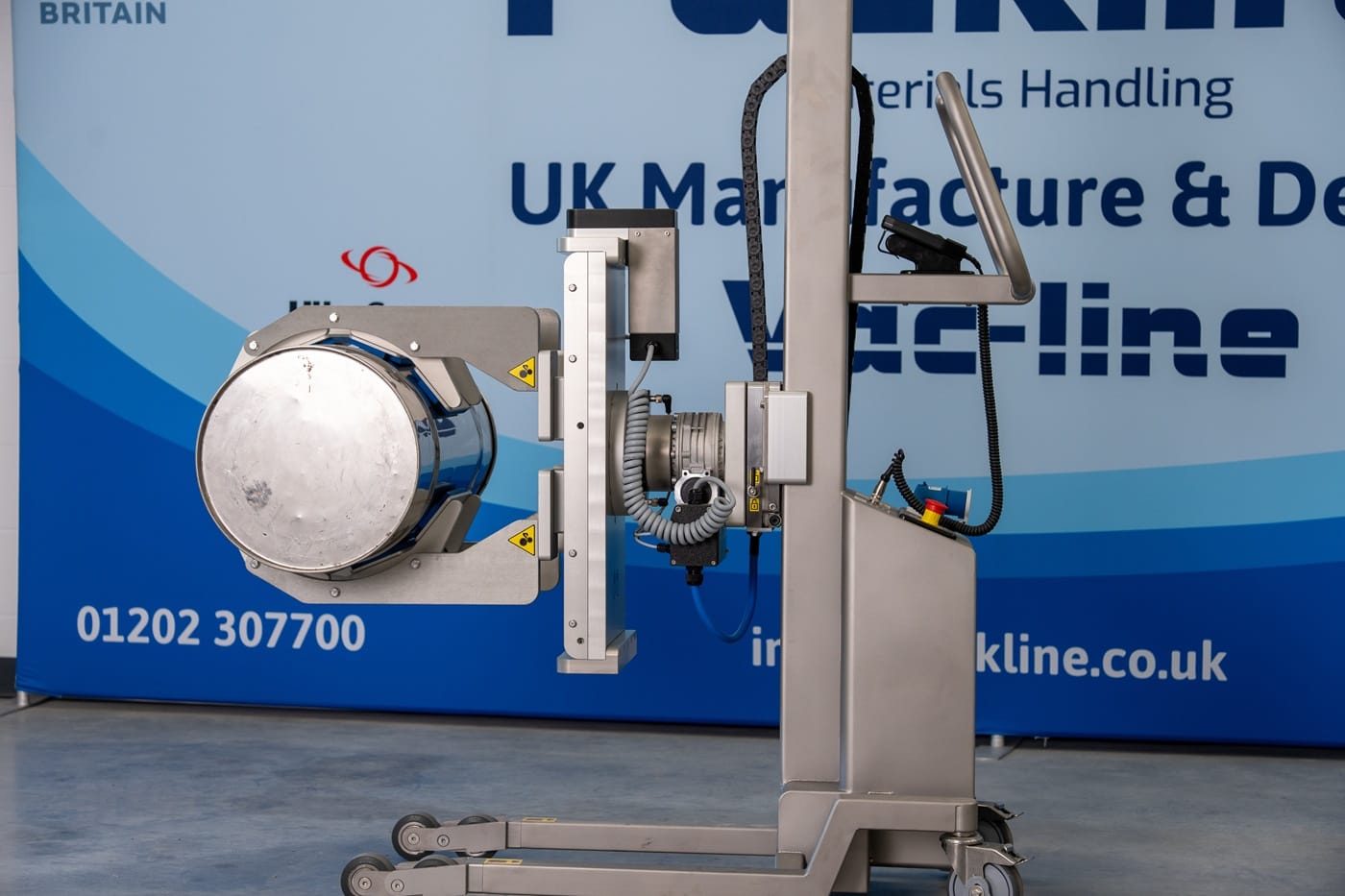

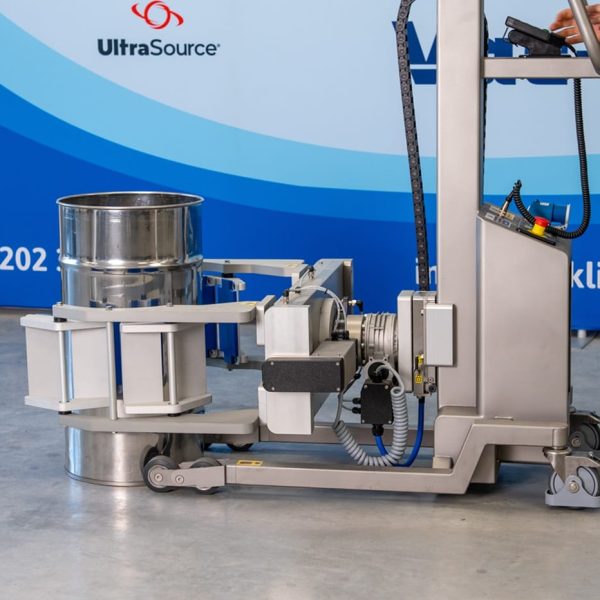

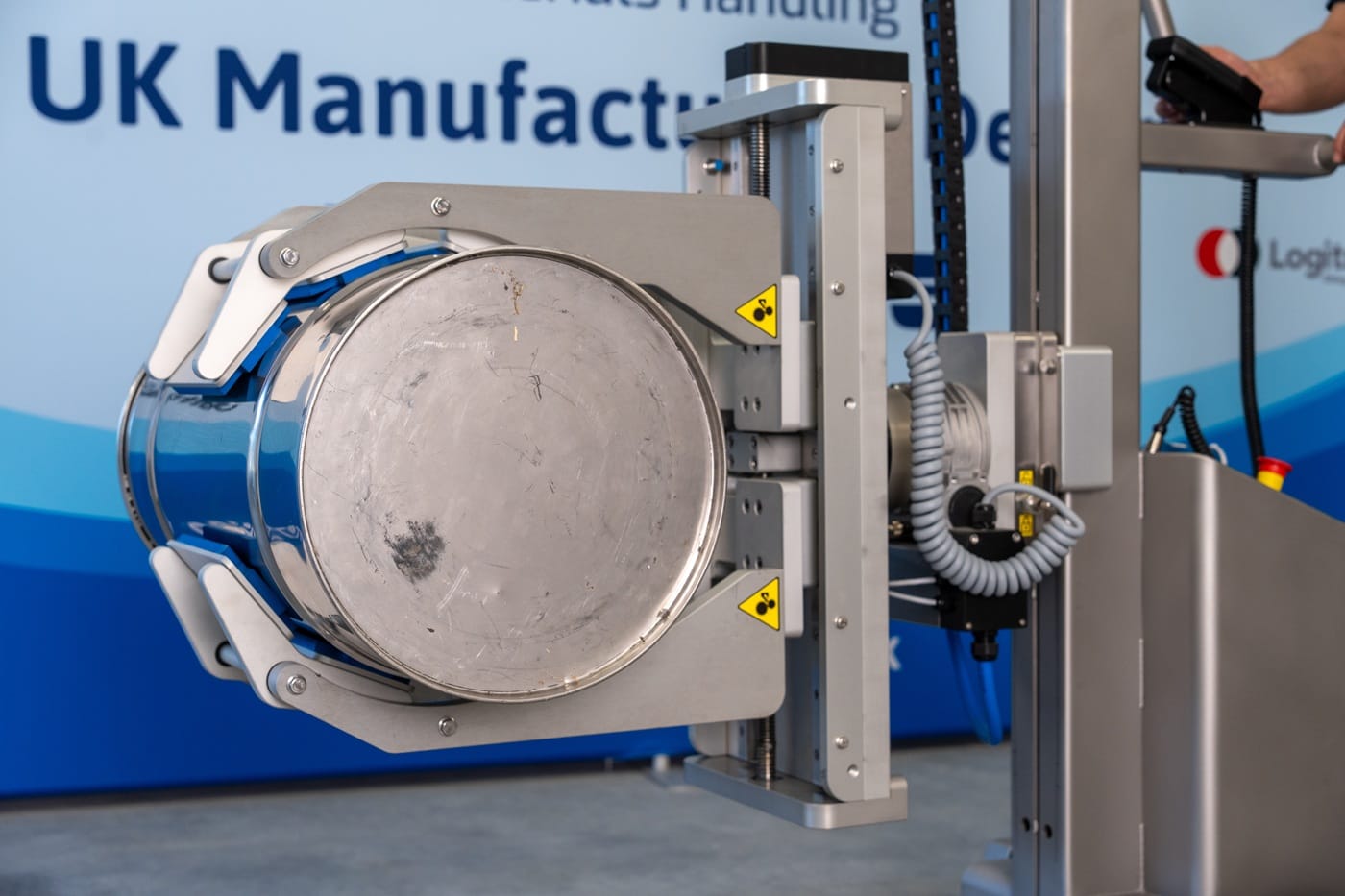

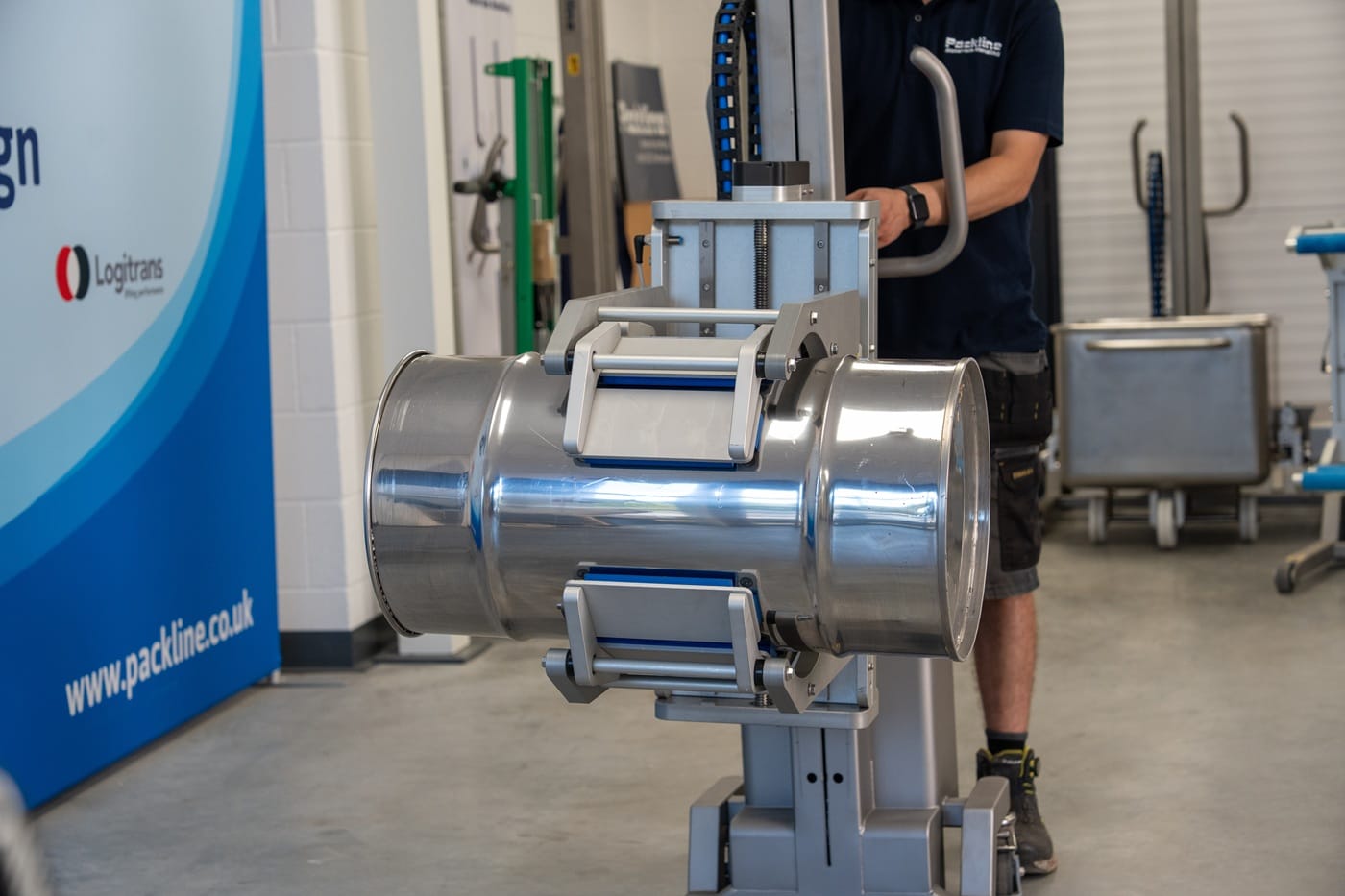

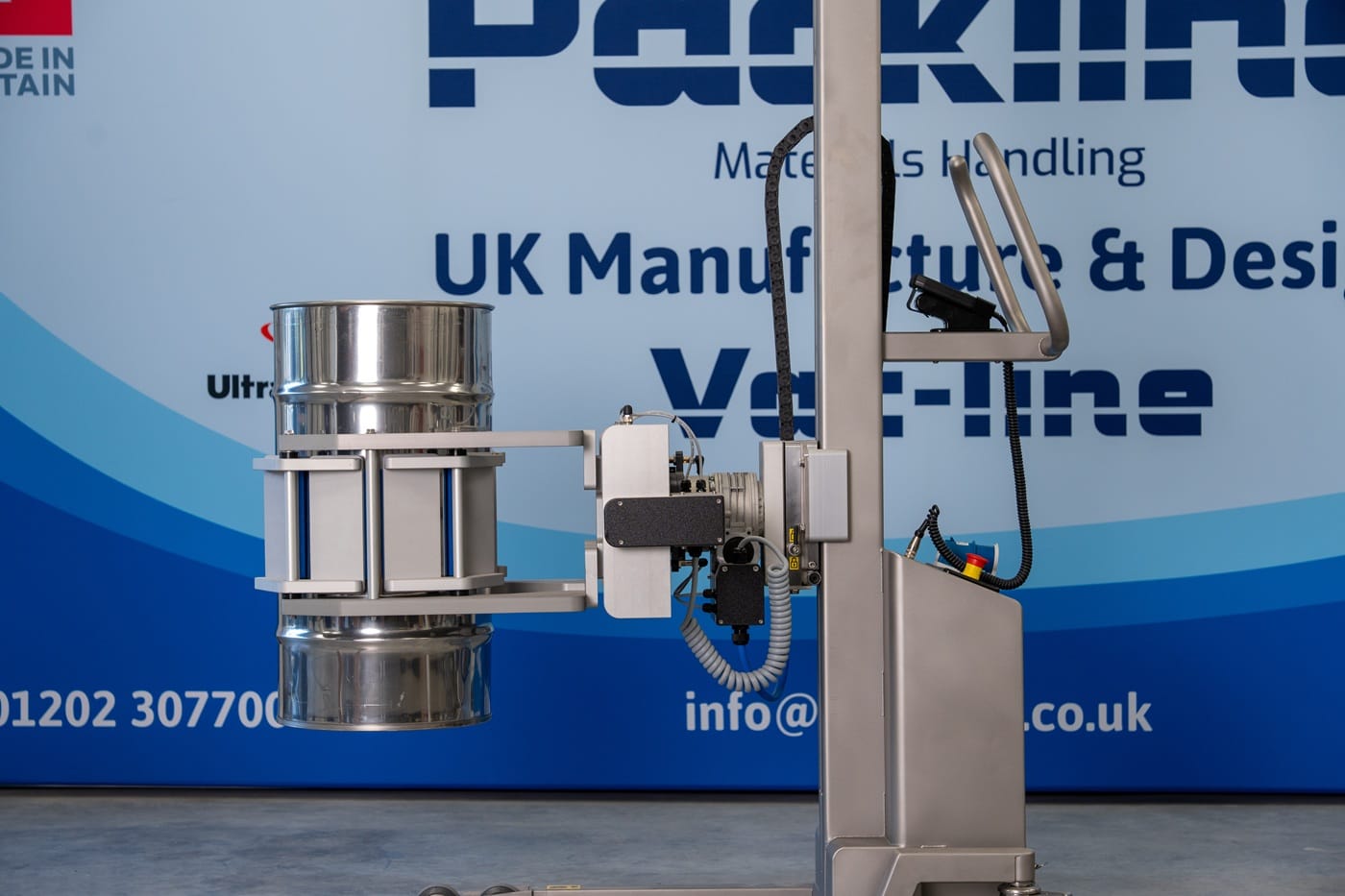

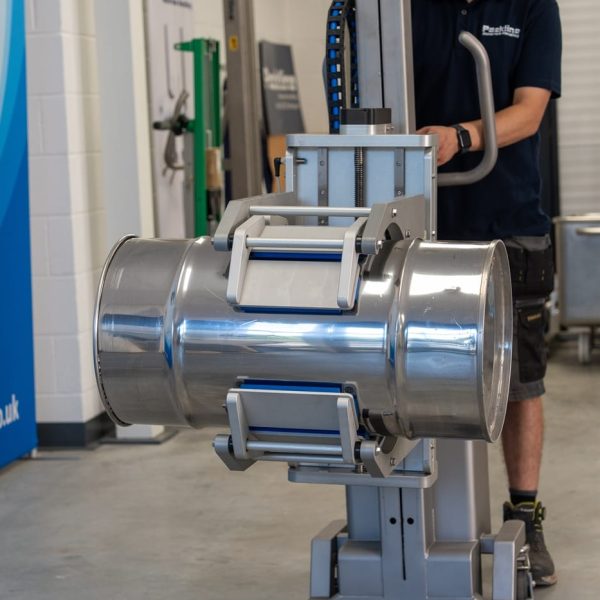

The motorised drum clamp is designed to grip drums by the circumference and rotate to any position through 360°.

The fully powered, mechanical drum lifter is equipped with powered lifting and clamping, in addition to powered rotation.

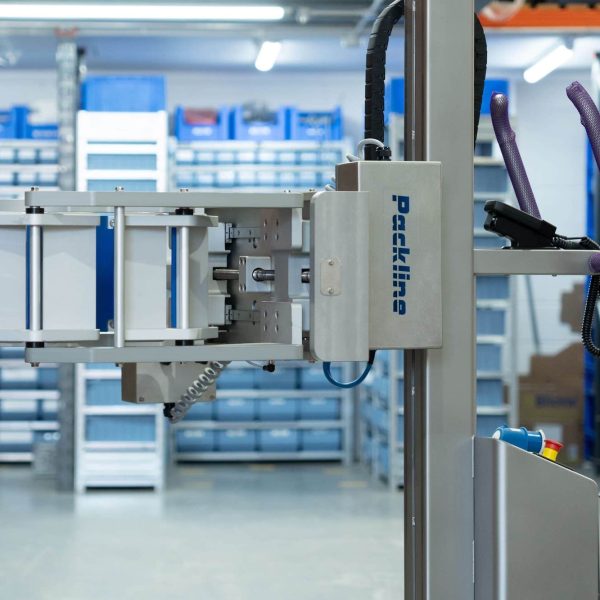

Packline’s range of drum lifting and handling attachments are fully interchangeable and can be easily fixed or removed from any model of ‘Compac’ lifter.

Packline | Drum Handling Clamp Attachment – Motorised Rotation 10
Packline | Drum Handling Clamp Attachment – Motorised Rotation 11
Packline | Drum Handling Clamp Attachment – Motorised Rotation 12
Packline | Drum Handling Clamp Attachment – Motorised Rotation 13
Packline | Drum Handling Clamp Attachment – Motorised Rotation 14
Packline | Drum Handling Clamp Attachment – Motorised Rotation 15
Packline | Drum Handling Clamp Attachment – Motorised Rotation 16
Drum Handling
Packline | Drum Handling Clamp Attachment – Motorised Rotation 17

UK Manufacture & Design

Packline Materials Handling has been designing and manufacturing lifting and handling equipment in Poole, Dorset in the UK since 1993.
Packline | Drum Handling Clamp Attachment – Motorised Rotation 18

Bespoke Design services

The company’s in-house design facility and workshop enables high quality and effective solutions to be realised within short lead times.
