Drum Handling Clamp Attachment – Manual Rotation

Manufactured to Customer Specifications
Manual clamping and rotation through 360° with optional 'stops' at preset angles
Stainless Steel Construction 304, 316/316L, Polished Finish options
Lift Capacity up to 300kg
UK Design and Manufacture
A wide range of industries including Food, Pharmaceutical, Medical and FMCG

Request a quote or connect with one of our technical engineers for more details

Get in touch

See the Drum Handling Clamp Attachment – Manual Rotation in use

Features and Options

Full Bespoke Design Service to suit your specific requirements
Lift Height up to 1850mm (bespoke options up to 3000mm)
Fitted with Rotating FDA approved nitrile rubber pads to provide maximum grip and assist alignment
A range of clamps – Interchangeable, pre-shaped pads, rollers.
Suitable for load diameters up to 650mm as standard (bespoke options available up to 850mm)
Mechanical torque mechanism to ensure correct gripping pressure is applied preventing over tightening and damage to load
IP Rating IP30C or IP65
Standard or Wide Straddle Legs
Electric Lift with variable speed control option for precise movements
Optional adjustable height stop positions for repetitive lifting operations
Optional Position control
Optional Powered Locomotion
Wheels - Non-marking anti-static
Front Wheels - Stainless Steel 50mm / 85mm pallet wheels (rocking pallet or swivel castor options)
Rear Wheels - Stainless Steel 125mm Swivel castors with safety foot guard and brake system 'stop-fix'
Lift mechanism - ball screw with direct drive DC motor
Interchangeable attachments
Digital Controls and Display with Remote Control or Joystick options
Easy to manoeuvre with Small Footprint for narrow spaces
Ease of use, streamlined construction, and enhanced safety for end users
Flexible and Ergonomic design
Industries include Food, Drinks, Pharmaceutical, Medical, FMCG, Labelling & Printing, Automotive, Aerospace, Marine, Industrial & Warehouse

Safety Features

Emergency Stop Button
Overload limit - prevents exceeding SWL and accidental damage
Electro-mechanical brake holds load at required height in case of power failure
Rear swivel castors with safety foot guard and brake

Electrics

Mains Power Input for charging - 100-240VAC
Batteries - 24-volt 36 Amp AGM gel dual batteries
Battery Capacity - 400 Lift and Lower cycles (C150), 300 Lift and Lower cycles (C300)
Charging Cycle - 4-5 hours to full charge
Battery Charger - 5 Amp digital Intelligent Charger with advanced battery monitoring
Battery Meter - LED Visual Display showing charging status
Electrical Safety - Emergency E-stop button
Electrical overload protection - Immediate stop securely holding load in place
Electrics - 24v Programmable controllers

Datasheets

DS Drum Handling Clamp Manual Rotation

Get in touch

Features & Options
Safety Features
Electrics
Product Data Sheet
Get in touch

Packline | Drum Handling Clamp Attachment – Manual Rotation 1

Packline | Drum Handling Clamp Attachment – Manual Rotation 2

Packline | Drum Handling Clamp Attachment – Manual Rotation 3

Packline | Drum Handling Clamp Attachment – Manual Rotation 4

Packline | Drum Handling Clamp Attachment – Manual Rotation 5

Packline | Drum Handling Clamp Attachment – Manual Rotation 6

Packline | Drum Handling Clamp Attachment – Manual Rotation 7

Packline | Drum Handling Clamp Attachment – Manual Rotation 8

Packline | Drum Handling Clamp Attachment – Manual Rotation 9

Drum Handling Clamp Attachment – Manual Rotation Overview

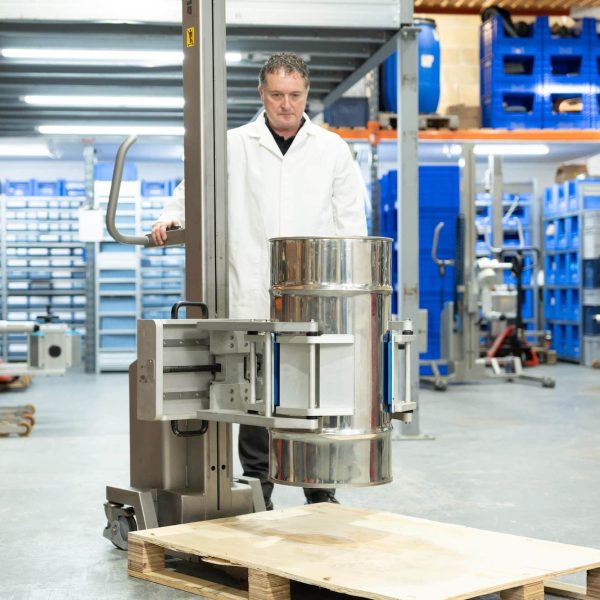

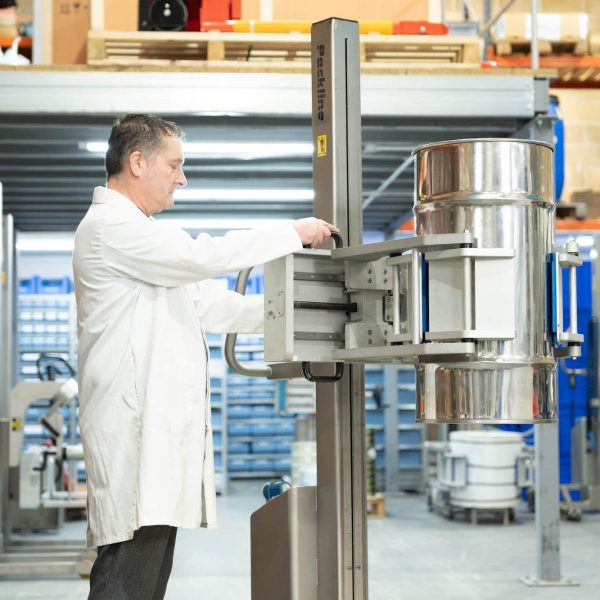

The drum handling attachment with manual rotation can be used to handle a wide range of drum types and sizes.

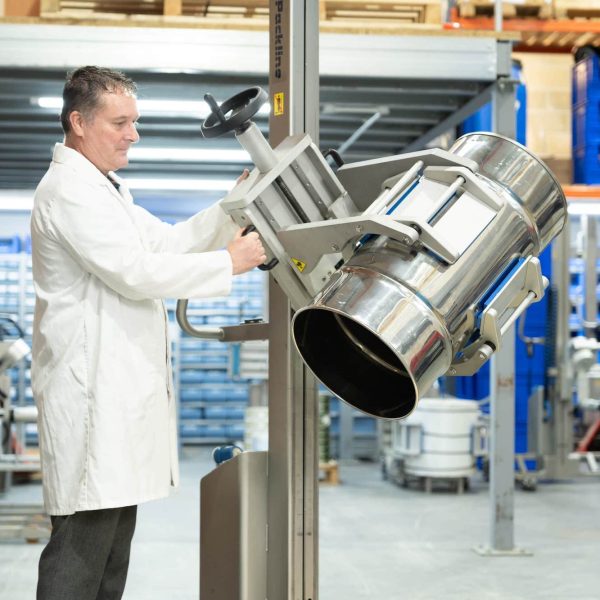

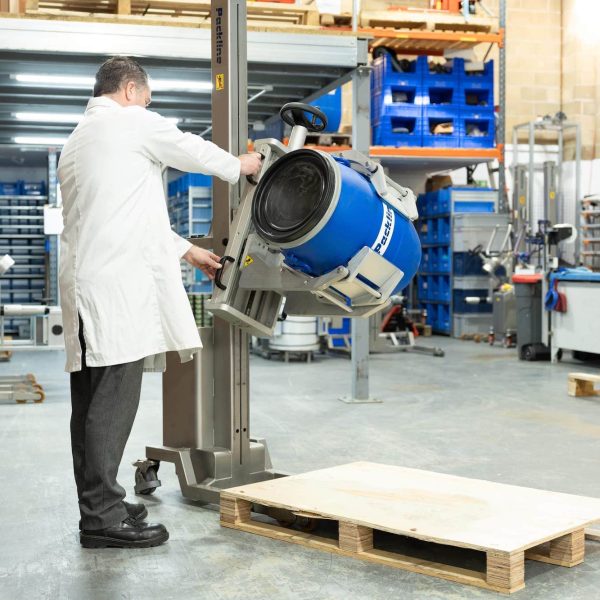

The geared drum clamp has been designed to grip drums by the circumference and rotate to any position through 360°.

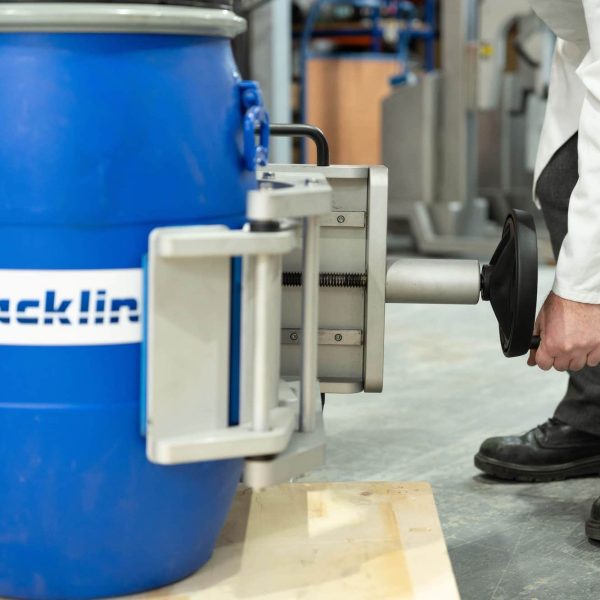

The drum clamp is manually rotated. The drums are securely gripped by the external diameter. A handwheel provides the clamping and release actions and the mechanism has a torque limiter fitted so that the pads so not over on under-tighten.

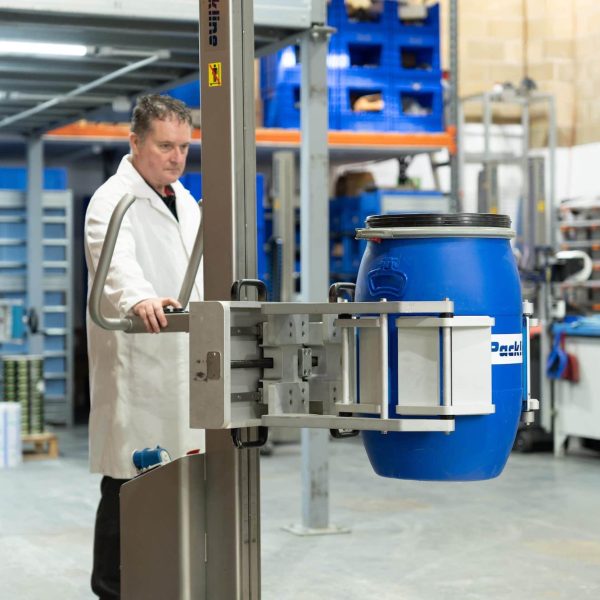

Ergonomically placed handles on the clamp attachment facilitate easy operator rotation of the drum through 360 degrees.

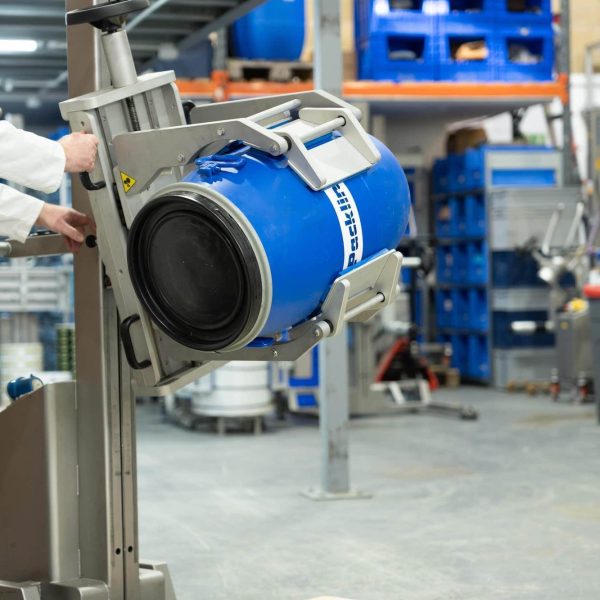

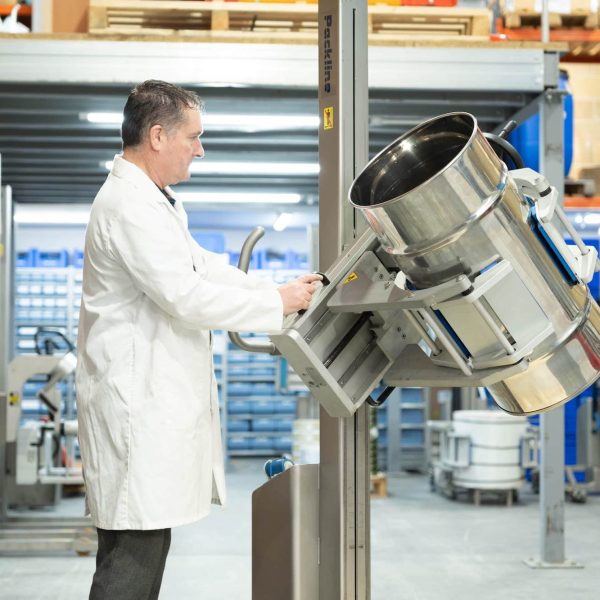

Optional fixed ‘stops’ at pre-set positions enable the drum to be rotated to pre-set angles for lifting and emptying of ingredients at 90 and 180 degrees or any angle as
required.

Packline’s range of drum lifting and handling attachments are fully interchangeable and can be easily fixed or removed from any model of ‘Compac’ lifter.

For applications outside of the standard range, we provide a full bespoke design service offering solutions for most applications.

Packline’s range of attachments are fully interchangeable and can be easily fixed or removed from any model of ‘Compac’ fitted with the unique quick release system.
