Drum Handling Clamp Attachment – Forward Tipping

Lifting & Handling Solutions> Stainless Steel Drum and Barrel Handling
  • Manufactured to Customer Specifications
  • Stainless Steel Construction 304, 316/316L, Polished Finish options
  • Manual / Gearbox Assisted / Fully Motorised options
  • Lift Capacity up to 300kg
  • UK Design and Manufacture
  • A wide range of industries including Food, Pharmaceutical, Medical and FMCG
Request a quote or connect with one of our technical engineers for more details
Get in touch

See the Drum Handling Clamp Attachment – Forward Tipping in use

Features and Options

  • Full Bespoke Design Service to suit your specific requirements
  • Manual or powered clamping with manual, gearbox assisted or powered forward tipping
  • A range of clamps – Interchangeable, pre-shaped pads, rollers.
  • Fitted with Rotating FDA approved nitrile rubber pads to provide maximum grip and assist alignment
  • Suitable for load diameters up to 650mm as standard (bespoke options available up to 850mm)
  • Mechanical torque mechanism to ensure correct gripping pressure is applied preventing over tightening and damage to load (manual and geared rotation)
  • Adjustable electronic torque control for powered clamp functions
  • Lift Height up to 1850mm (bespoke options up to 3000mm)
  • IP Rating IP30C or IP65
  • Standard or Wide Straddle Legs
  • Electric Lift with variable speed control option for precise movements
  • Optional adjustable height stop positions for repetitive lifting operations
  • Optional Position control
  • Optional Powered Locomotion
  • Wheels - Non-marking anti-static
  • Front Wheels - Stainless Steel 50mm / 85mm pallet wheels (rocking pallet or swivel castor options)
  • Rear Wheels - Stainless Steel 125mm Swivel castors with safety foot guard and brake system 'stop-fix'
  • Lift mechanism - ball screw with direct drive DC motor
  • Interchangeable attachments
  • Digital Controls and Display with Remote Control or Joystick options
  • Easy to manoeuvre with Small Footprint for narrow spaces
  • Ease of use, streamlined construction, and enhanced safety for end users
  • Flexible and Ergonomic design
  • CE and UKCA Compliant
  • Industries include Food, Drinks, Pharmaceutical, Medical, FMCG, Labelling & Printing, Automotive, Aerospace, Marine, Industrial & Warehouse

Safety Features

  • Safety two-button function prevents the operator from inadvertently dropping the load (powered clamping/rotation)
  • Emergency Stop Button
  • Overload limit - prevents exceeding SWL and accidental damage
  • Electro-mechanical brake holds load at required height in case of power failure
  • Rear swivel castors with safety foot guard and brake

Electrics

  • Mains Power Input for charging - 100-240VAC
  • Batteries - 24-volt 36 Amp AGM gel dual batteries
  • Battery Capacity - 400 Lift and Lower cycles (C150), 300 Lift and Lower cycles (C300)
  • Charging Cycle - 4-5 hours to full charge
  • Battery Charger - 5 Amp digital Intelligent Charger with advanced battery monitoring
  • Battery Meter - LED Visual Display showing charging status
  • Electrical Safety - Emergency E-stop button
  • Electrical overload protection - Immediate stop securely holding load in place
  • Electrics - 24v Programmable controllers

Datasheets

DS Drum Handling Forward Tipping Clamp

Get in touch

Sending...
Uploading Files
Field is required
Field is required
Invalid email
  • Features & Options
  • Safety Features
  • Electrics
  • Product Data Sheet
  • Get in touch
Packline | Drum Handling Clamp Attachment – Forward Tipping 1
Packline | Drum Handling Clamp Attachment – Forward Tipping 2
Packline | Drum Handling Clamp Attachment – Forward Tipping 3
Packline | Drum Handling Clamp Attachment – Forward Tipping 4
Packline | Drum Handling Clamp Attachment – Forward Tipping 5
Packline | Drum Handling Clamp Attachment – Forward Tipping 6
Packline | Drum Handling Clamp Attachment – Forward Tipping 7
Packline | Drum Handling Clamp Attachment – Forward Tipping 8

Drum Handling Clamp Attachment – Forward Tipping Overview

The drum handling attachment with forward tipping function can be used to handle a wide range of drum types and sizes.

The clamp attachment handles drums by providing powered or manual clamping, as well as powered, manual or geared forward rotation mechanisms.

The motorised clamping and forward tipping can be operated via a handheld pendant control. Alternatively, a handwheel provides the manual clamping action, with a second handwheel providing the geared forward tipping mechanism.

Packline’s range of drum lifting and handling attachments are fully interchangeable and can be easily fixed or removed from any model of ‘Compac’ lifter.

For applications outside of the standard range, we provide a full bespoke design service offering solutions for most applications.

Packline’s range of attachments are fully interchangeable and can be easily fixed or removed from any model of ‘Compac’ fitted with the unique quick release system.

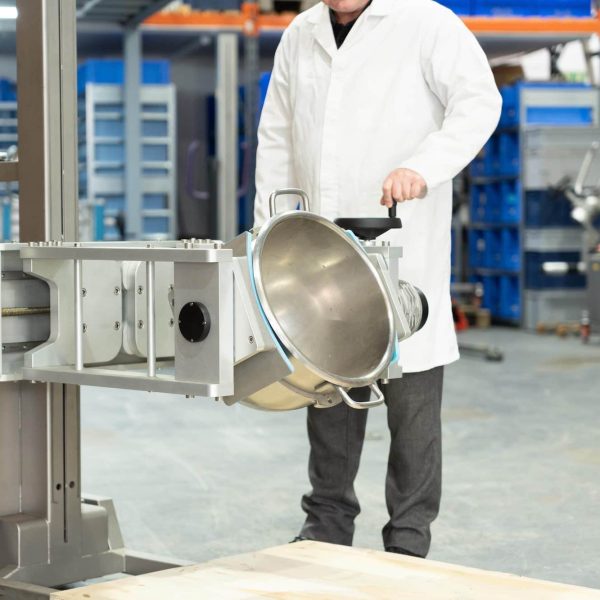

Packline | Drum Handling Clamp Attachment – Forward Tipping 9

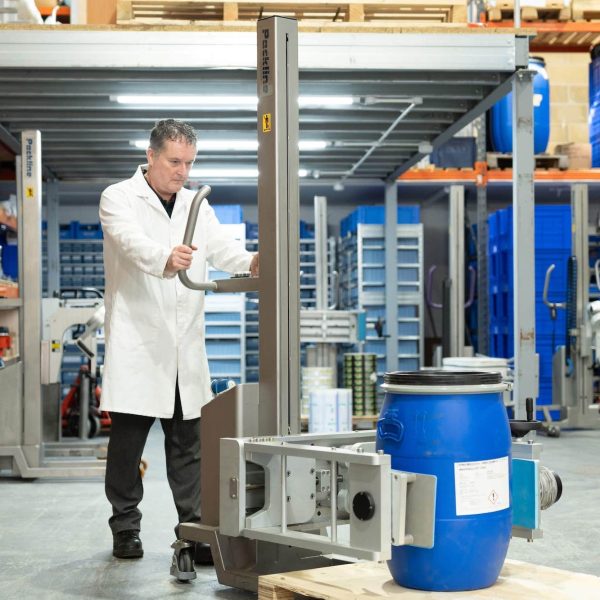

Packline | Drum Handling Clamp Attachment – Forward Tipping 10

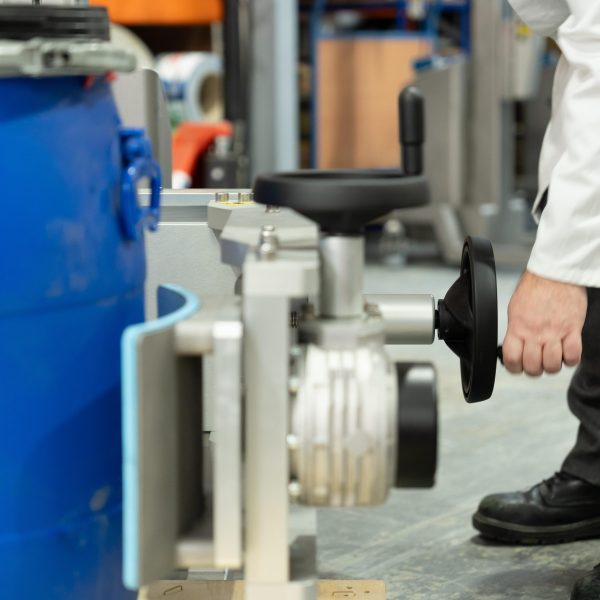

Packline | Drum Handling Clamp Attachment – Forward Tipping 11

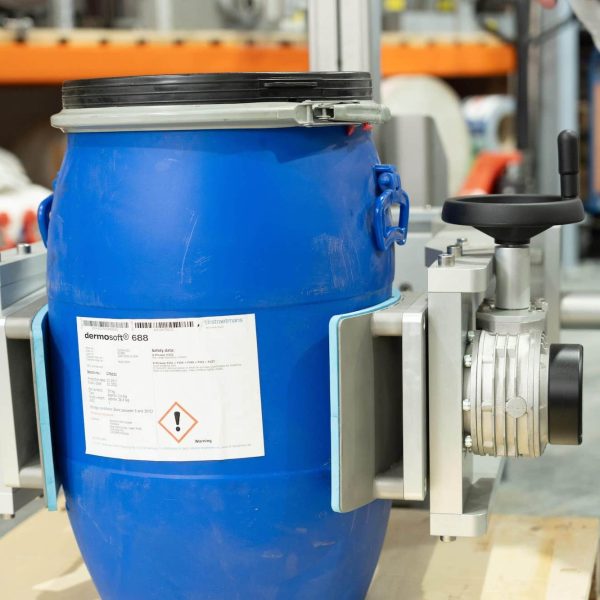

Packline | Drum Handling Clamp Attachment – Forward Tipping 12

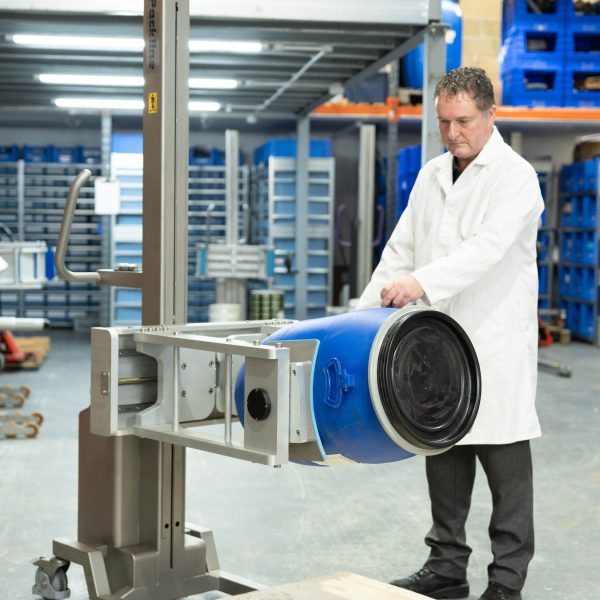

Packline | Drum Handling Clamp Attachment – Forward Tipping 13

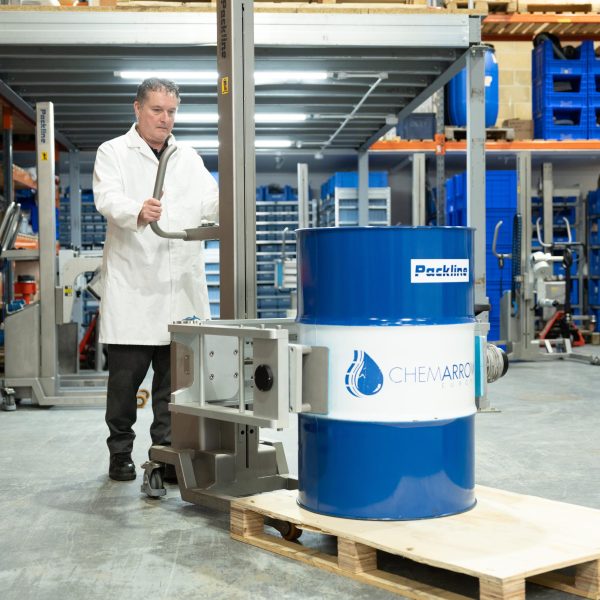

Packline | Drum Handling Clamp Attachment – Forward Tipping 14

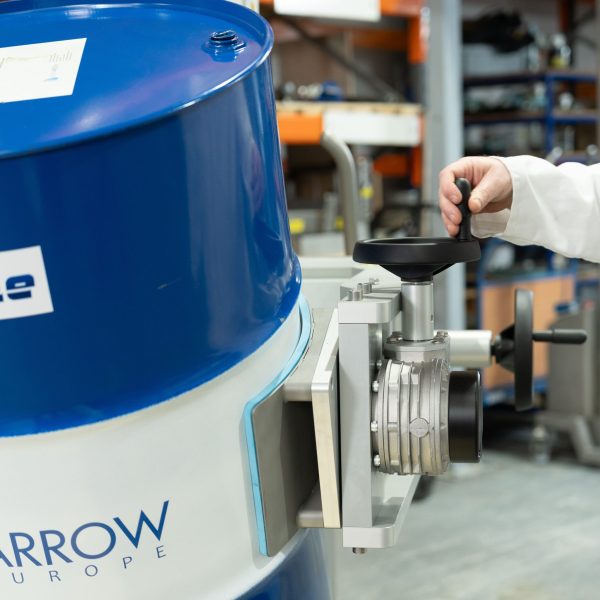

Packline | Drum Handling Clamp Attachment – Forward Tipping 15

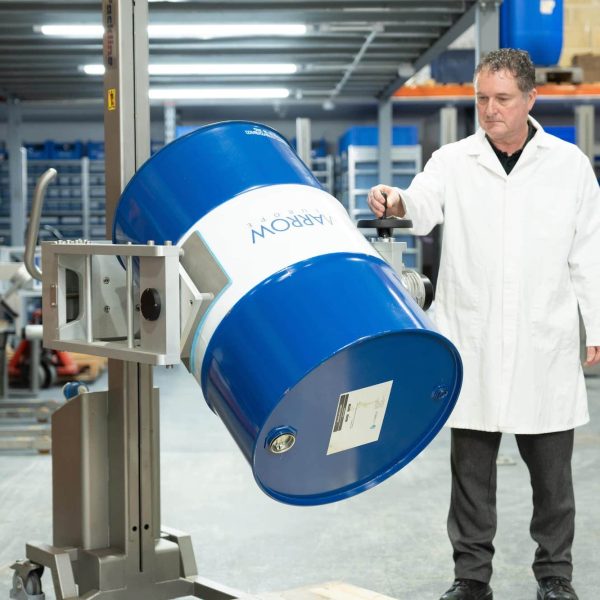

Packline | Drum Handling Clamp Attachment – Forward Tipping 16
Packline | Drum Handling Clamp Attachment – Forward Tipping 17

UK Manufacture & Design

Packline Materials Handling has been designing and manufacturing lifting and handling equipment in Poole, Dorset in the UK since 1993.
Packline | Drum Handling Clamp Attachment – Forward Tipping 18

Bespoke Design services

The company’s in-house design facility and workshop enables high quality and effective solutions to be realised within short lead times.
