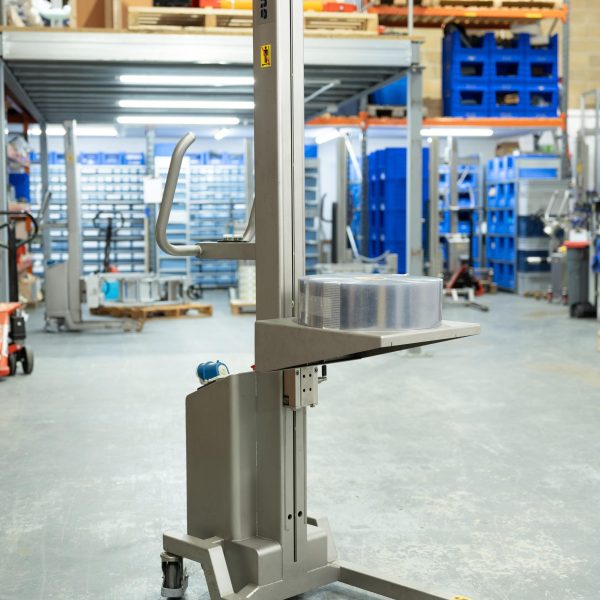

Compac with Platform Attachment

Manufactured to Customer Specifications
Lift and position loads such as reels, drums, components, boxes, tooling, assemblies
Applications include work positioning on assembly lines and work areas
Optional 'Any Level' Self-Levelling mechanism for loading/unloading at a constant level
Stainless Steel Construction 304, 316/316L, Polished Finish options
UK Design and Manufacture

Request a quote or connect with one of our technical engineers for more details

Get in touch

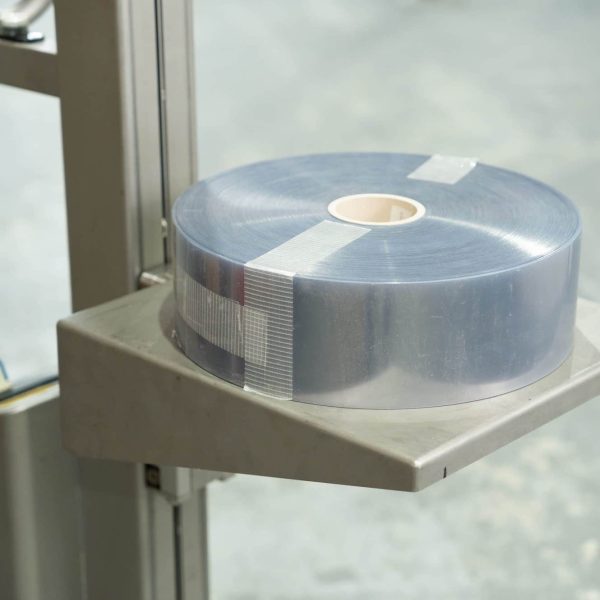

See the Compac with Platform Attachment in use

Features and Options

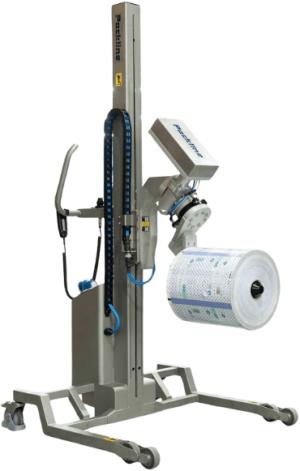

Full Bespoke Design Service to suit your specific requirements
Lift Capacity up to 300kg
Lift Height up to 1850mm (bespoke options up to 3000mm)
IP Rating IP30C or IP65
Standard or Wide Straddle Legs
Electric Lift with variable speed control option for precise movements
Optional adjustable height stop positions for repetitive lifting operations
Optional Position control
Optional Powered Locomotion
Wheels - Non-marking anti-static
Front Wheels - Stainless Steel 50mm / 85mm pallet wheels (rocking pallet or swivel castor options)
Rear Wheels - Stainless Steel 125mm Swivel castors with safety foot guard and brake system 'stop-fix'
Lift mechanism - ball screw with direct drive DC motor
Interchangeable attachments
Digital Controls and Display with Remote Control or Joystick
Easy to manoeuvre with Small Footprint for narrow spaces
Ease of use, streamlined construction, and enhanced safety for end users
Flexible and Ergonomic design
CE and UKCA Compliant
Industries include Food, Drinks, Pharmaceutical, Medical, FMCG, Labelling & Printing, Automotive, Aerospace, Marine, Industrial & Warehouse

Safety Features

Emergency Stop Button
Overload limit - prevents exceeding SWL and accidental damage
Electro-mechanical brake holds load at required height in case of power failure
Rear swivel castors with safety foot guard and brake

Electrics

Mains Power Input for charging - 100-240VAC
Batteries - 24-volt 36 Amp AGM gel dual batteries
Battery Capacity - 400 Lift and Lower cycles (C150), 300 Lift and Lower cycles (C300)
Charging Cycle - 4-5 hours to full charge
Battery Charger - 5 Amp digital Intelligent Charger with advanced battery monitoring
Battery Meter - LED Visual Display showing charging status
Electrical Safety - Emergency E-stop button
Electrical overload protection - Immediate stop securely holding load in place
Electrics - 24v Programmable controllers

Datasheets

Self Levelling Auto Level Platform Attachment

Get in touch

Request a demonstration

Get in touch
Book a Demo
Features & Options
Safety Features
Electrics
Product Data Sheet

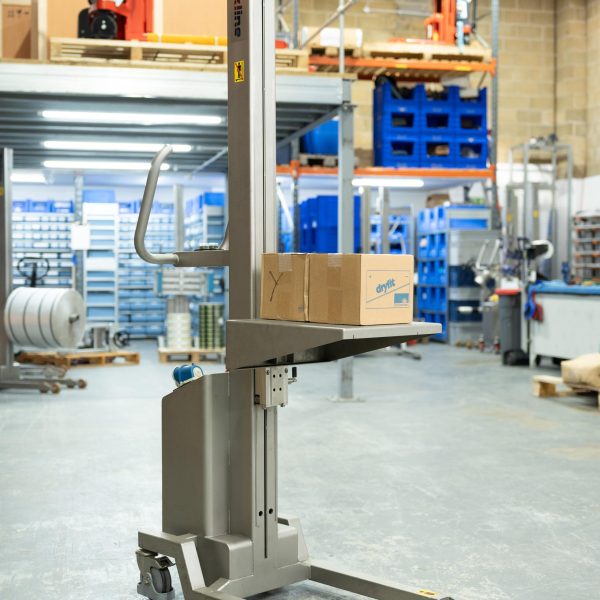

Packline | Compac with Platform Attachment 1

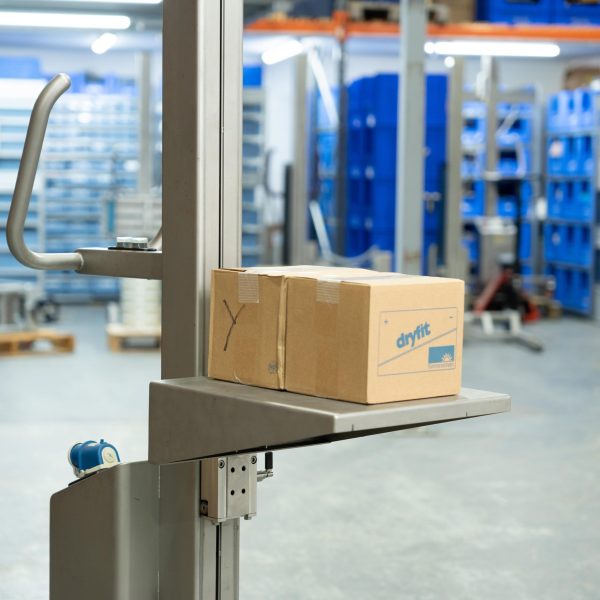

Packline | Compac with Platform Attachment 2

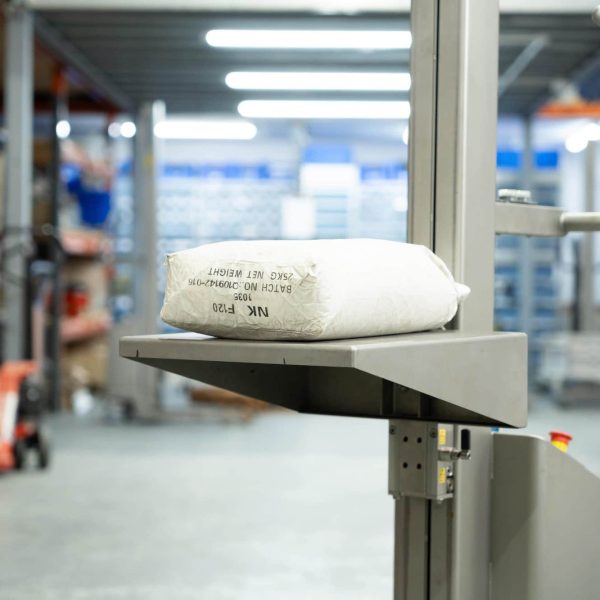

Packline | Compac with Platform Attachment 3

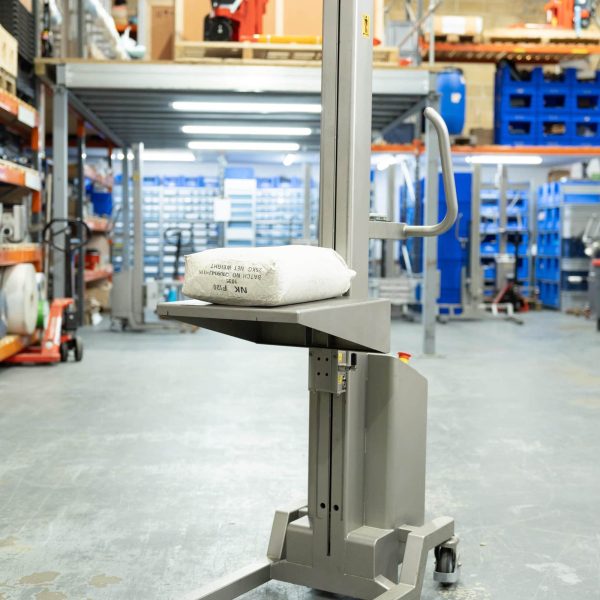

Packline | Compac with Platform Attachment 4

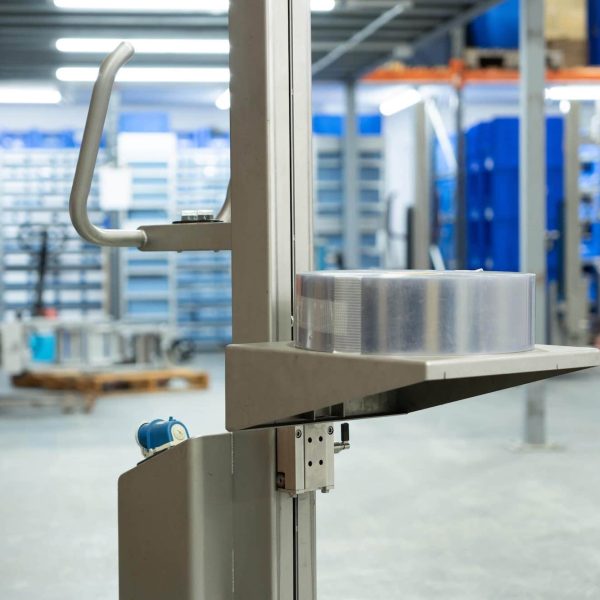

Packline | Compac with Platform Attachment 5

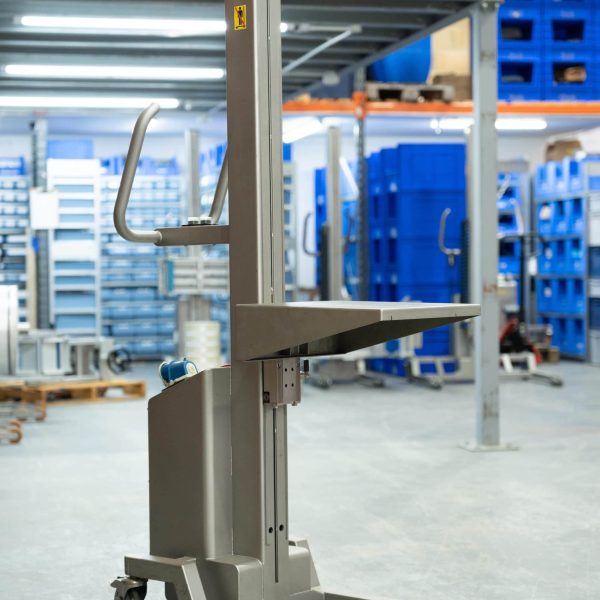

Packline | Compac with Platform Attachment 6

Compac with Platform Attachment Overview

Versatile Lifting and Positioning Solution for Cleanroom and Hygienic Environments

The Compac Stainless Steel Lifter with Platform Attachment from Packline Materials Handling provides a safe, efficient, and versatile solution for lifting, transporting, and positioning a wide variety of loads. Ideal for handling reels, drums, components, boxes, tooling, and containers, this adaptable lifting system is perfect for assembly lines, production areas, and work positioning applications.

Hygienic Stainless-Steel Construction

The Platform (Tray) Attachment is constructed from high-grade stainless steel and anodised aluminium, making it highly durable, easy to clean, and fully suitable for cleanroom and hygienic environments. This makes the Compac Lifter ideal for industries such as:

Food and Beverage
Medical and Pharmaceutical
Dairy Processing
Chemical Manufacturing

Interchangeable Attachments for Maximum Flexibility

Packline’s innovative quick-release system allows all ‘Compac’ attachments, including the Platform Attachment, to be fully interchangeable. Attachments can be easily fitted or removed in seconds, enabling a single Compac lifter to handle multiple tasks across different processes.

This versatility provides an economical and space-saving solution, reducing the need for multiple pieces of lifting equipment while improving productivity and operator safety.

Key Features

Designed for lifting and positioning a variety of loads including boxes, reels, and tooling
Robust stainless steel and anodised aluminium construction
Suitable for cleanroom and hygienic environments
Compatible with the full range of Compac quick-release attachments
Easy to clean and maintain

Ideal for the food, medical, and pharmaceutical sectors
