Clamp and Rotate Heavy Tooling

  • Manufactured to Customer Specifications
  • Clamp, Transport and Rotate multi-part tooling
  • Slide heavy tooling from storage onto the attachment in the horizontal orientation
  • Rotate to the vertical position for easy access to the tooling
  • Manual / Gearbox Assisted / Fully Motorised options
  • UK Design and Manufacture
Request a quote or connect with one of our technical engineers for more details

See the Clamp and Rotate Heavy Tooling in use

Features and Options

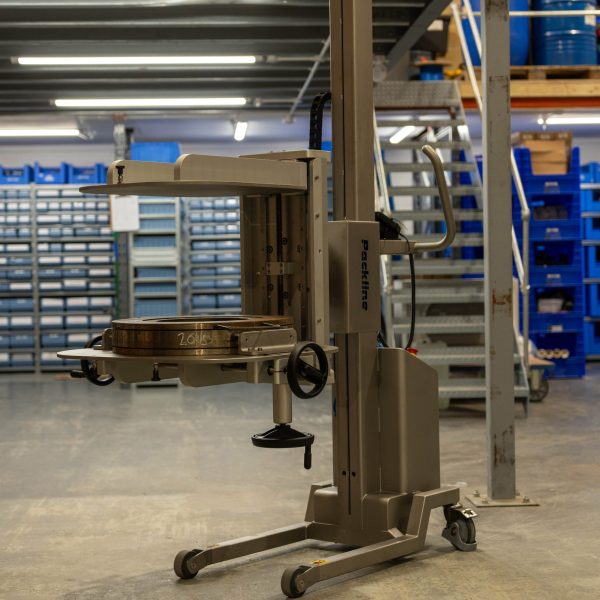

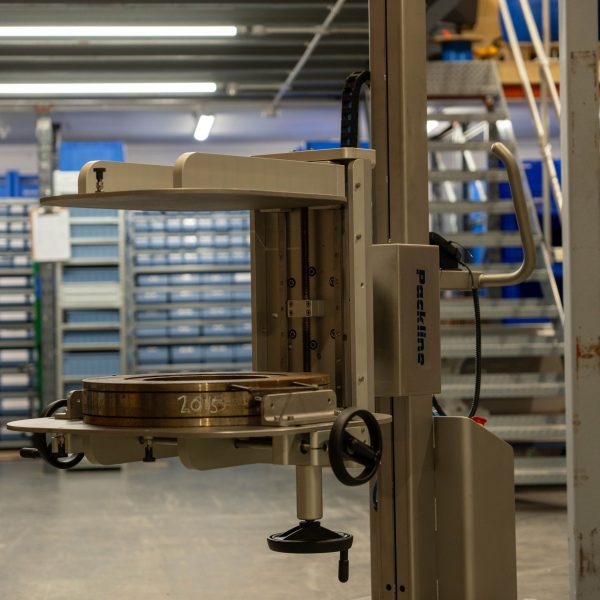

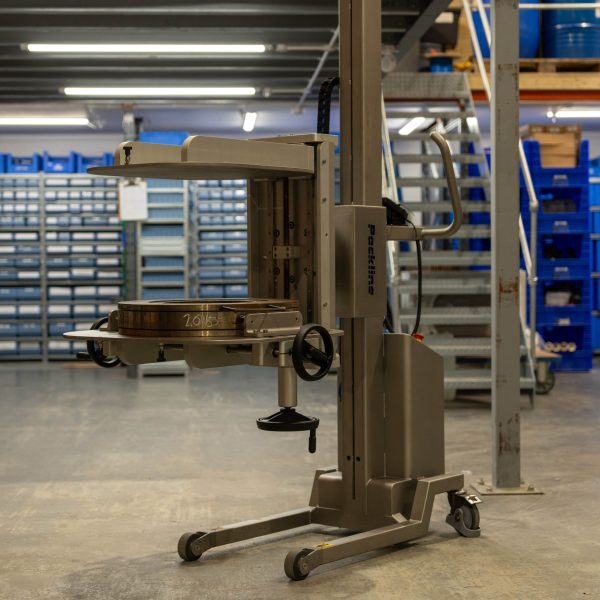

  • Clamping and rotating attachment allows operators to slide tooling from a storage trolley onto the attachment in a horizontal orientation
  • Secure clamping system with both horizontal and vertical geared mechanisms, operated via a hand-wheel
  • Tooling can be rotated to a vertical position, enabling operators to add parts with ease
  • Once assembled, tooling is transported to a press or oven for processing.
  • Two-part tooling design used for creating rubber seals or gaskets
  • Rubber gasket is inserted in a vertical orientation, followed by the top tool placement, before being transferred to the press.
  • Handles tooling up to 160kg, with higher capacities available on request.
  • Lift Height up to 1850mm (bespoke options up to 3000mm)
  • IP Rating IP30C or IP65
  • Standard or Wide Straddle Legs
  • Optional Position control
  • Wheels - Non-marking anti-static
  • Front Wheels - Stainless Steel 50mm / 85mm pallet wheels (rocking pallet or swivel castor options)
  • Rear Wheels - Stainless Steel 125mm Swivel castors with safety foot guard and brake system 'stop-fix'
  • Interchangeable attachments
  • Industries include Food, Drinks, Pharmaceutical, Medical, FMCG, Labelling & Printing, Automotive, Aerospace, Marine, Industrial & Warehouse
