Lifting Stainless Vessels to Height for emptying contents into a Hopper

Dual Column Lifter for Extended Height Lifting in a Pharmaceutical Clean Room

Packline Ltd developed a bespoke lifting solution for a client in the pharmaceutical sector, enabling the safe and efficient lifting of stainless-steel vessels to an extended height of up to 2500mm.

Challenge
The client required a lifting system that could:

Navigate through a low-clearance doorway without sacrificing lift height.
Lift and rotate stainless-steel vessels containing pharmaceutical ingredients.
Operate seamlessly within a clean room environment.

Solution

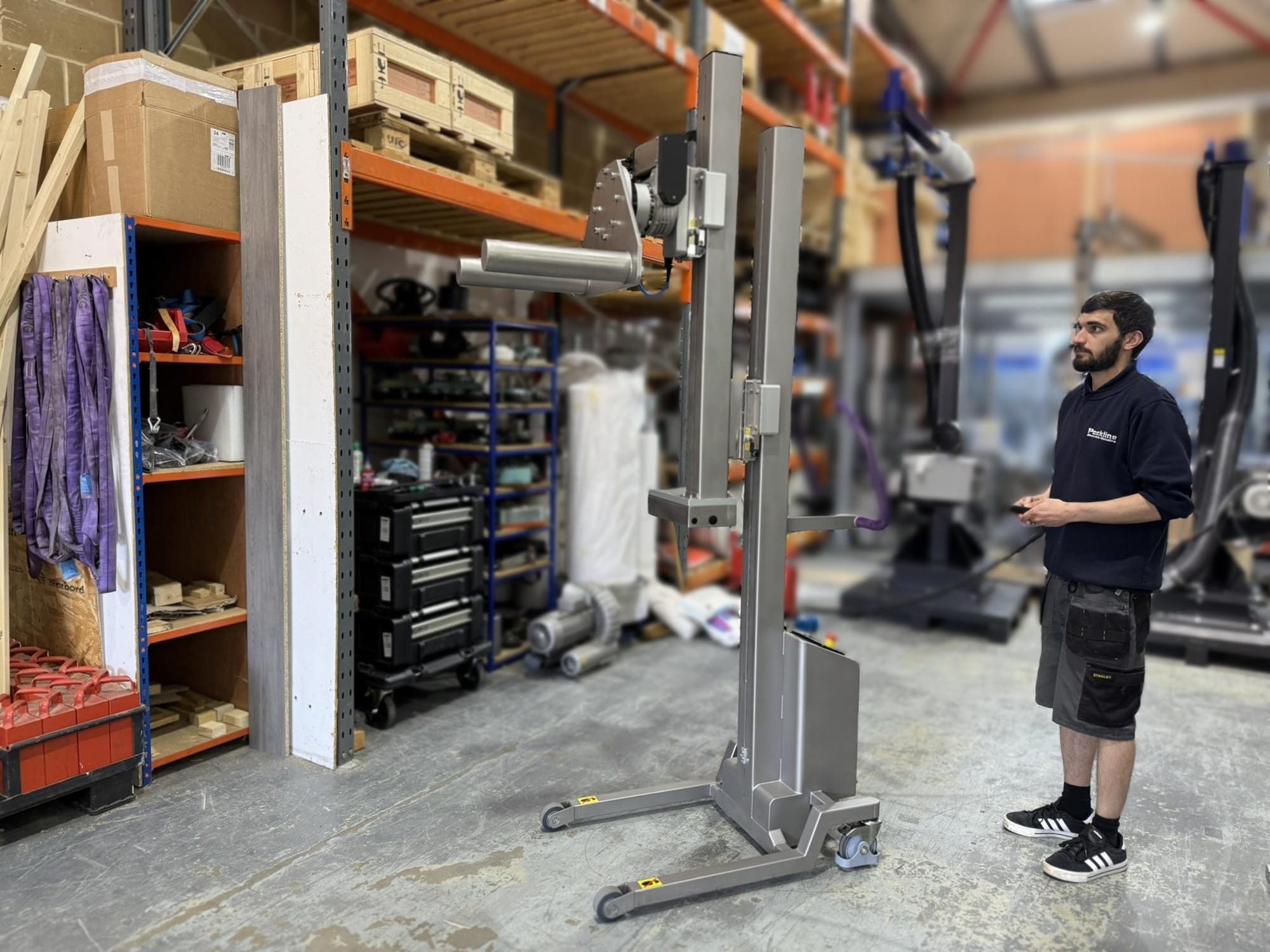

Packline designed and manufactured a Dual Column Lifter equipped with an interlocking lifting attachment. This mechanism securely grips the vessel, enabling both lifting and precise 360° rotation, allowing the contents to be safely emptied into a hopper.

The dual-column frame design allows the lifter and vessel to pass through the low doorway while retaining the extended lift height capability necessary for the application.

Technical Specifications

Material: High-grade stainless steel (clean room compliant)
Reel Core Sizes: 3” (76mm) or 6” (152mm) as standard
Lift Height: Up to 2500mm
Maximum Load Capacity: 200kg
Rotation: 360°

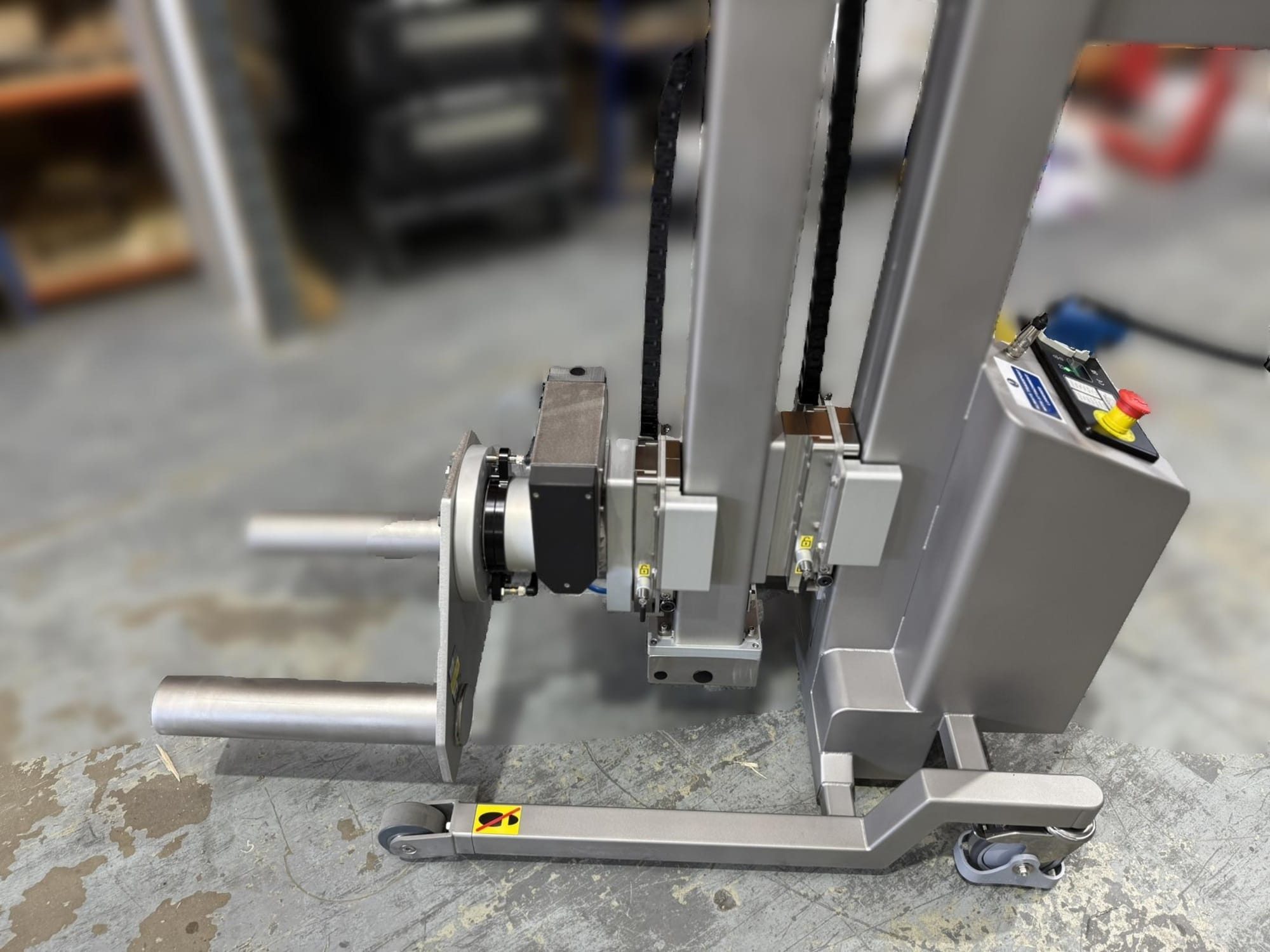

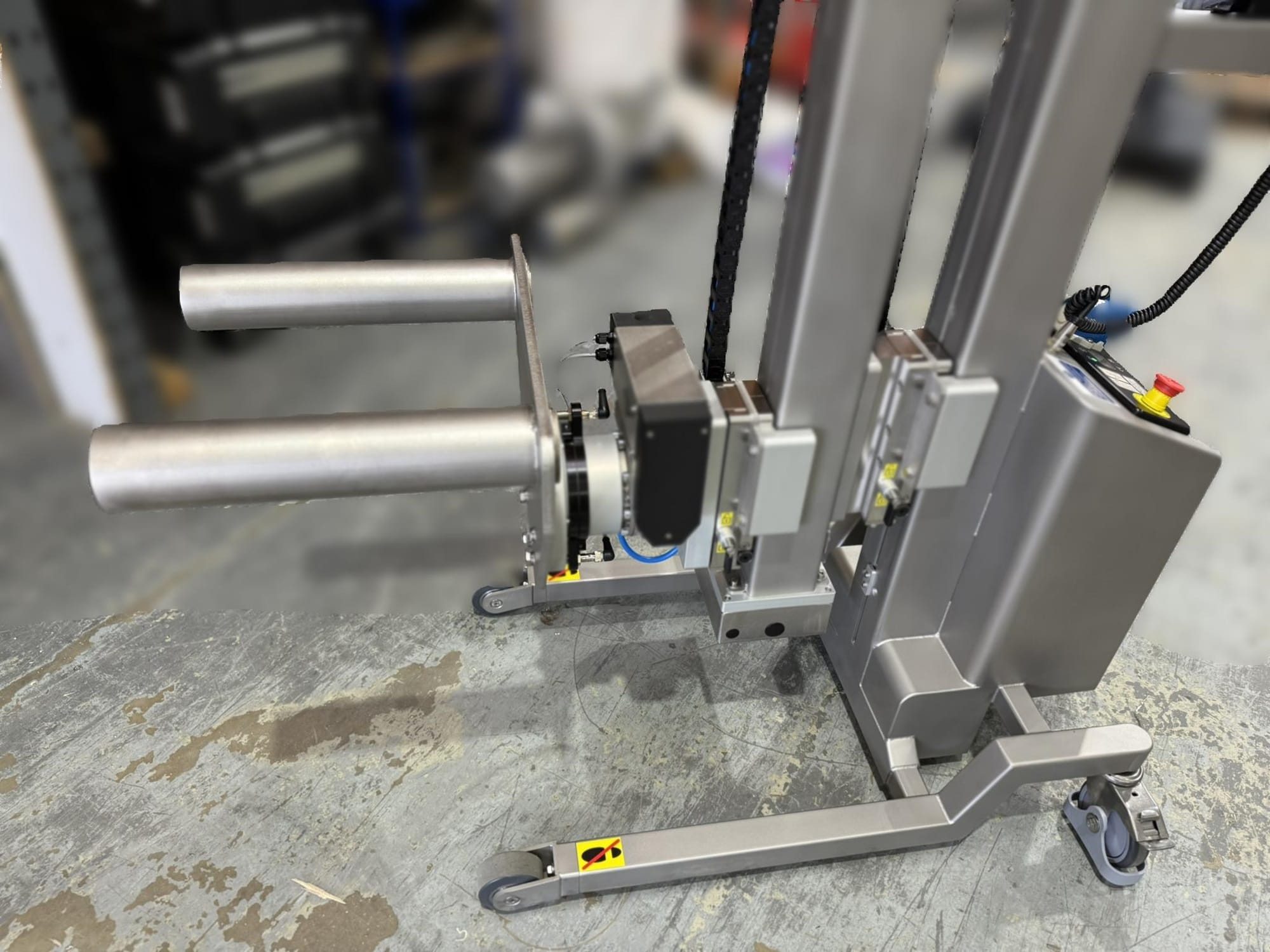

Attachment Type: Twin spindle attachment (custom attachments available)
Attachments: Fully interchangeable

Benefits

Tailored, fully bespoke design service to meet specific customer requirements
Suitable for pharmaceutical and clean room environments
Versatile lifting solution for low headroom areas while maintaining full lift height

This custom-designed Dual Column Lifter met the pharmaceutical client’s strict requirements, providing a safe, reliable, and versatile lifting solution for their clean room operation.
